Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the windshield wiper element (3) completely through the windshield wiper blade (1).
  2. Bend down the wiper tabs (2) to secure the wiper element in position.

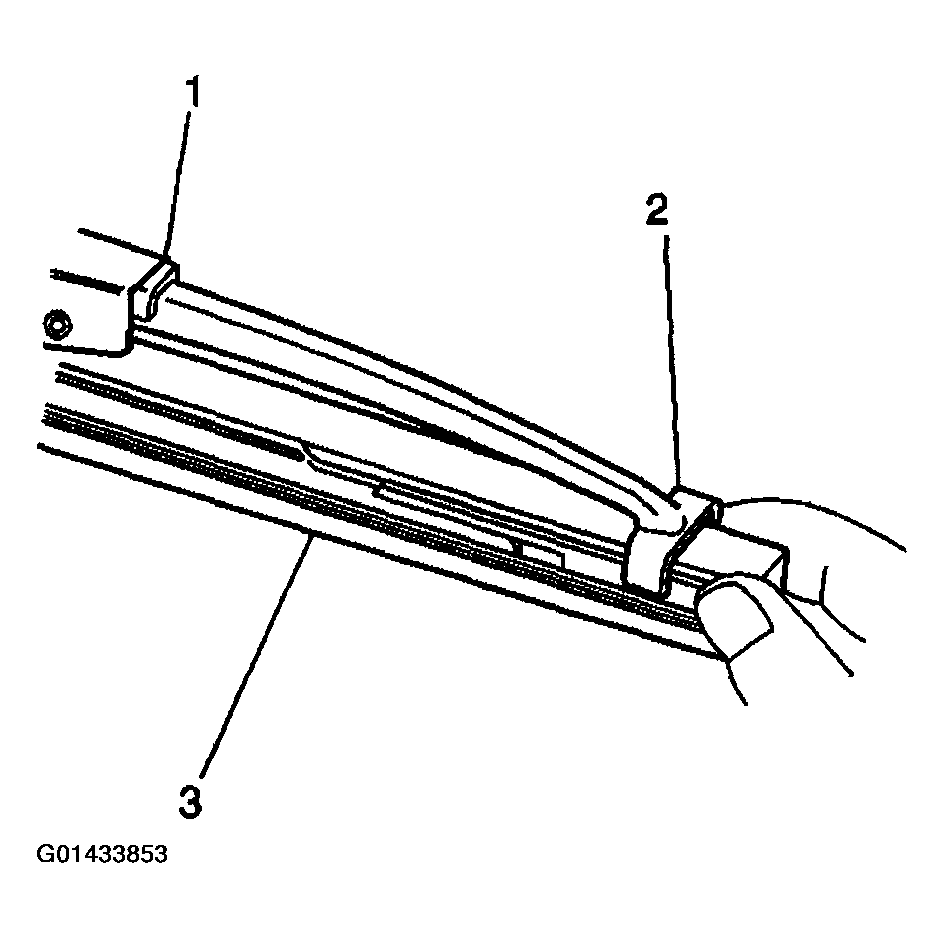

    Fig 1: Installing Wiper Element To Windshield Wiper Blade
    G01433853Courtesy of GENERAL MOTORS CORP.
