Ambient Air Temperature Sensor Resistance Specifications

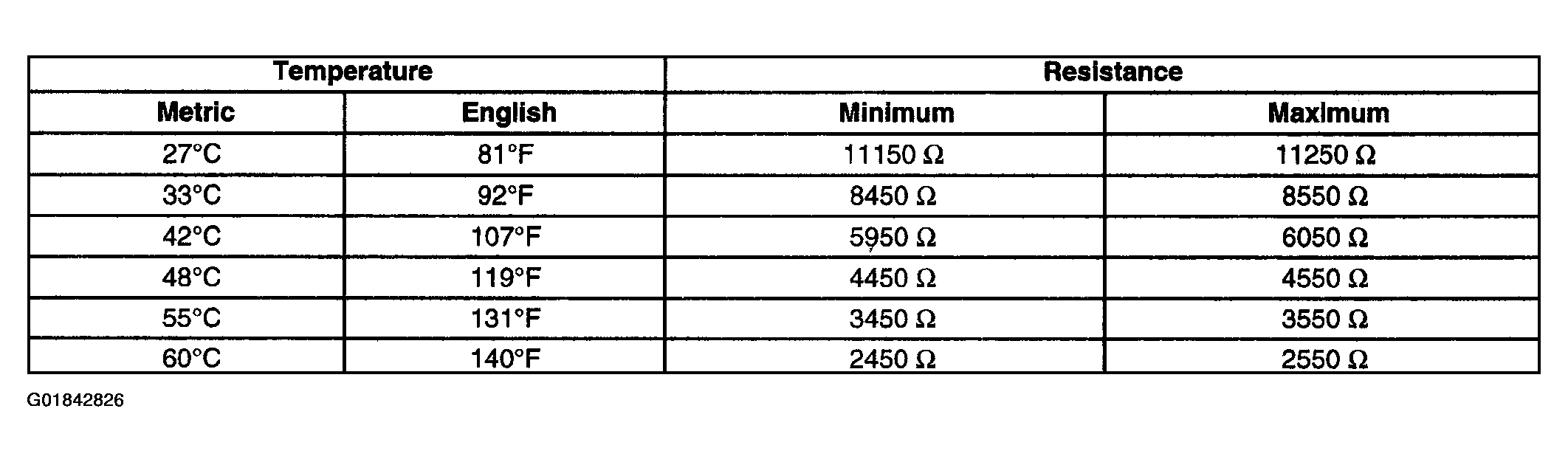

Fig 1: Ambient Air Temperature Sensor Resistance

G01842826

Courtesy of GENERAL MOTORS CORP.
