Heated Seats Schematics

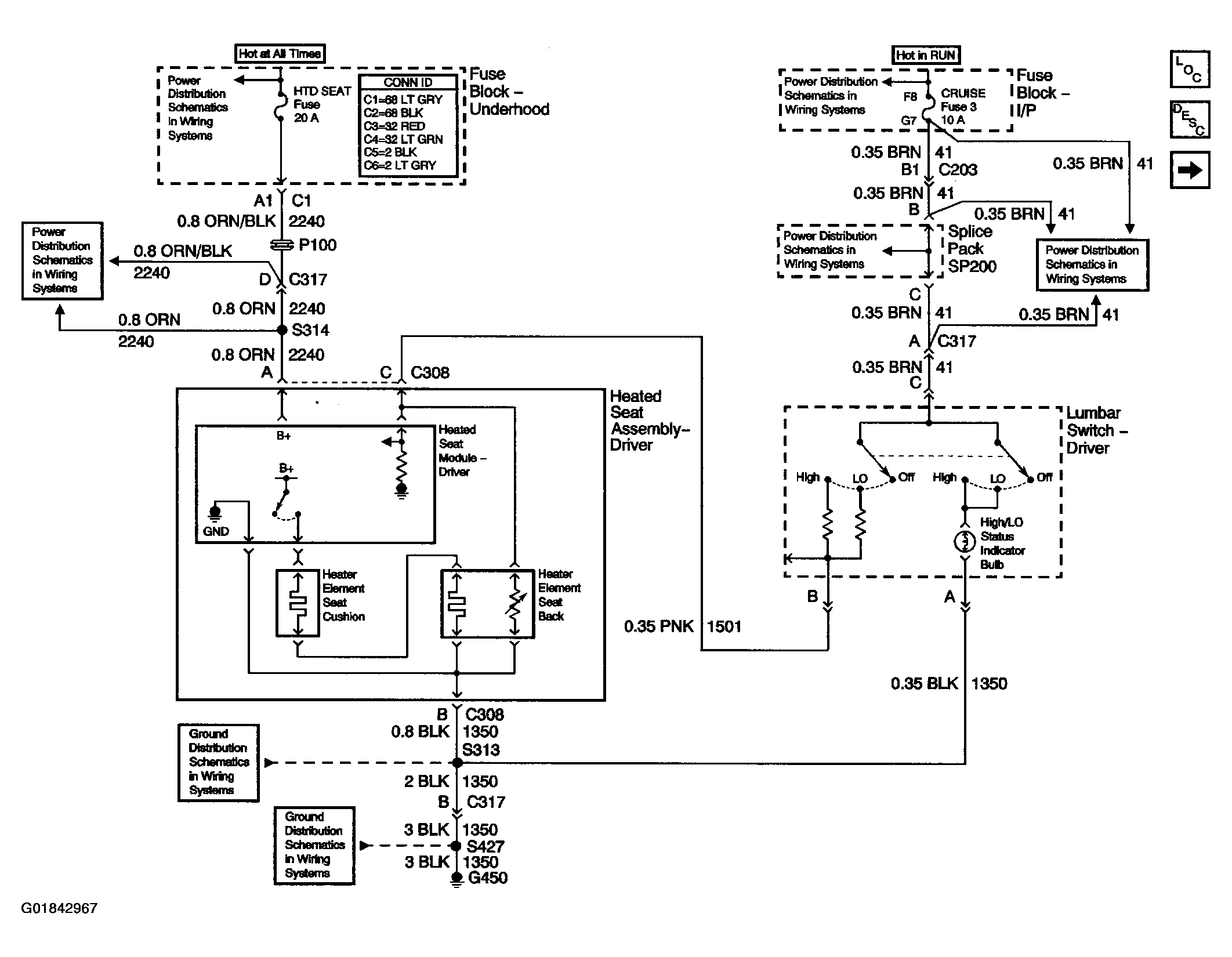

Fig 1: Heated Seats Schematics (Left Heated Seat)

G01842967

Courtesy of GENERAL MOTORS CORP.

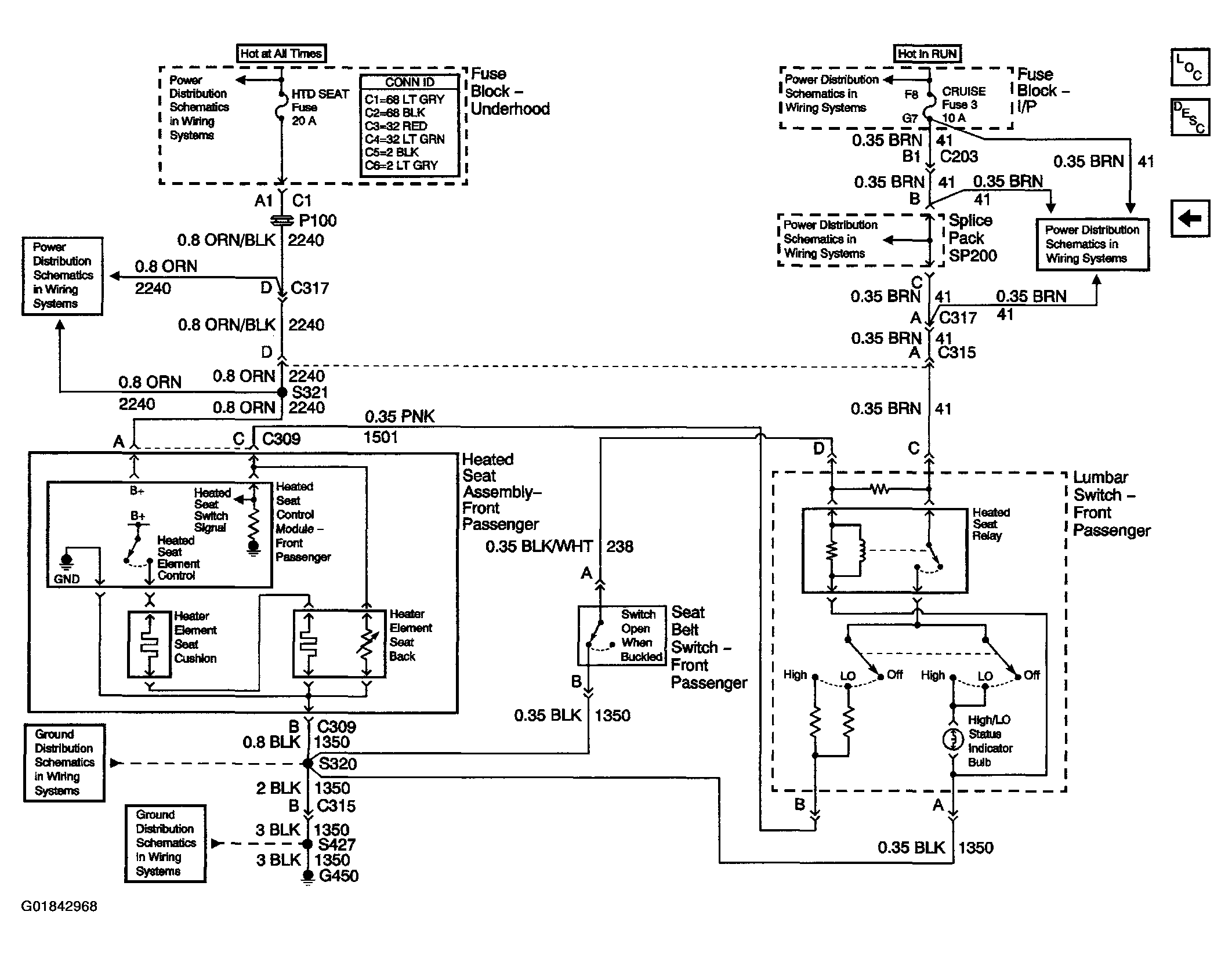

Fig 2: Heated Seats Schematics (Right Heated Seat)

G01842968

Courtesy of GENERAL MOTORS CORP.
