Installation Procedure

Install the cable (3) through the hole (2) in the seat adjuster rail.
Hook the cable (3) into the rail and clip the cable to the rail (1).

Fig 1: Locating Seat Back Release Cable At Adjuster Rail
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.

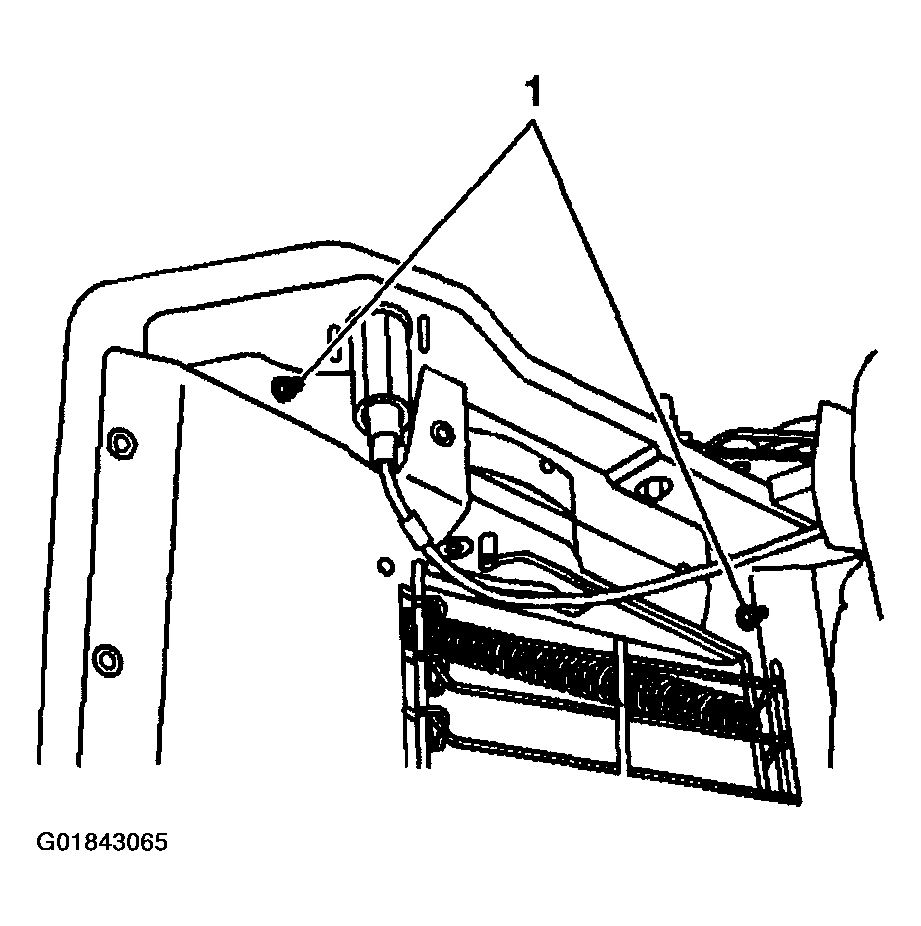

Install the seat adjuster rail to the seat frame with 2 nuts (1).
Tighten

Tighten the bolts to 24 N.m (18 lb ft)

Fig 2: Locating Seat Adjuster Rail-To-Frame Nuts
Courtesy of GENERAL MOTORS CORP.
Install the cable (3) to the seat back pivot assembly.
Install the cable (3) to the pivot assembly bracket by tightening cable nut (2).

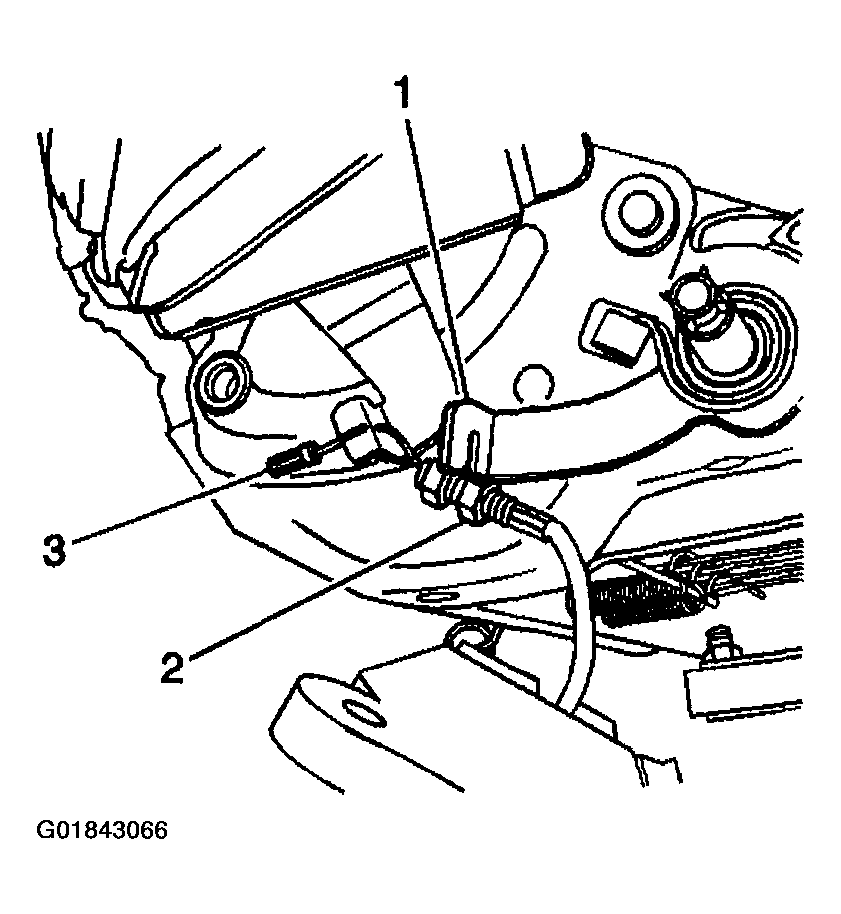

Fig 3: Locating Seat Back Release Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Install the cable cover bracket (2) to the seat back pivot assembly.

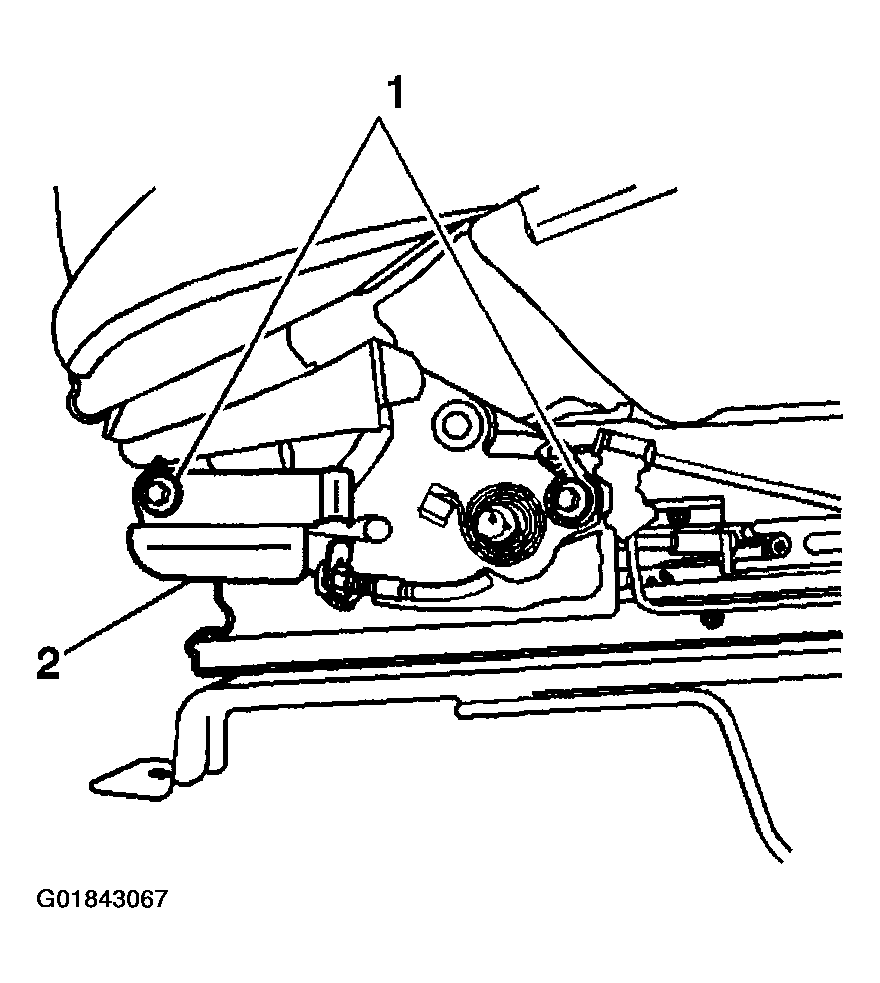

Fig 4: Locating Seat Back Pivot Assembly Components
Courtesy of GENERAL MOTORS CORP.
Install the 2 bolts (1).
Tighten

Tighten the bolts to 24 N.m (18 lb ft)
Pull the pad and cover back over the seat frame.
Install the pad and cover to seat with J-strips (1).

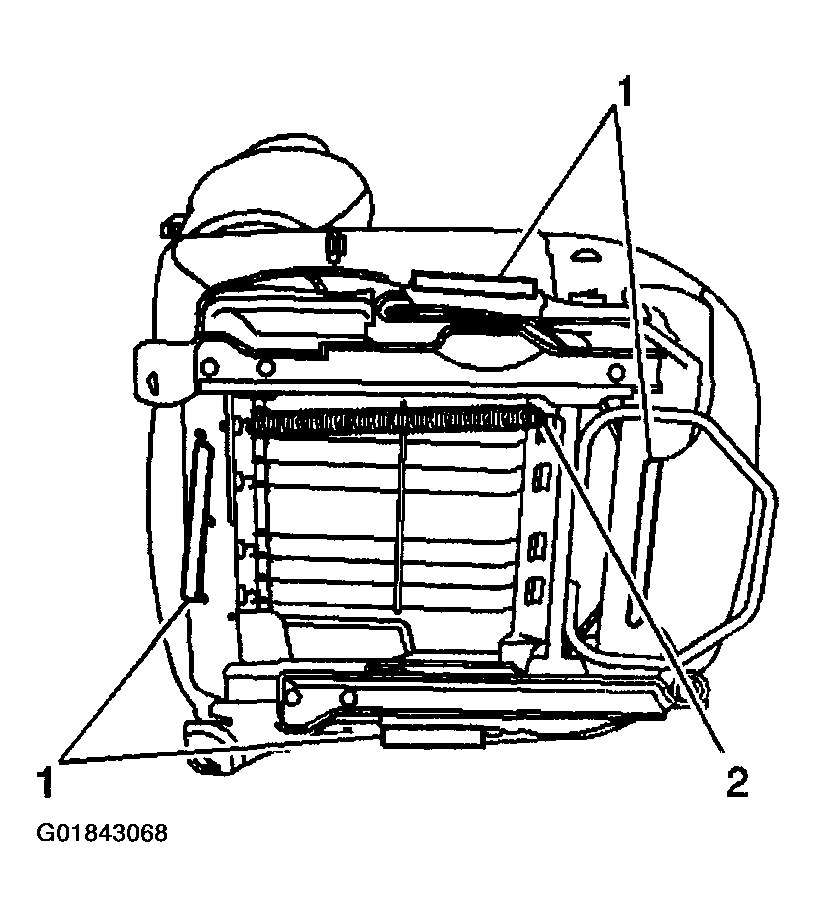

Fig 5: Locating Seat Cover-To-Frame J-Strips & Seat Adjuster Spring
Courtesy of GENERAL MOTORS CORP.
Install the spring (2) to the seat adjuster rail.
Install the seat back recliner handle.
Install seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
