Seat Motors

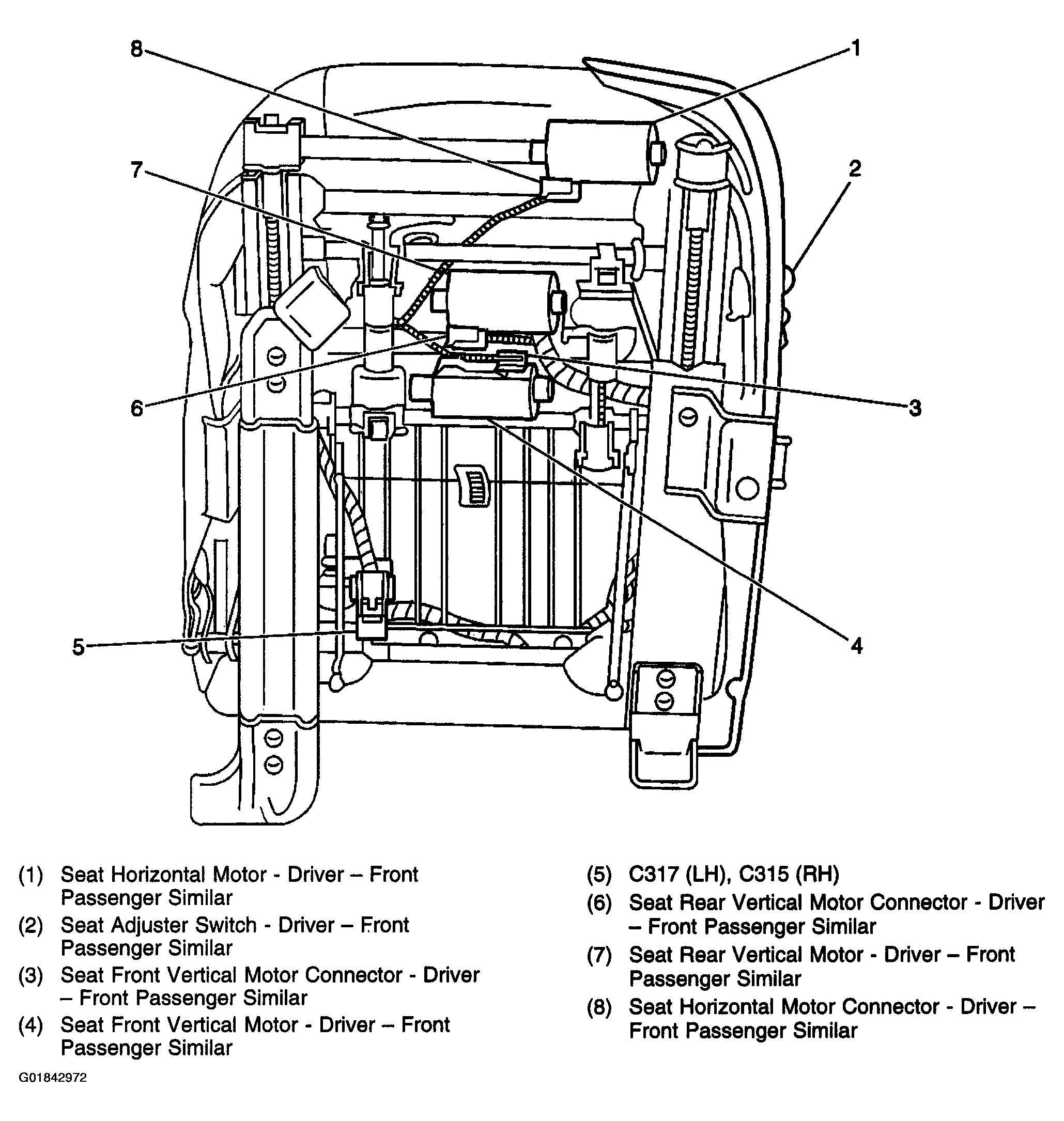

Fig 1: Seat Motors 8-Way (w/o Memory)

G01842972

Courtesy of GENERAL MOTORS CORP.

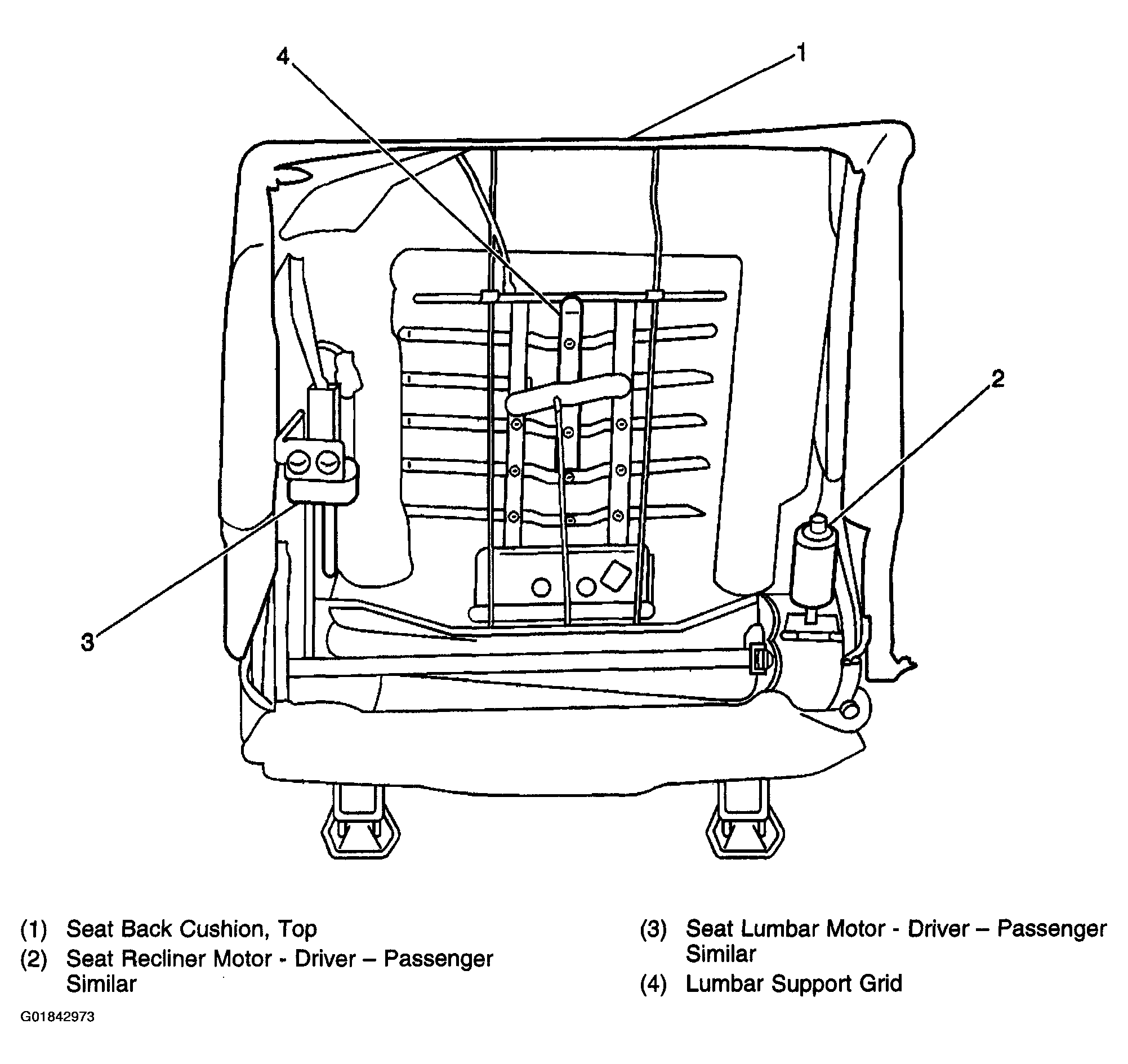

Fig 2: Seat Lumbar Motor & Seat Recliner Motor 8-Way (w/o Memory)

G01842973

Courtesy of GENERAL MOTORS CORP.
