Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the negative battery cable.
  2. Use a flat-bladed tool in order to pry the switch away from the instrument panel.

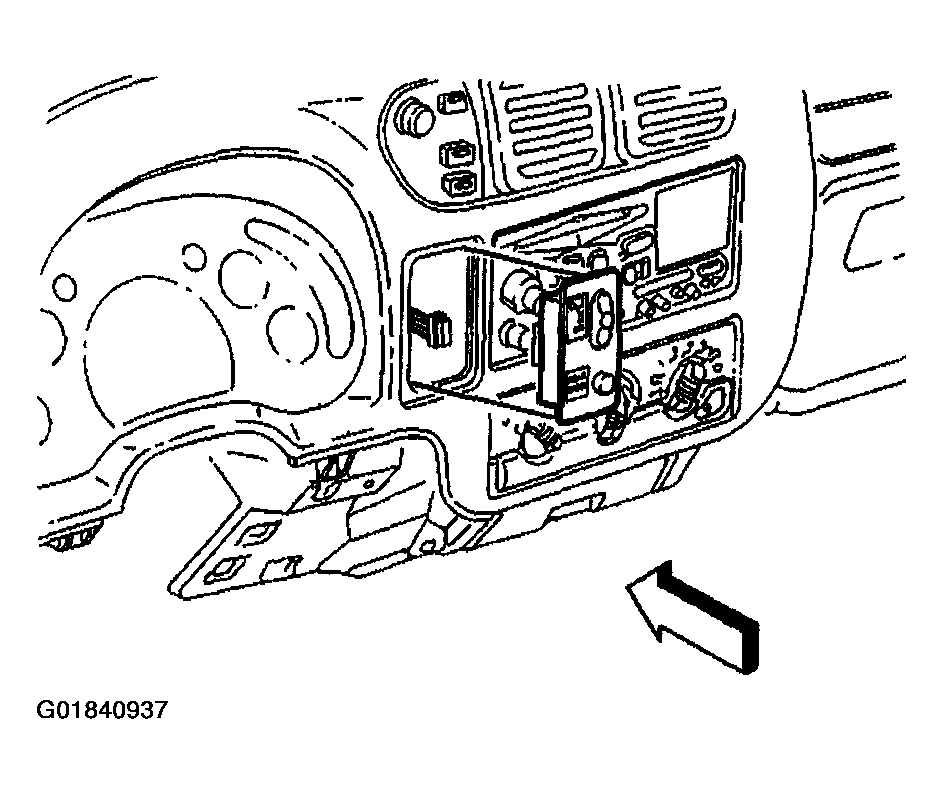

    Fig 1: Locating Wipers/Washer Switch
    G01840937Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors as necessary.
