Installation Procedure

  1. Press bulb into the instrument panel compartment lamp switch socket.
  2. Connect the electrical connector to the instrument panel compartment lamp switch.

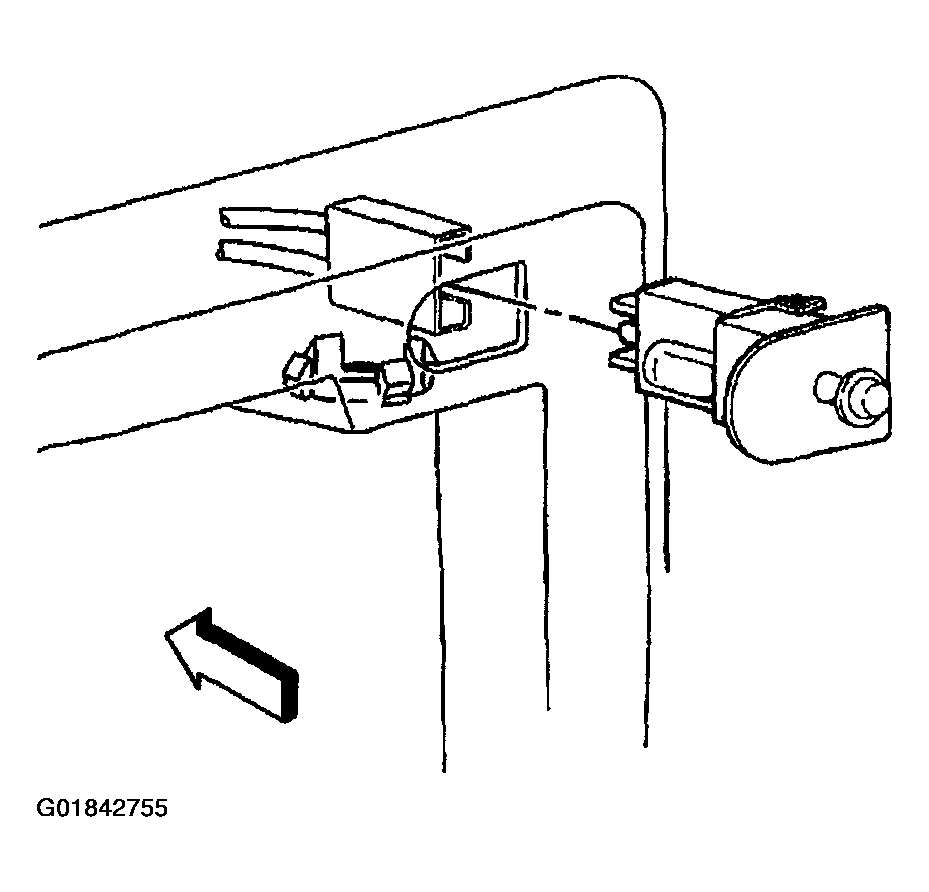

    Fig 1: Identifying IP Compartment Lamp & Switch Assembly
    G01842755Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument panel compartment lamp switch.

    Press in until retainers are fully seated.

  4. Install the instrument panel door. Refer to DOOR REPLACEMENT - IP STORAGE COMPARTMENT DOOR in INSTRUMENT PANEL, GAGES & CONSOLE article.
