Installation Procedure

  1. Install the bulb to the socket.
  2. Carefully snap the lens into position.

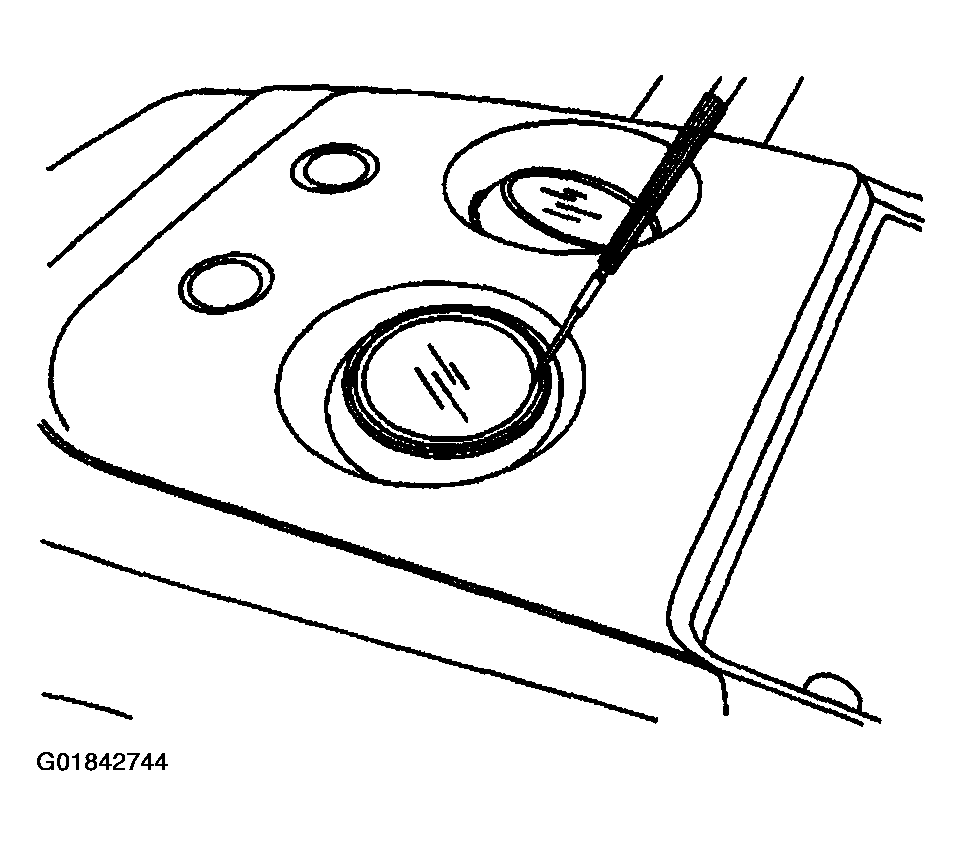

    Fig 1: Locating Bulb Housing Lens
    G01842744Courtesy of GENERAL MOTORS CORP.
