License Lamp

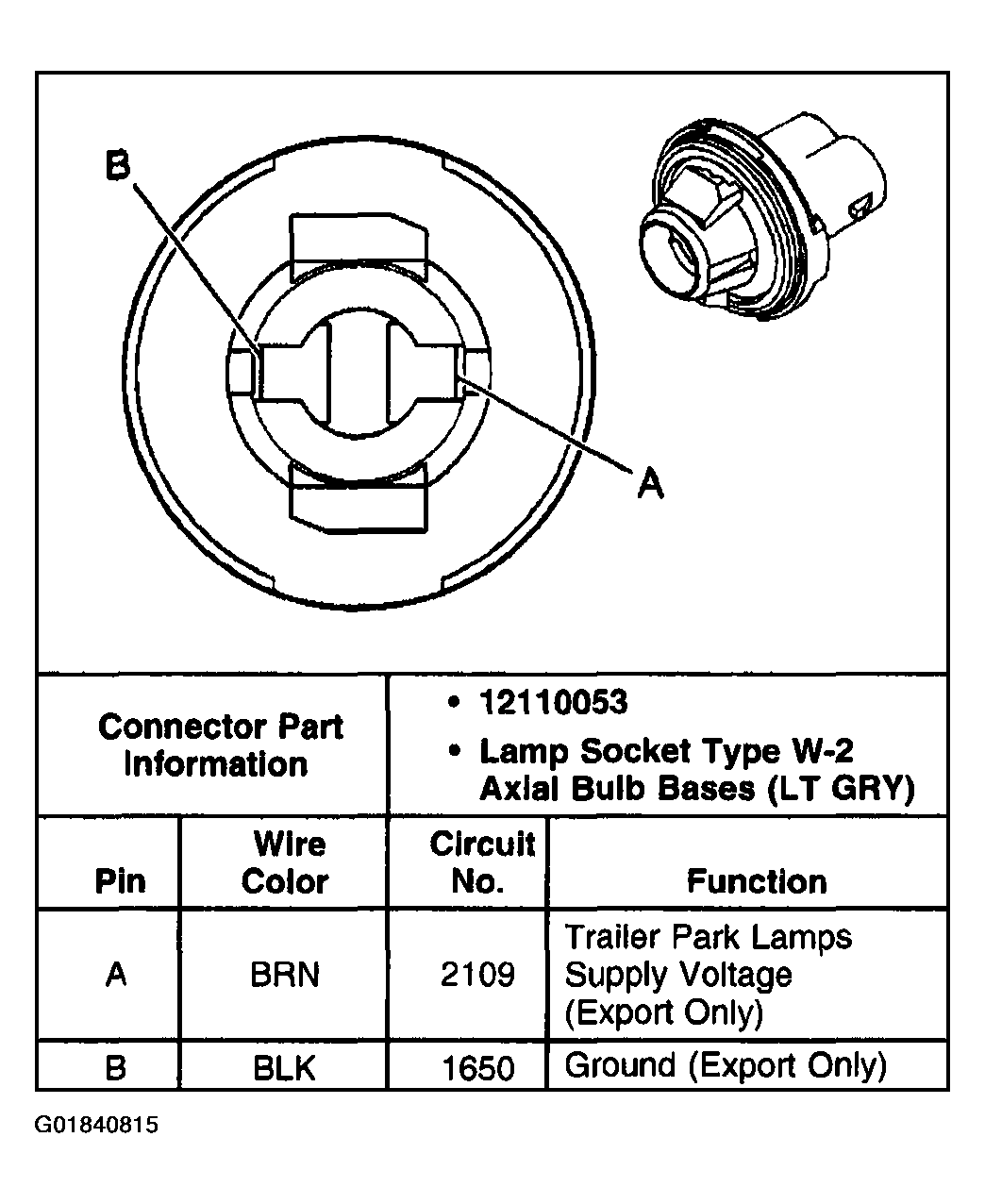

Fig 1: License Lamp - Center - Export Only
G01840815Courtesy of GENERAL MOTORS CORP.

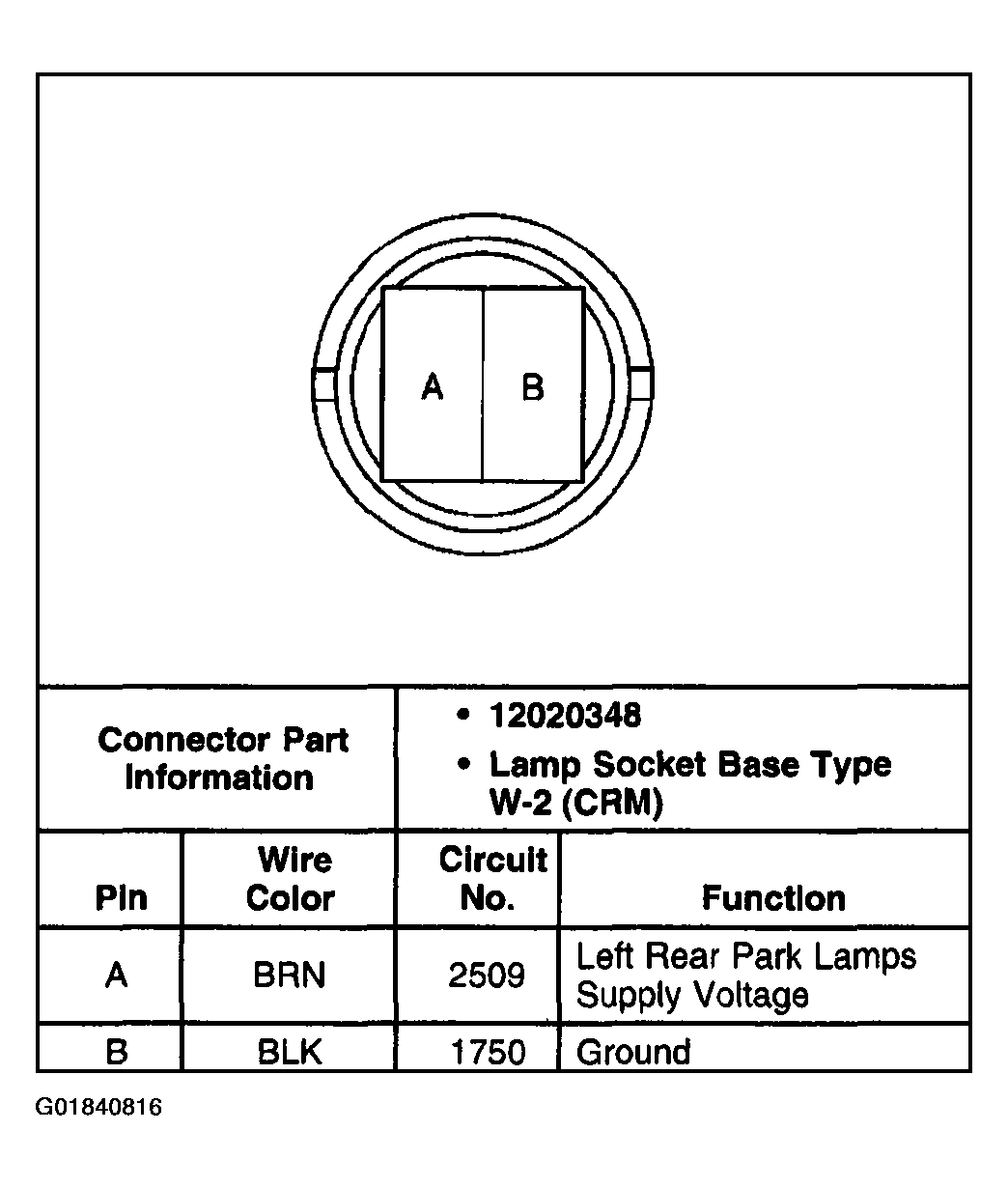

Fig 2: License Lamp - Left Rear - Pickup w/o Rear Step Bumper
G01840816Courtesy of GENERAL MOTORS CORP.

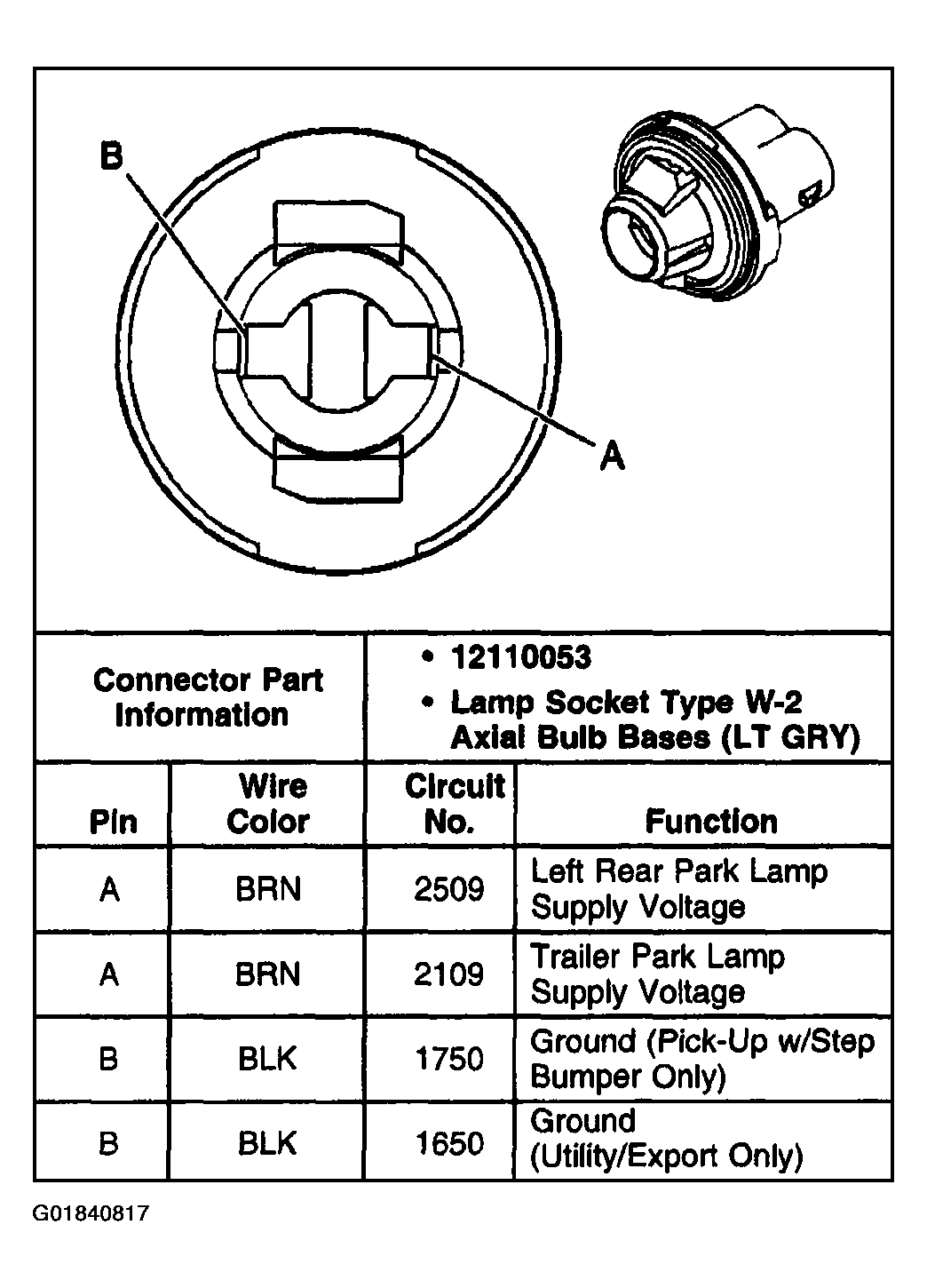

Fig 3: License Lamp - Left Rear - Utility, Export & Pickup w/ Step Bumper
G01840817Courtesy of GENERAL MOTORS CORP.

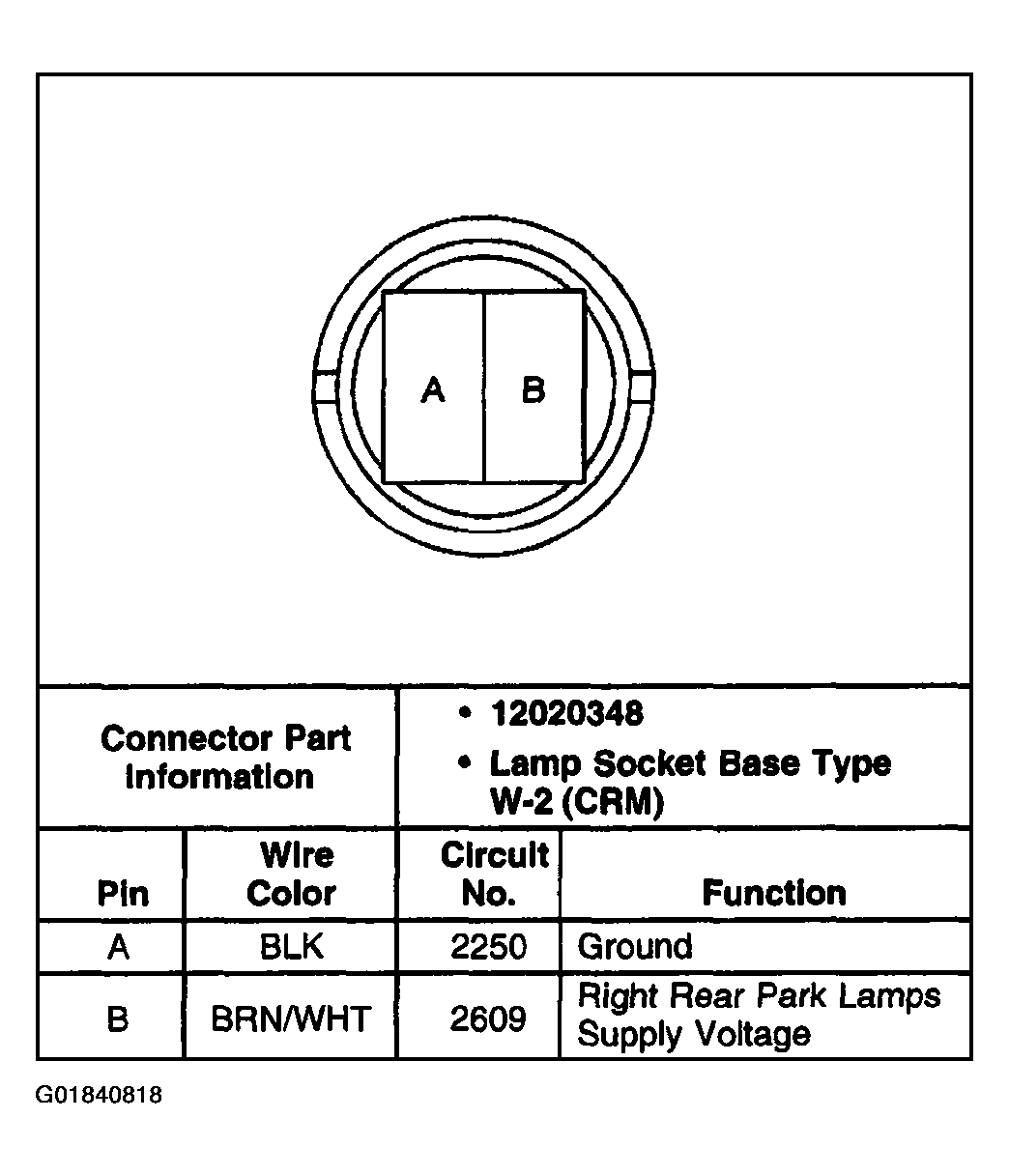

Fig 4: License Lamp - Right Rear - Pickup w/o Rear Step Bumper
G01840818Courtesy of GENERAL MOTORS CORP.

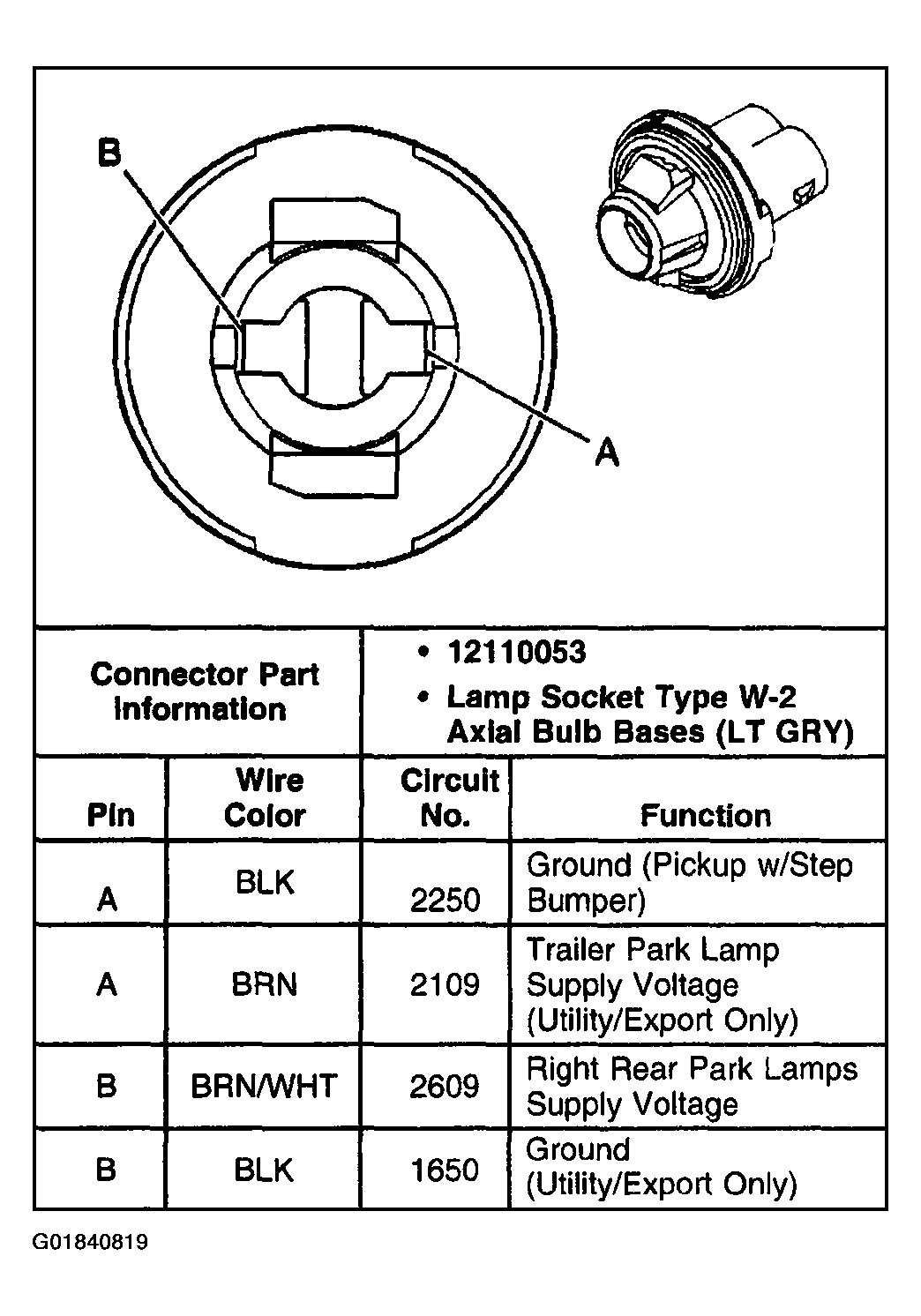

Fig 5: License Lamp - Right Rear - Utility, Export & Pickup w/ Step Bumper
G01840819Courtesy of GENERAL MOTORS CORP.
