Inside Rear View Mirror

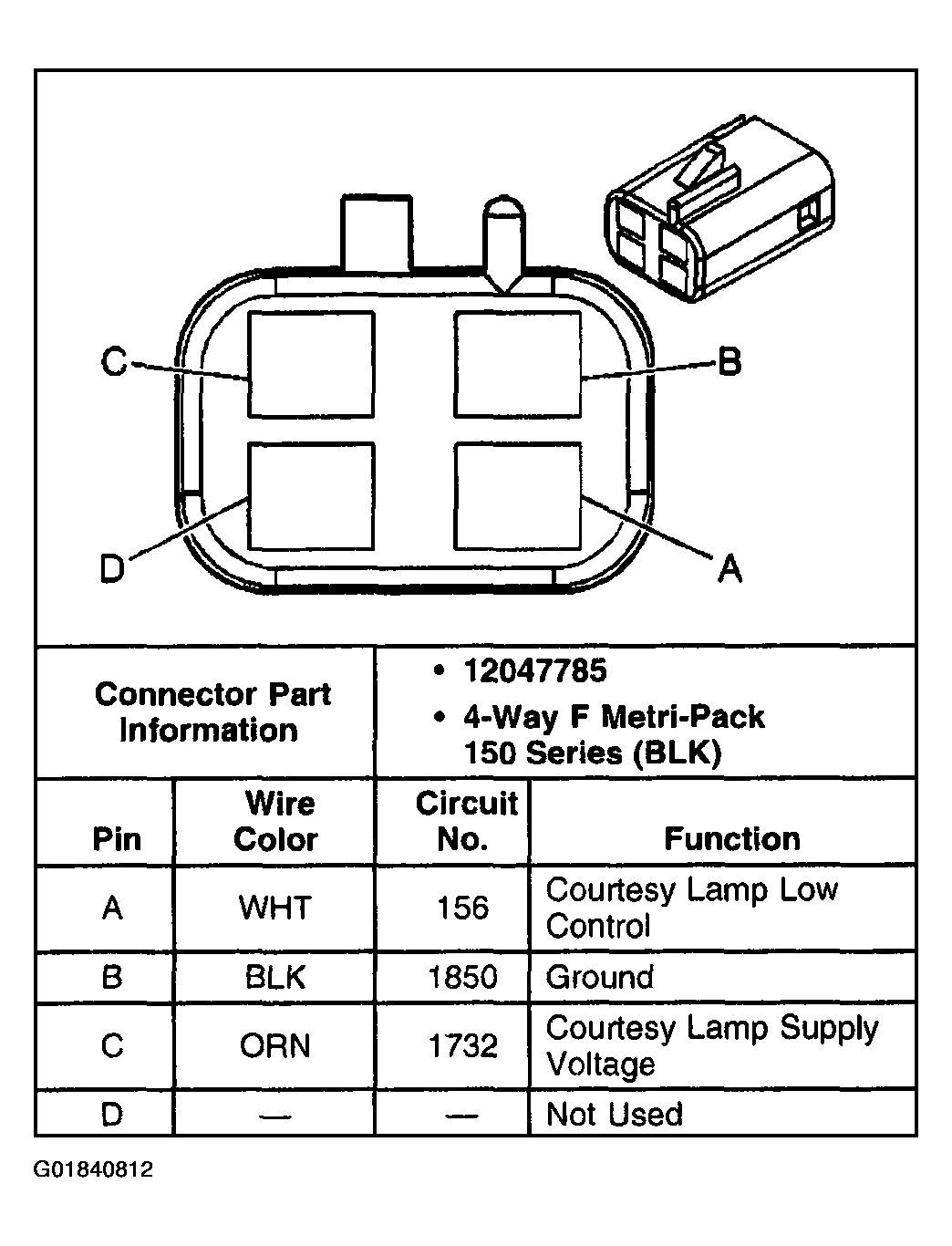

Fig 1: Inside Rear View Mirror - w/ Reading Lamps
G01840812Courtesy of GENERAL MOTORS CORP.

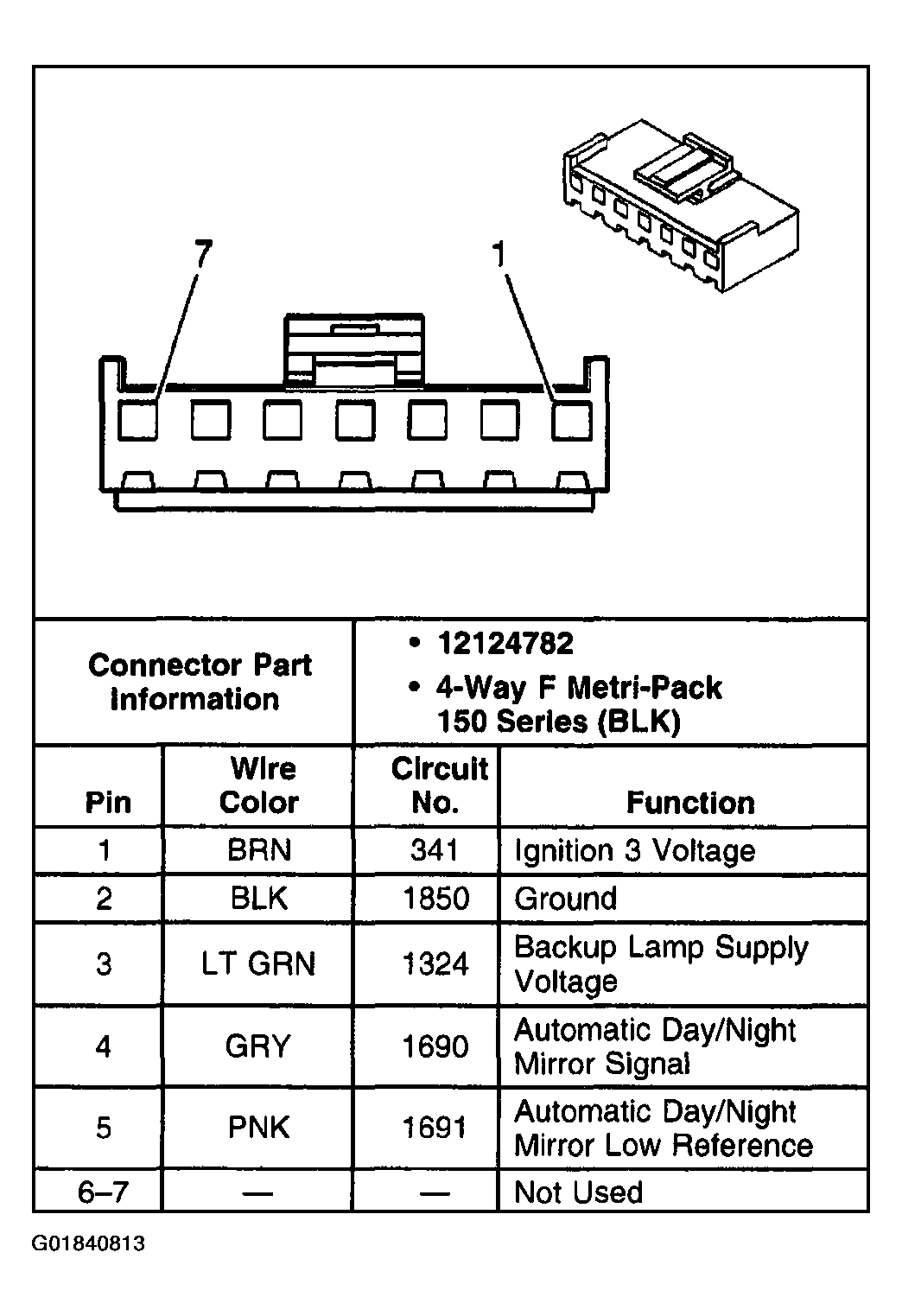

Fig 2: Inside Rear View Mirror - w/ Light Sensitive & Reading Lamps
G01840813Courtesy of GENERAL MOTORS CORP.
