Headlamp Switch

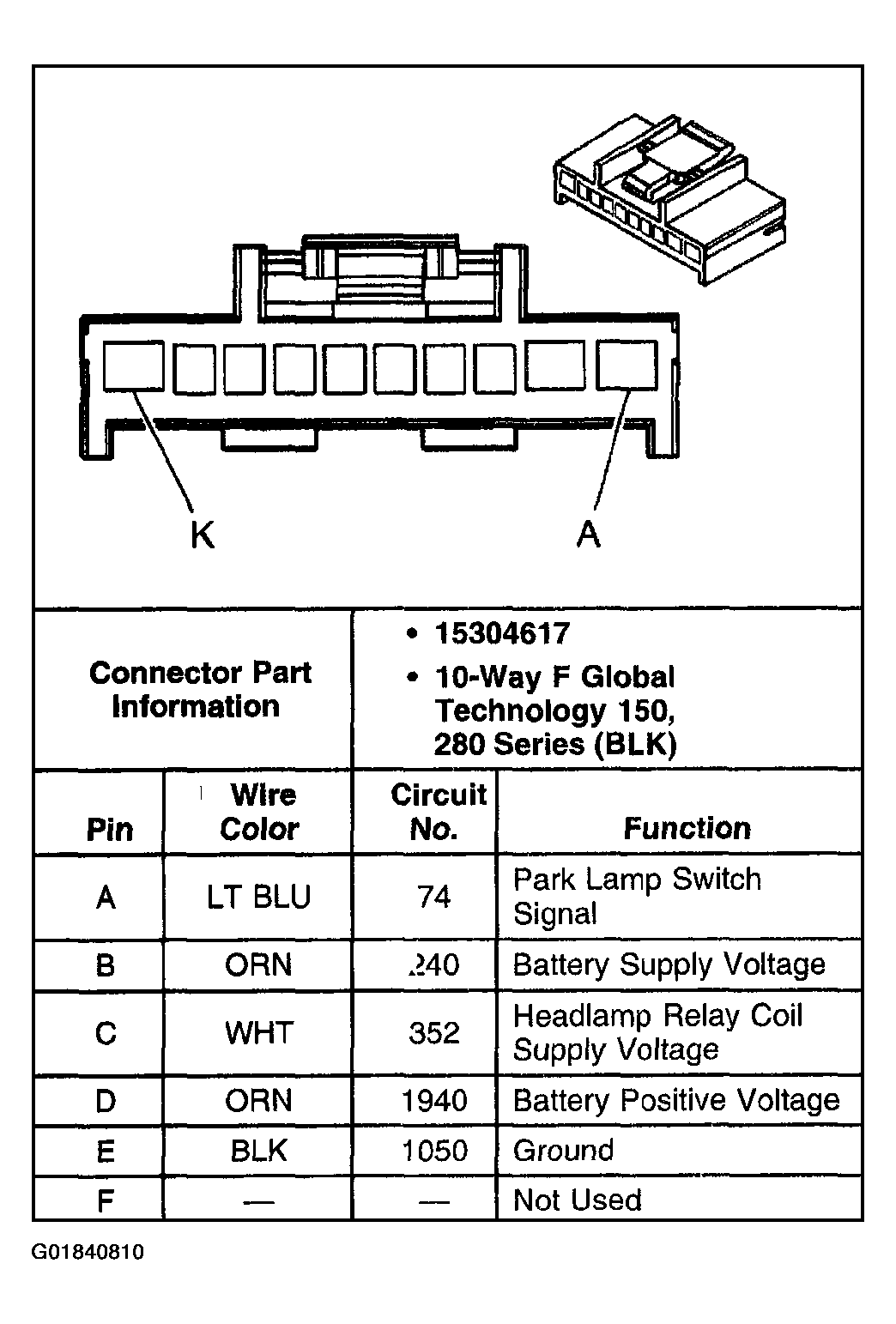

Fig 1: Headlamp Switch (1 Of 2)

G01840810

Courtesy of GENERAL MOTORS CORP.

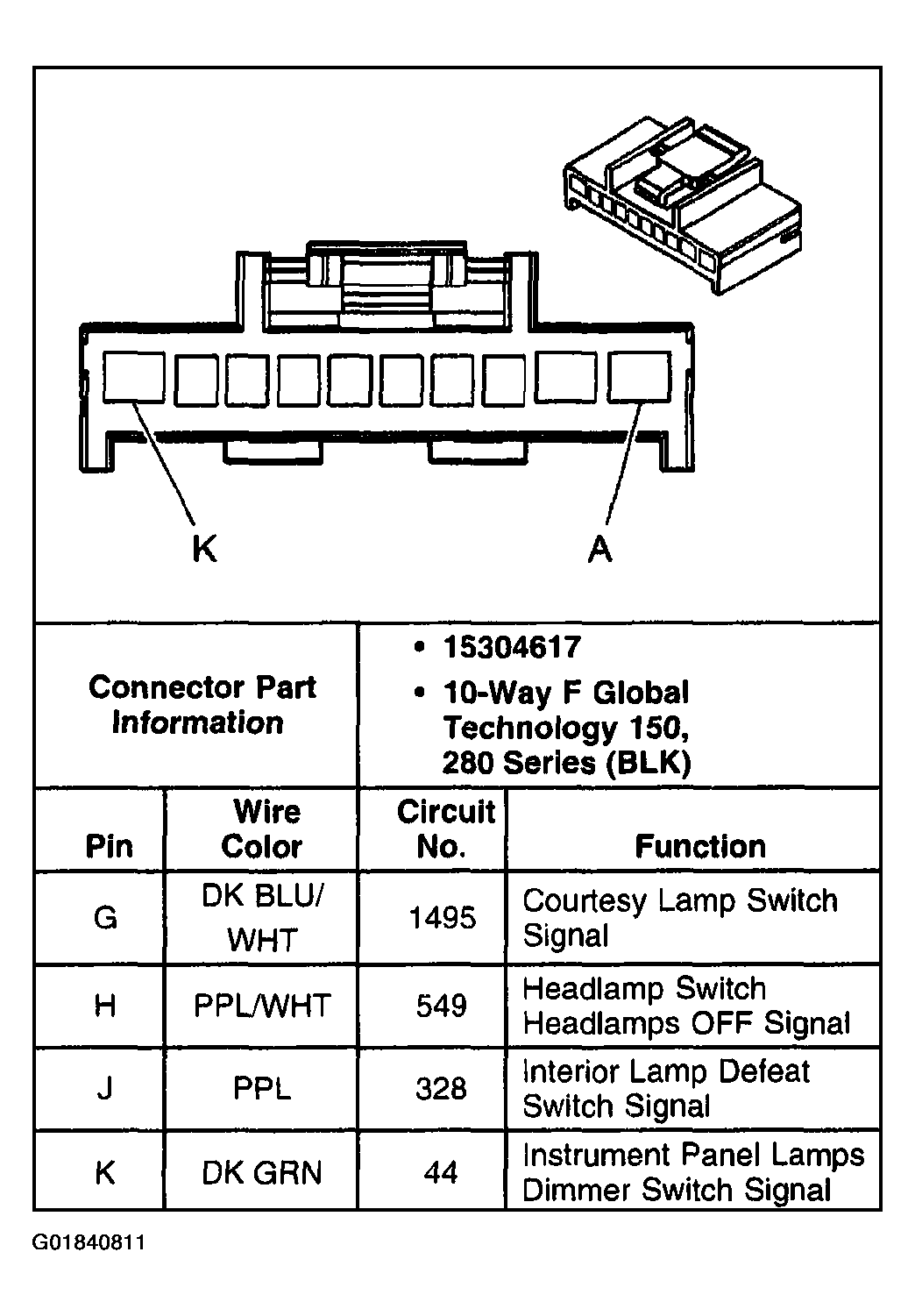

Fig 2: Headlamp Switch (2 Of 2)

G01840811

Courtesy of GENERAL MOTORS CORP.
