Door Handle Switch

Fig 1: Door Handle Switch - Left
G01840794Courtesy of GENERAL MOTORS CORP.

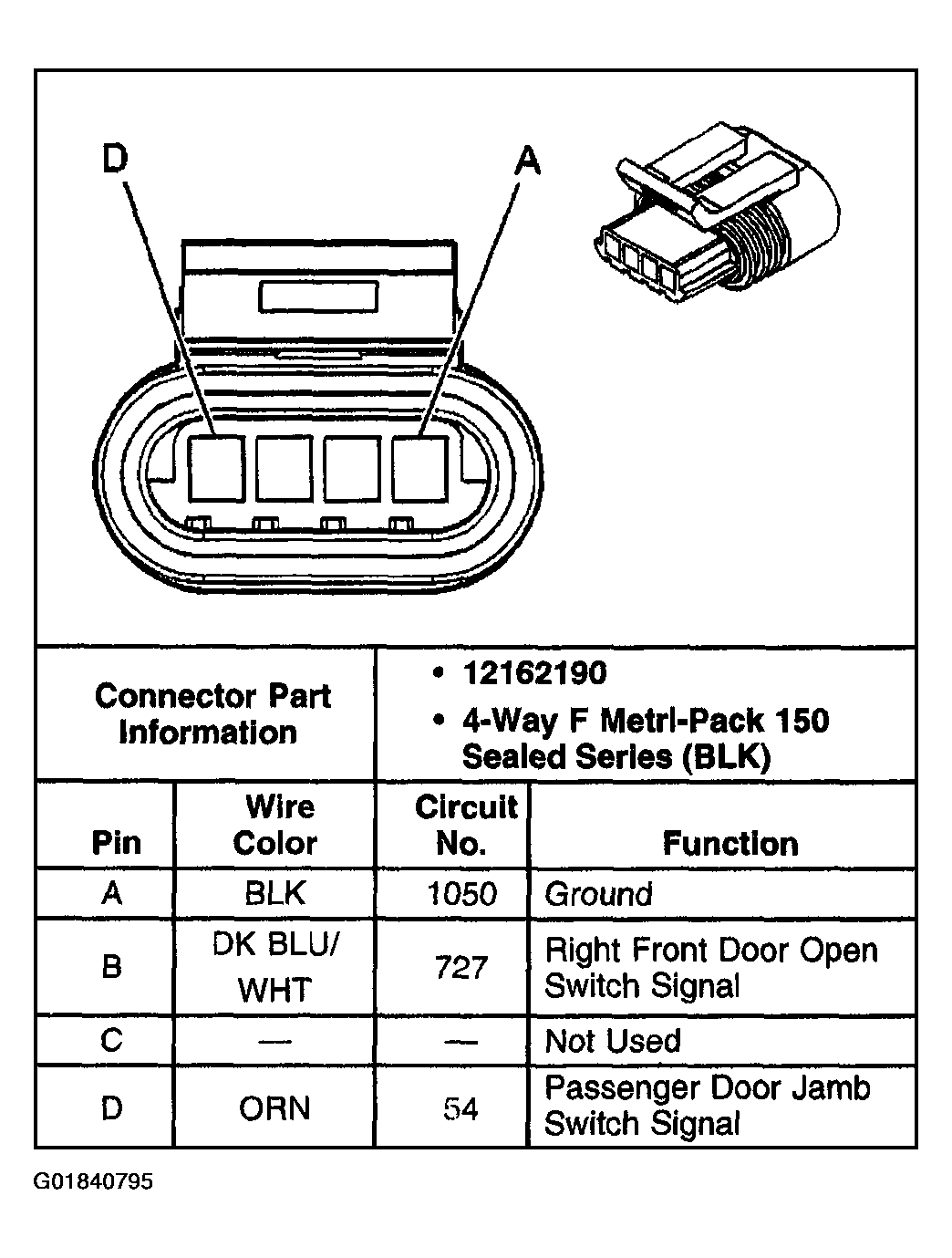

Fig 2: Door Handle Switch - Right - w/ Keyless Entry
G01840795Courtesy of GENERAL MOTORS CORP.

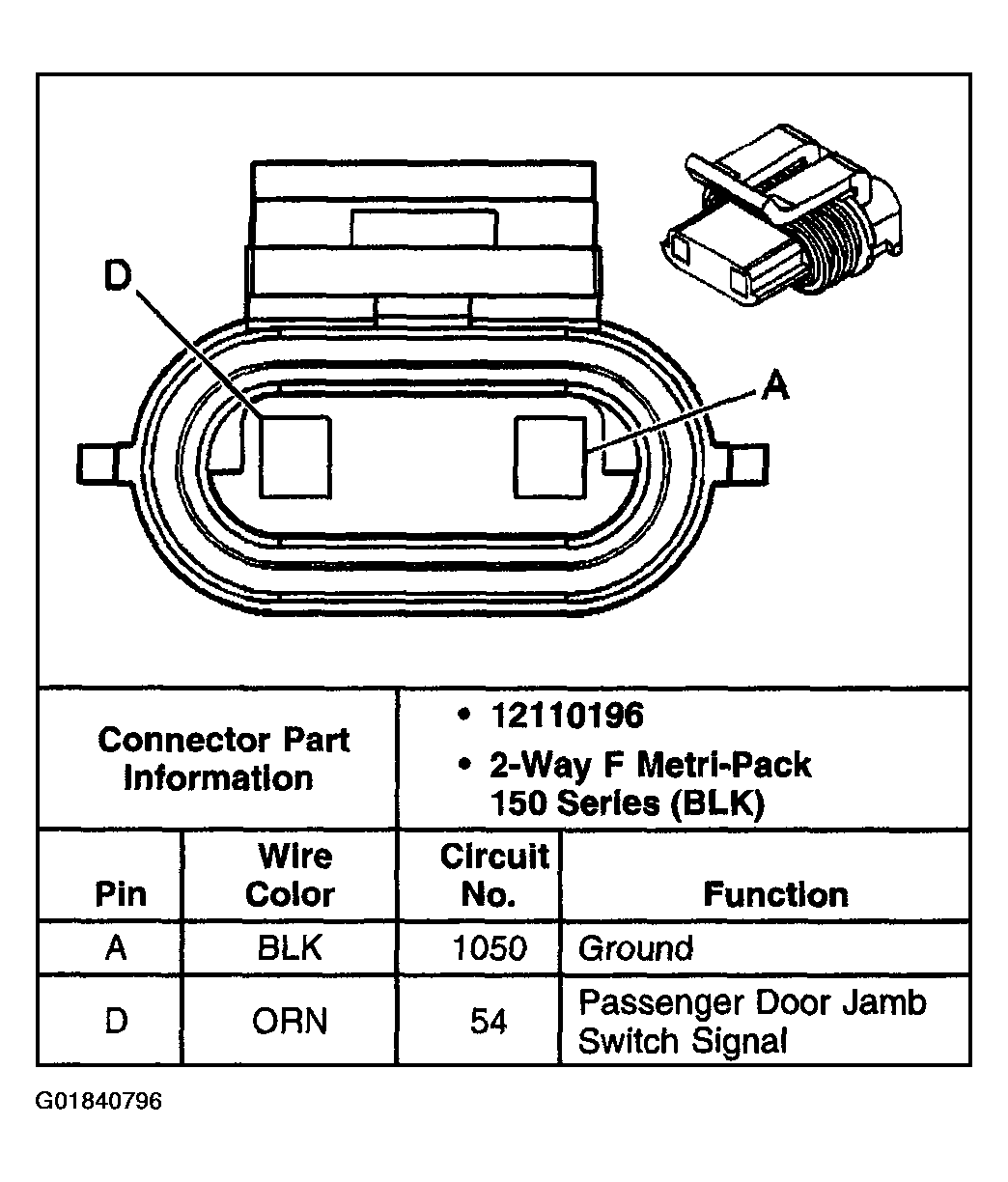

Fig 3: Door Handle Switch - Right - w/o Keyless Entry
G01840796Courtesy of GENERAL MOTORS CORP.
