Remote Playback Device Connector End Views

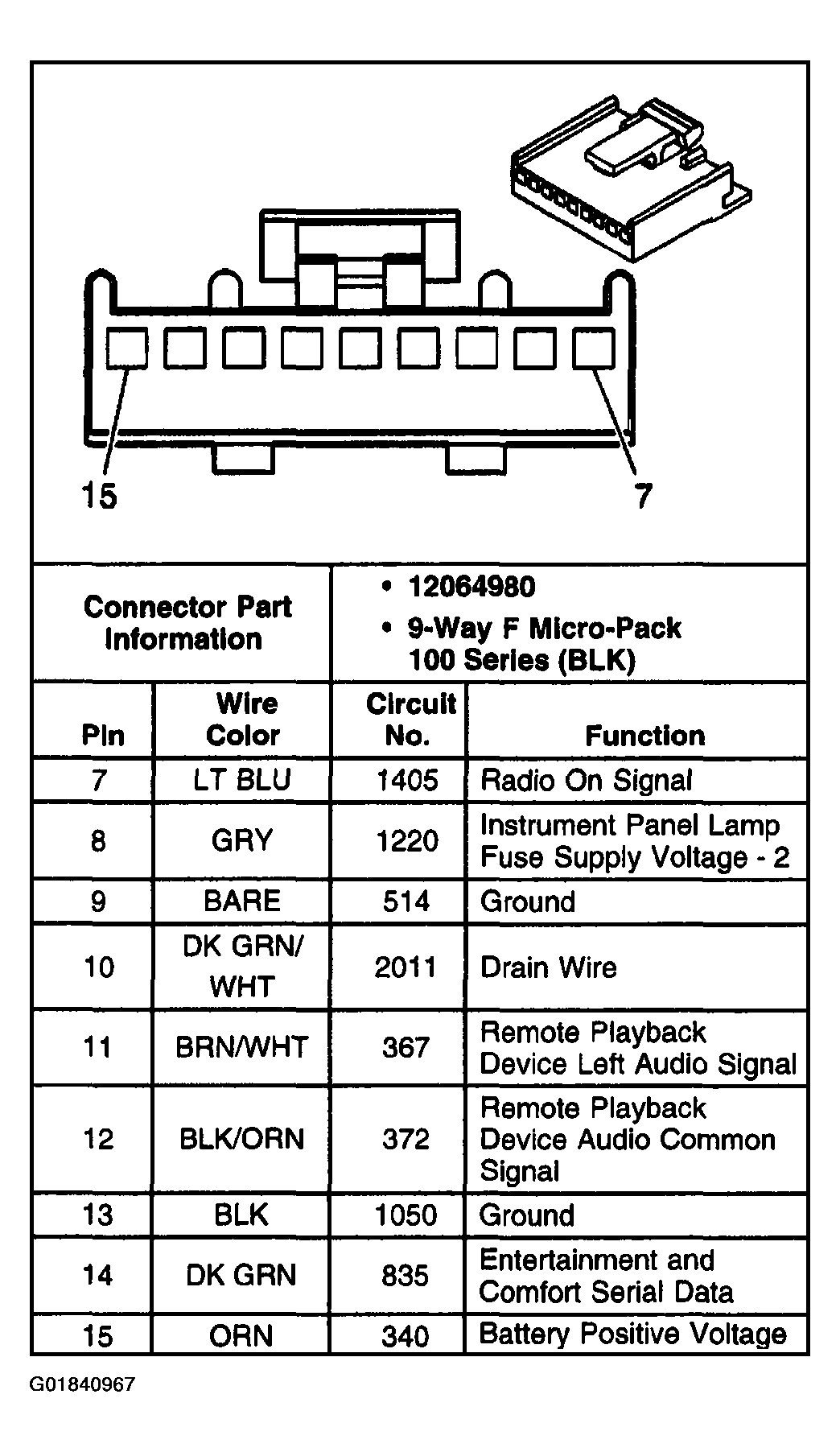

Fig 1: Remote Playback Device - CD or Cassette Player

G01840967

Courtesy of GENERAL MOTORS CORP.
