GMC
>>
2002
>>
Jimmy 2D Utility, Part Time, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
Schematic & Routing Diagrams
>>
Body Control Module Schematics
>>
Power & Ground
Power & Ground

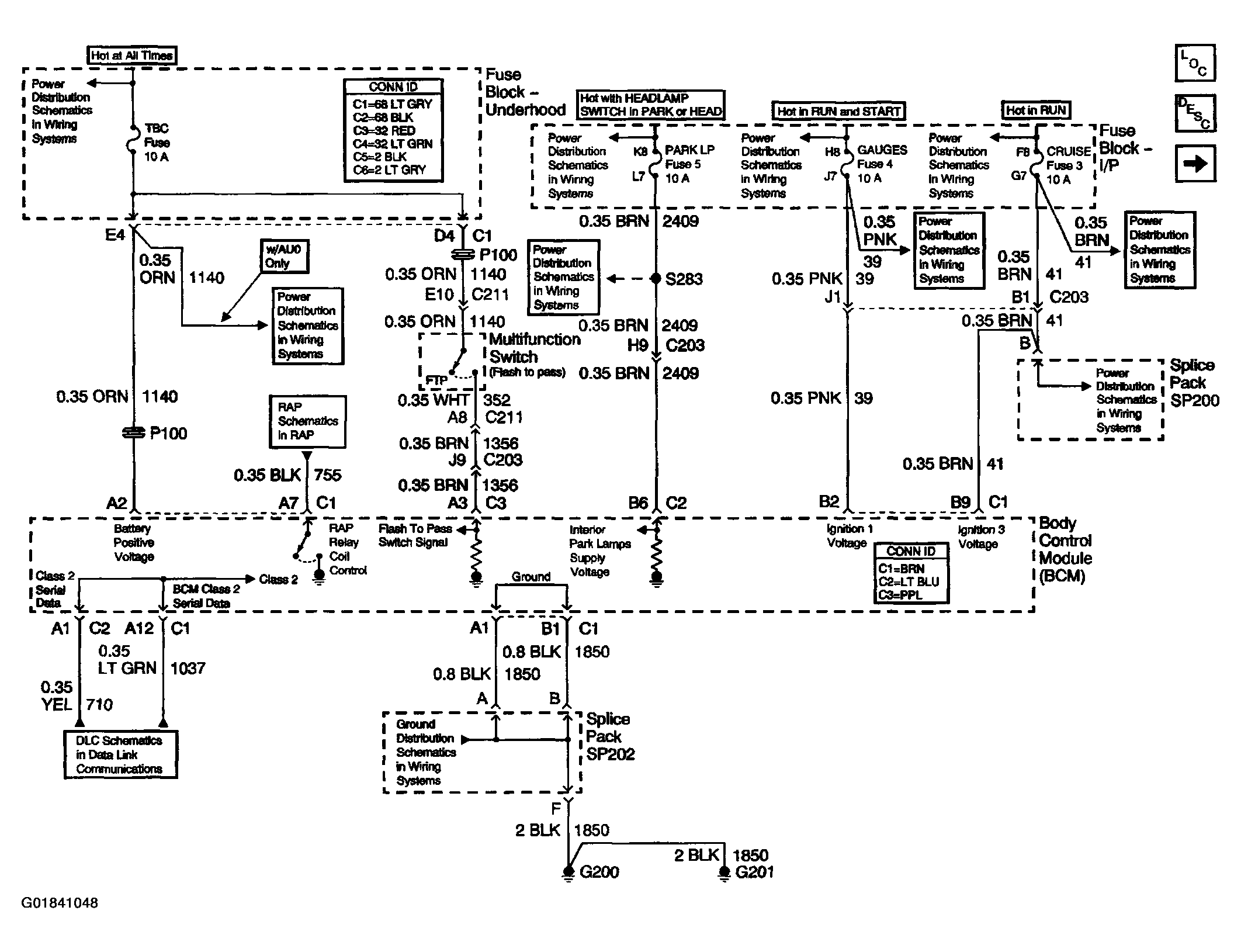

Fig 1: Body Control Module Schematics (Power & Ground)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
