Home >> GMC >> 2002 >> Jimmy 2D Utility, Part Time, Automatic >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Diagnostic Information & Procedures >> Lock System Does Not Lock

Lock System Does Not Lock

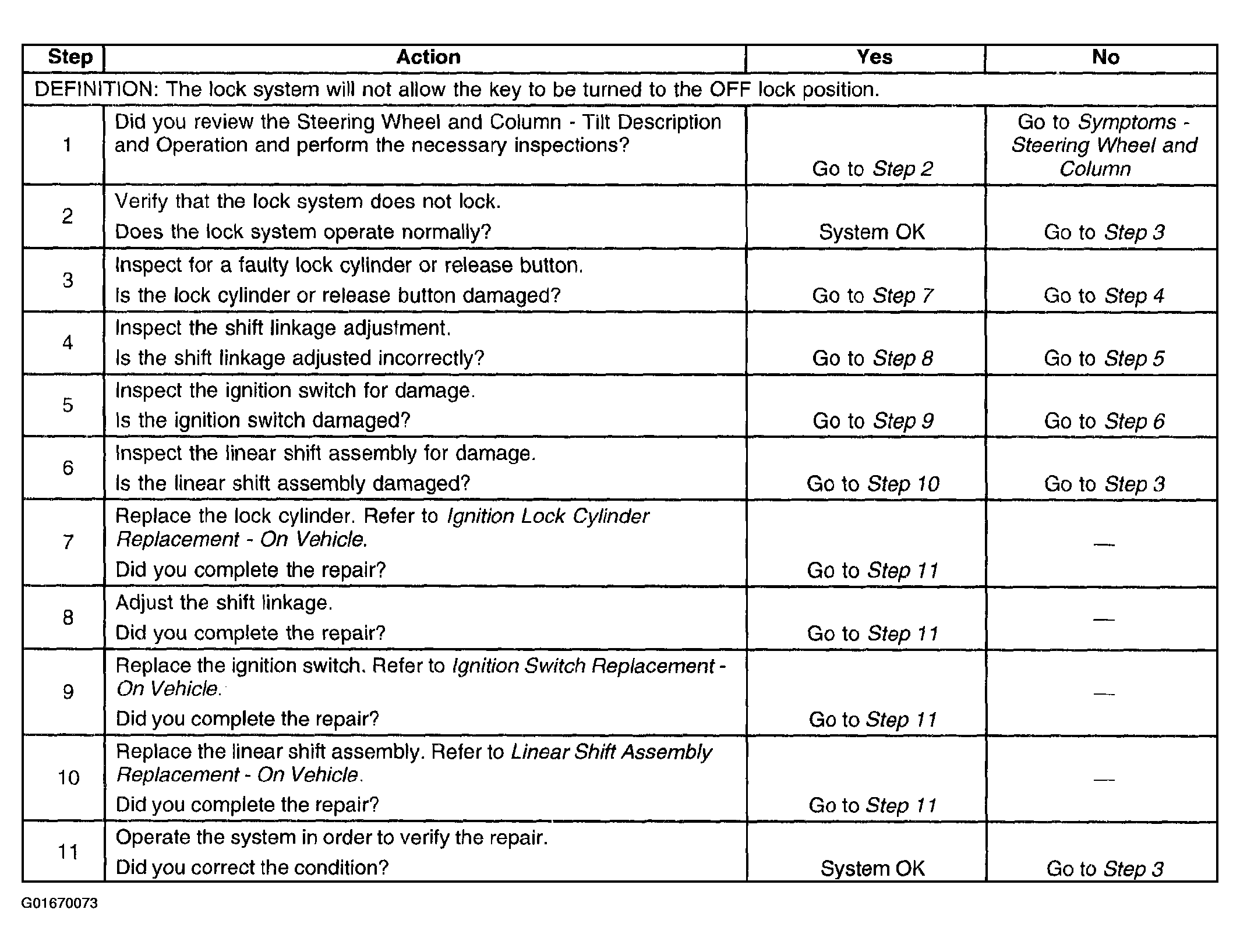

Fig 1: Lock System Does Not Lock

G01670073

Courtesy of GENERAL MOTORS CORP.
