Stoplamp Switch Connector End View - Automatic Transmission Only

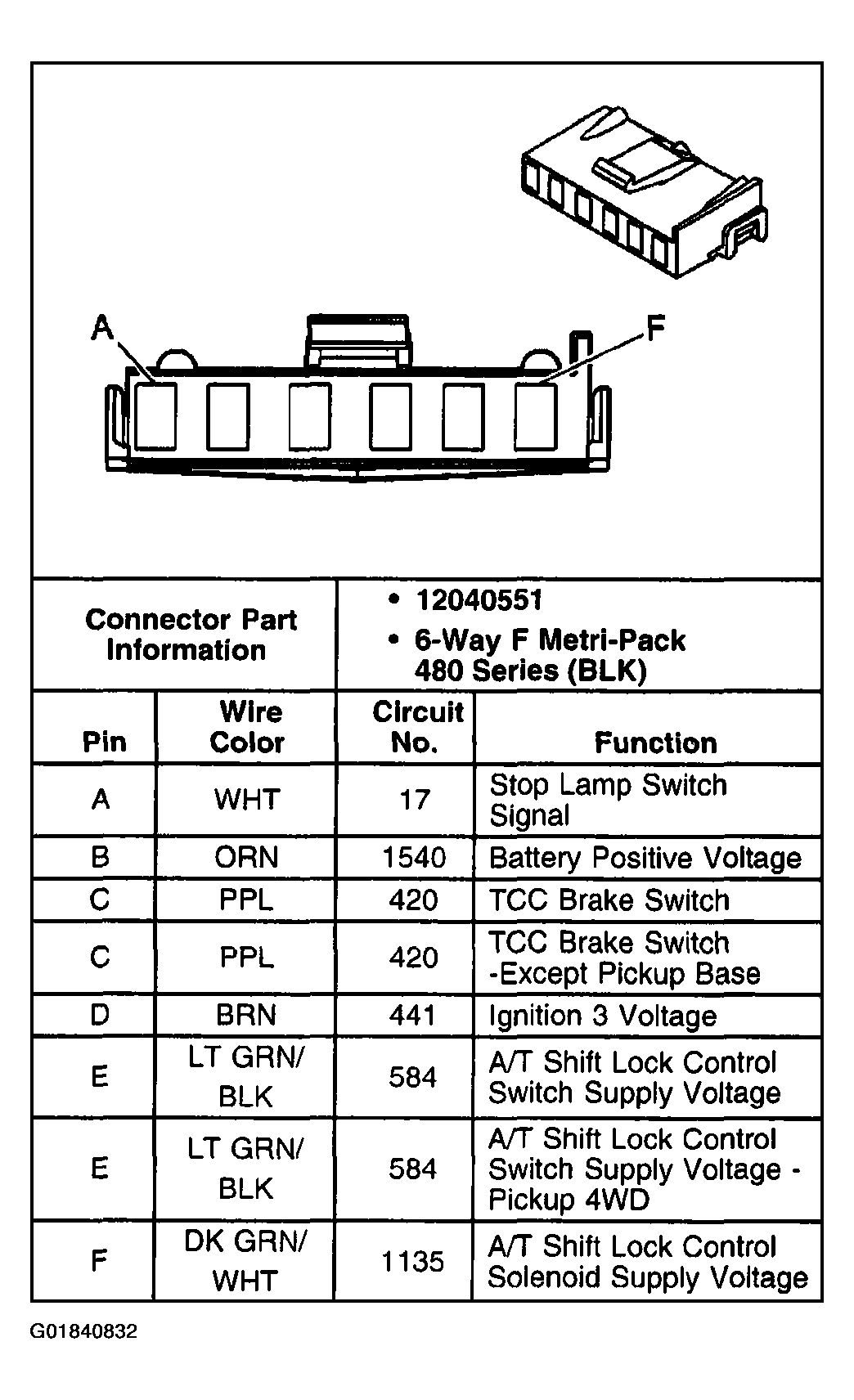

Fig 1: Stoplamp Switch Connector End View - Automatic Transmission Only

G01840832

Courtesy of GENERAL MOTORS CORP.
