Fog Lamp Connector End View - Right Front

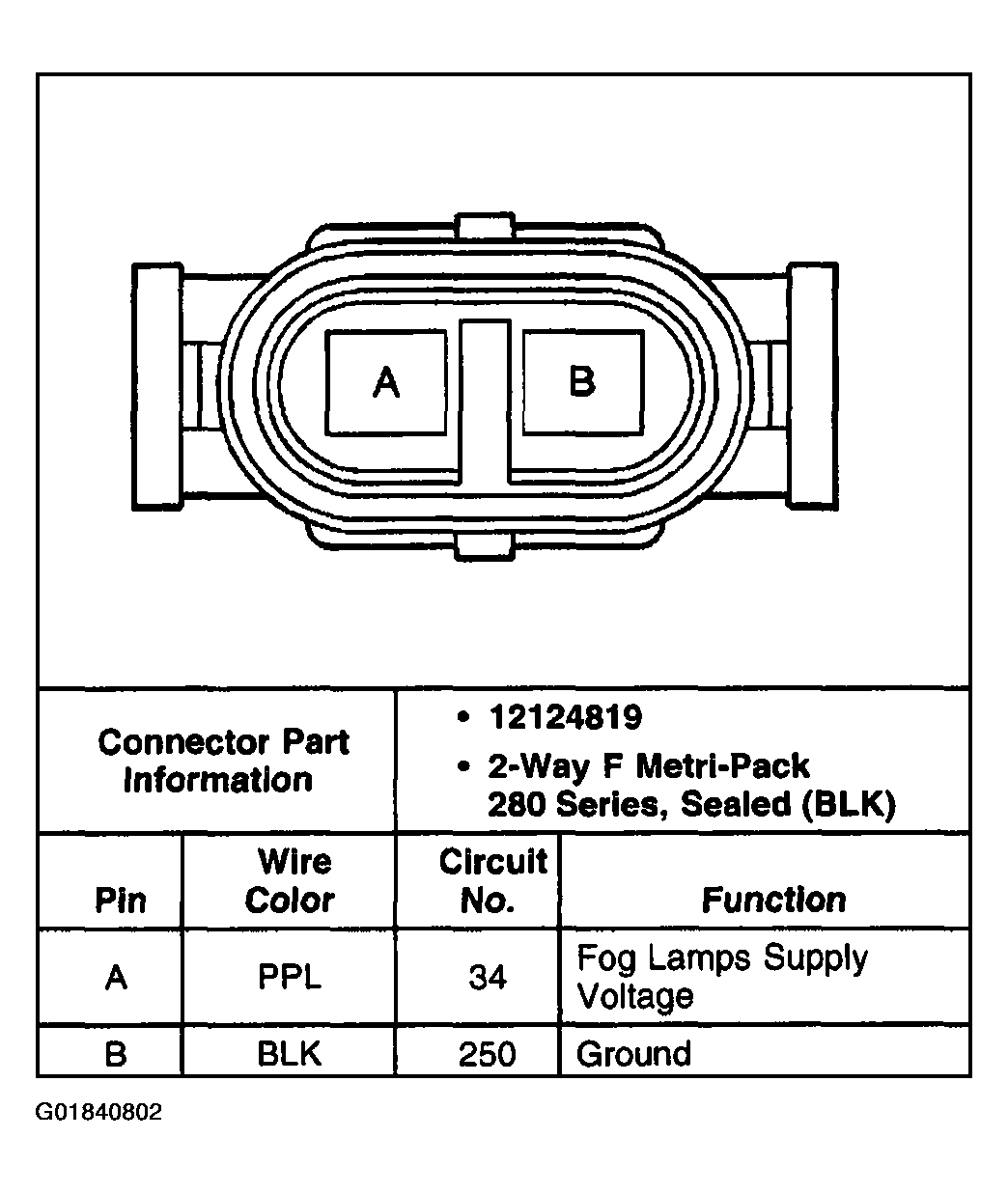

Fig 1: Fog Lamp Connector End View - Right Front

G01840802

Courtesy of GENERAL MOTORS CORP.
