Ashtray Lamp Connector End View

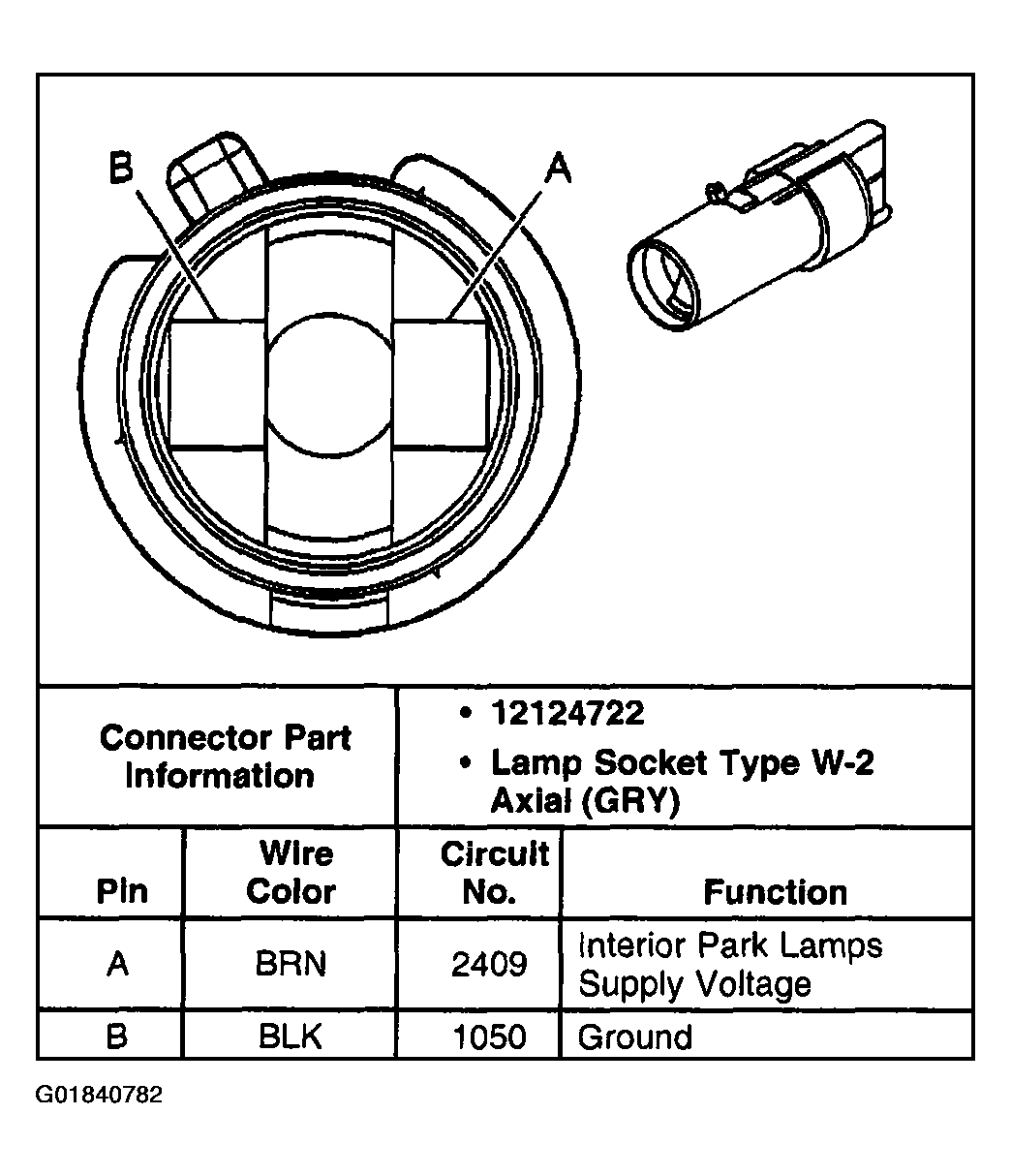

Fig 1: Ashtray Lamp Connector End View

G01840782

Courtesy of GENERAL MOTORS CORP.
