Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the power sunroof switch.
  2. Install the power sunroof switch into the headliner, pressing into place until fully seated.

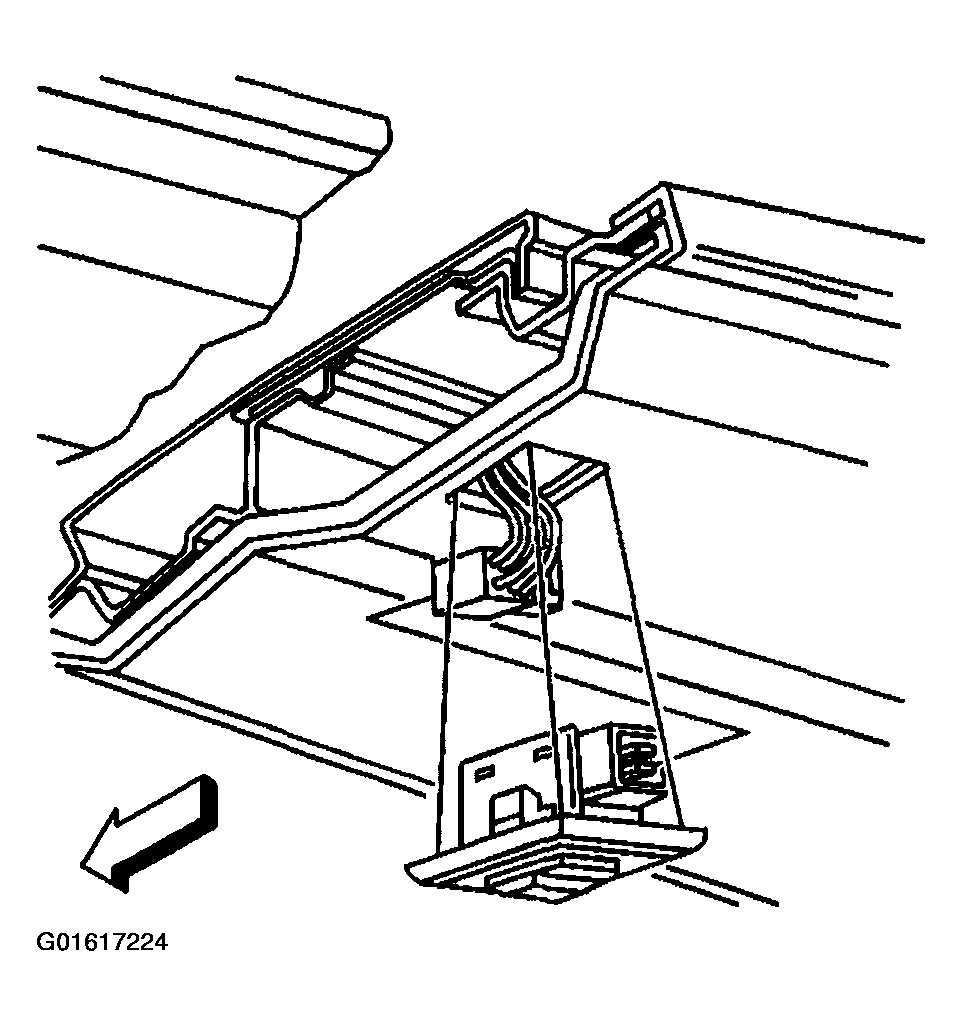

    Fig 1: Power Sunroof Switch
    G01617224Courtesy of GENERAL MOTORS CORP.
