Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tail lamp bulb to the socket assembly.
  2. Ensure the bulbs are wiped clean and free of any oil or dirt.
  3. Install the tail lamp assembly to the vehicle. Refer to TAIL LAMP REPLACEMENT   .
  4. Check the bulbs for proper operation.

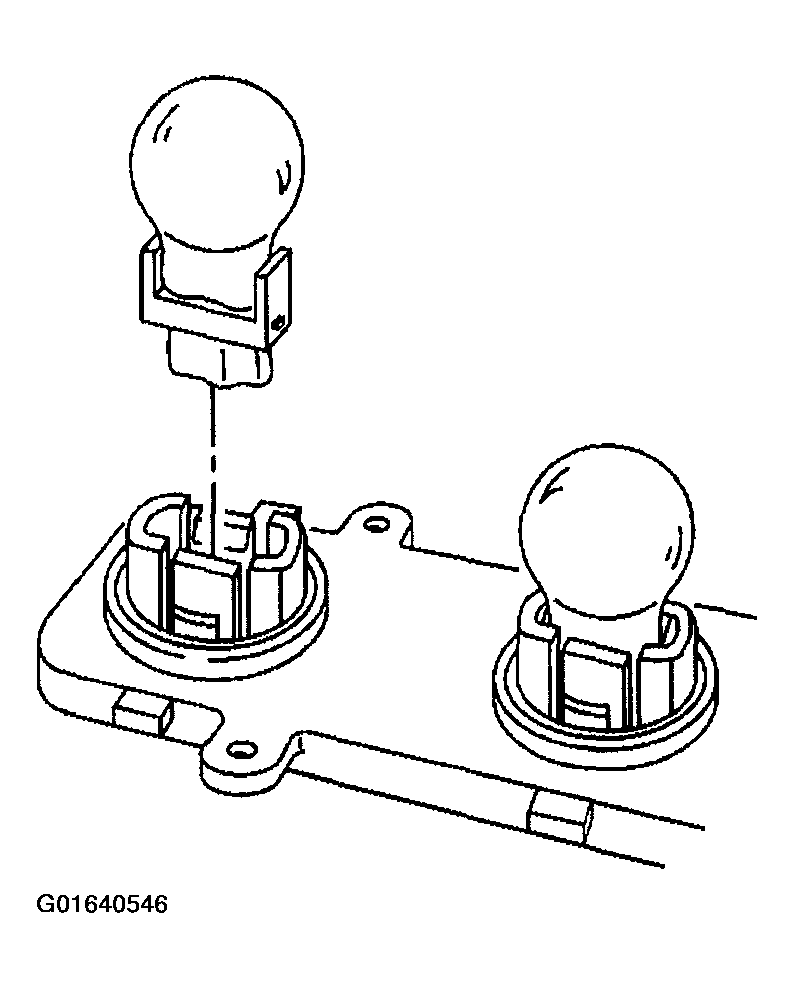

    Fig 1: Installing Tail Lamp Bulb To Socket Assembly
    G01640546Courtesy of GENERAL MOTORS CORP.
