Theft Deterrent System Connector End Views

Fig 1: Door Lock Cylinder Switch - Driver (Utility w/ RKE)

Courtesy of GENERAL MOTORS CORP.

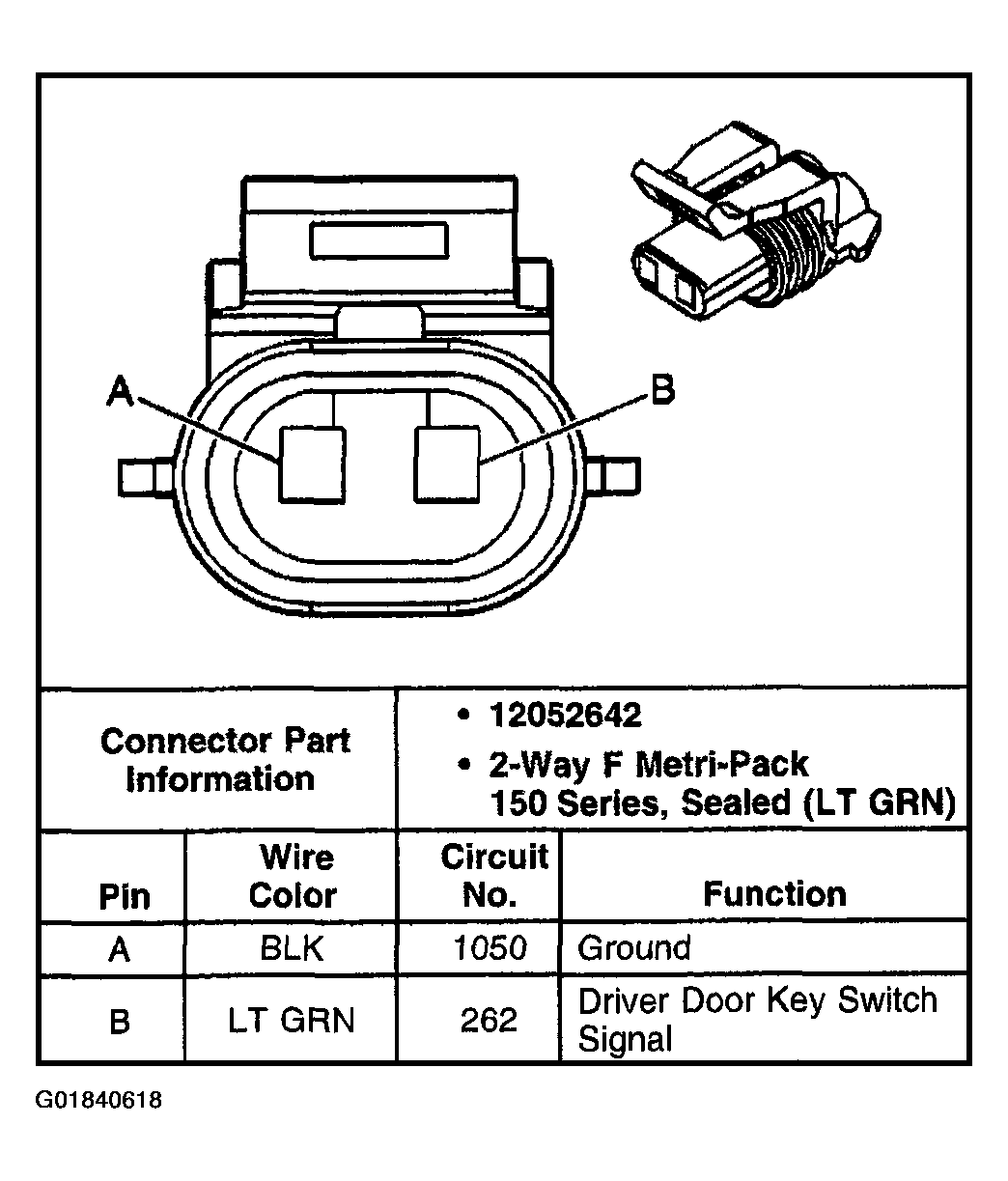

Fig 2: Door Lock Cylinder Switch - Driver (w/o RKE)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Lock Cylinder Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.
