Removal Procedure

IMPORTANT:

The HO2S may be difficult to remove when the engine temperature is below 48°C (120°F). Excessive force may damage the threads in the exhaust manifold or exhaust pipe. It may be necessary to lower the exhaust system to gain sufficient access to a HO2S and/or a HO2S connector.

Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

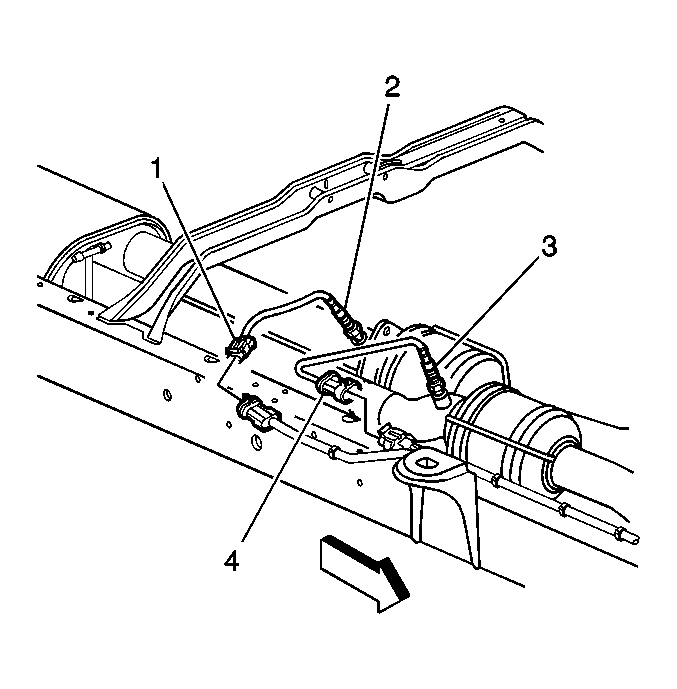

Fig 1: HO2 Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Disconnect the HO2S electrical connector (1).

Fig 2: Locating HO2S - Downstream

Courtesy of GENERAL MOTORS COMPANY

Carefully back out the HO2S (3).
