Installation Procedure

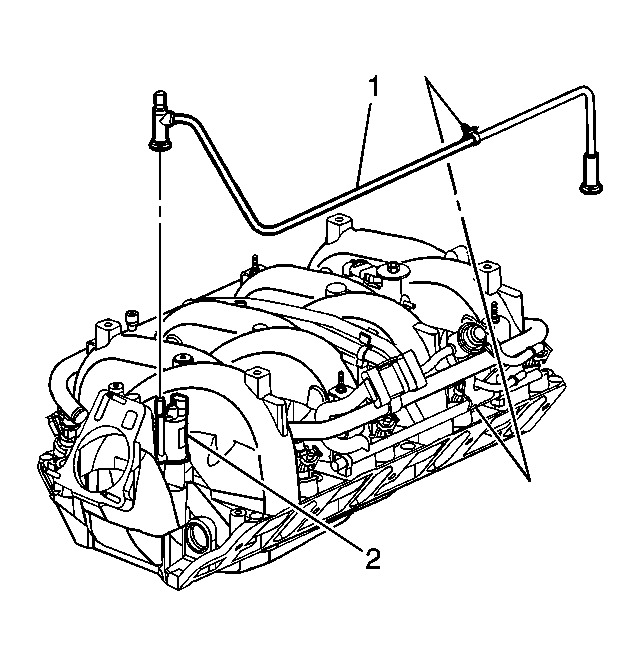

    Fig 1: EVAP Engine Purge Pipe
    GM693627Courtesy of GENERAL MOTORS COMPANY
  1. Position the EVAP engine purge pipe (1) to the engine.
  2. Insert the purge pipe retaining clip into the fuel rail mounting bracket.

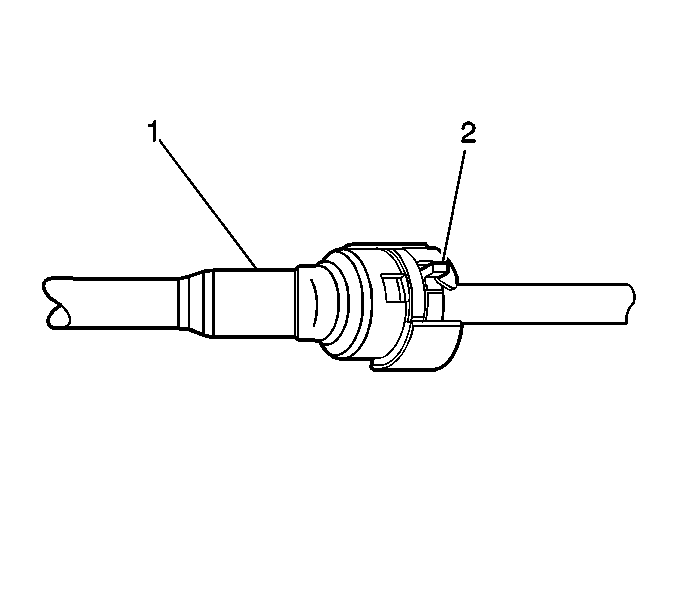

    3. Fig 2: EVAP Purge Tube Connector
    GM695582Courtesy of GENERAL MOTORS COMPANY
  3. To connect the purge pipe connector (1), press the components together in order to snap the tab (2) in place.
    • Connect the EVAP purge pipe (1) to the chassis purge pipe.
    • Connect the EVAP purge pipe (1) to the EVAP canister purge valve.
    4. Fig 3: View Of EVAP Canister Purge Valve Harness Connector
    GM696195Courtesy of GENERAL MOTORS COMPANY
  4. Connect the generator harness connector (2).
  5. Connect the TP sensor harness connector (3).
  6. Connect the fuel injector harness multi-way connector.
    7. Fig 4: Intake Manifold Sight Shield, Bolts & Retainer
    GM665445Courtesy of GENERAL MOTORS COMPANY
  7. Install the fuel injection sight shield (2).
  8. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the fuel injection sight shield retaining bolt (3).

    Tighten

    Tighten the fuel injection sight shield to 10 N.m (89 lb in).
