Installation Procedure

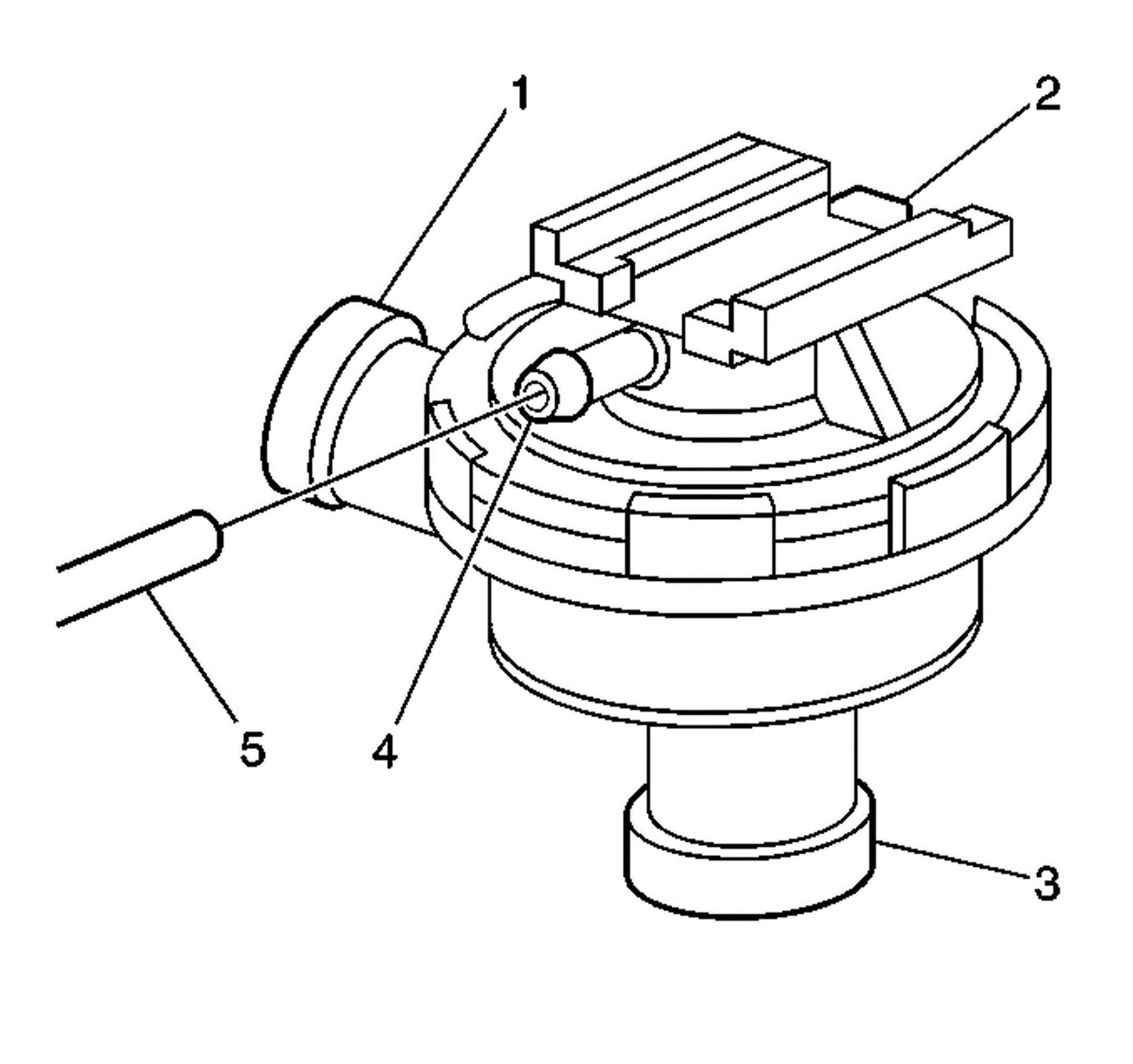

    Fig 1: AIR Pump Shut-Off Valve
    GM390304Courtesy of GENERAL MOTORS COMPANY
  1. Install the AIR pump shut-off valve inlet port (1) to the AIR pump outlet hose.
  2. Install the vacuum line (5) to the AIR pump shut-off valve vacuum port (4).
  3. Install the AIR hose to the AIR pump shut-off valve inlet port (3).

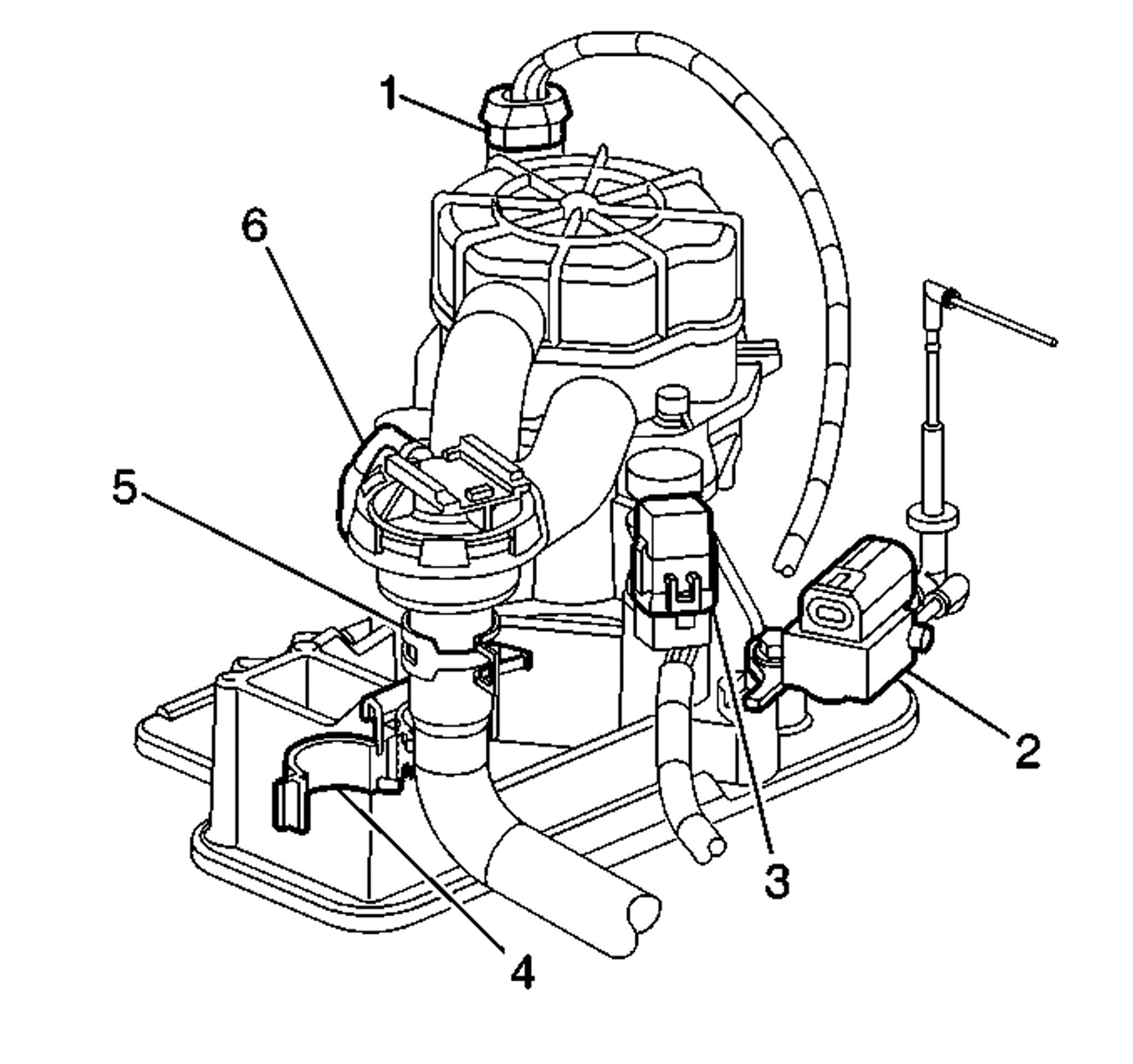

    4. Fig 2: AIR Pump And Associated Components
    GM353967Courtesy of GENERAL MOTORS COMPANY
  4. Install the clamp (5) securing the AIR hose to the AIR pump shut-off valve.
  5. Install the clamp (4) securing the AIR hose to the AIR pump assembly base.
