Test M: Remote Keyless Entry System Inoperative (Except Luxury)

For test procedure, refer to illustrations. See Figure and Fig 1 .

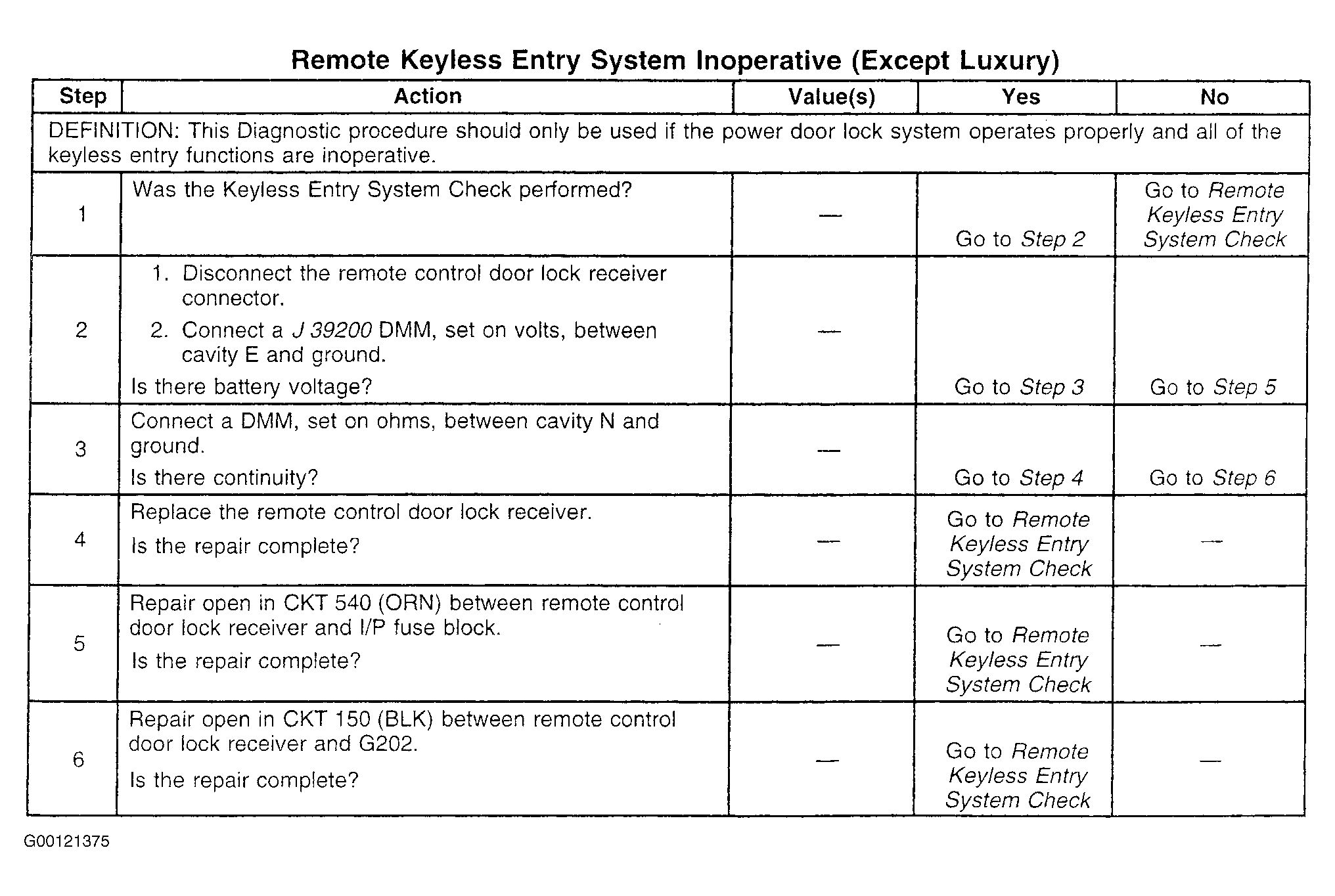

Fig 1: Test M: Remote Keyless Entry System Inoperative (Except Luxury)

Courtesy of GENERAL MOTORS CORP.
