Remote Control Door Lock Receiver (Base): Removal

1. Remove Daytime Running Lights (DRL) module from behind lower left side of instrument panel. See Fig 1 .

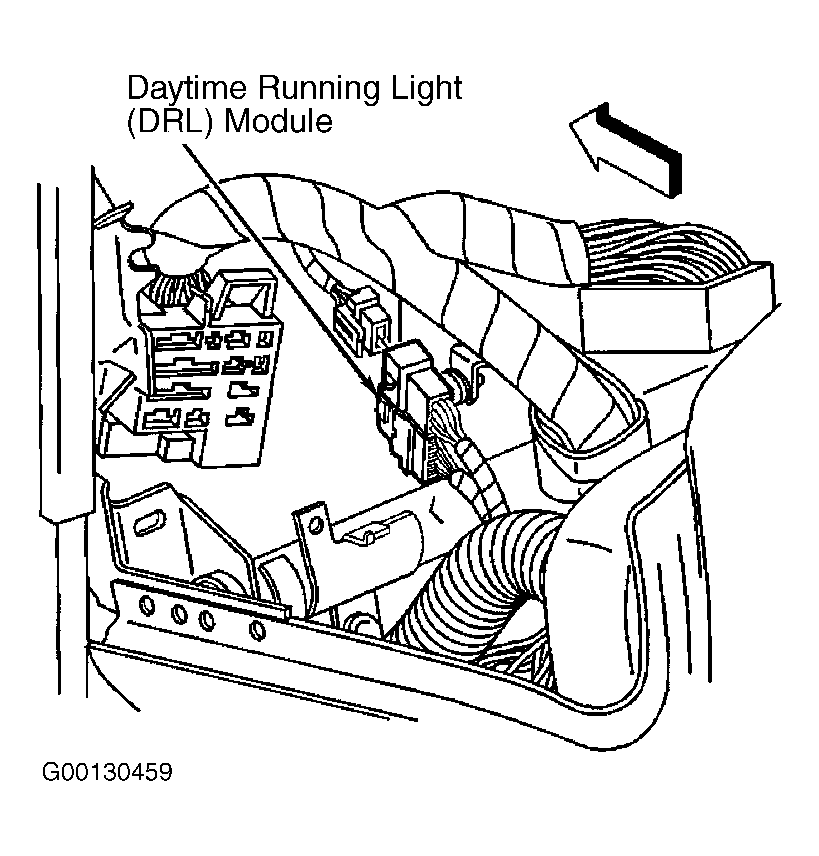

   Fig 1: Locating Daytime Running Light Module

   Courtesy of GENERAL MOTORS CORP.
2. Disconnect electrical connector.
3. Remove remote control door lock receiver retainer. See Fig 2 .
4. Remove remote control door lock receiver.

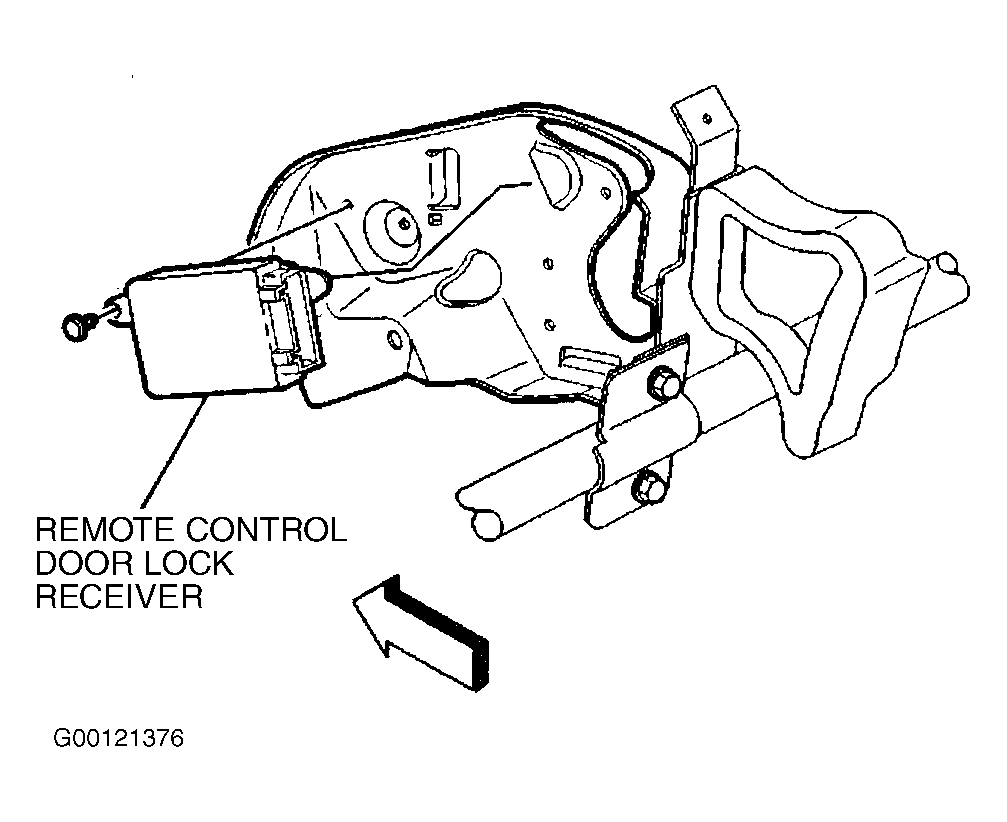

Fig 2: Removing Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.
