Door Lock Control Module

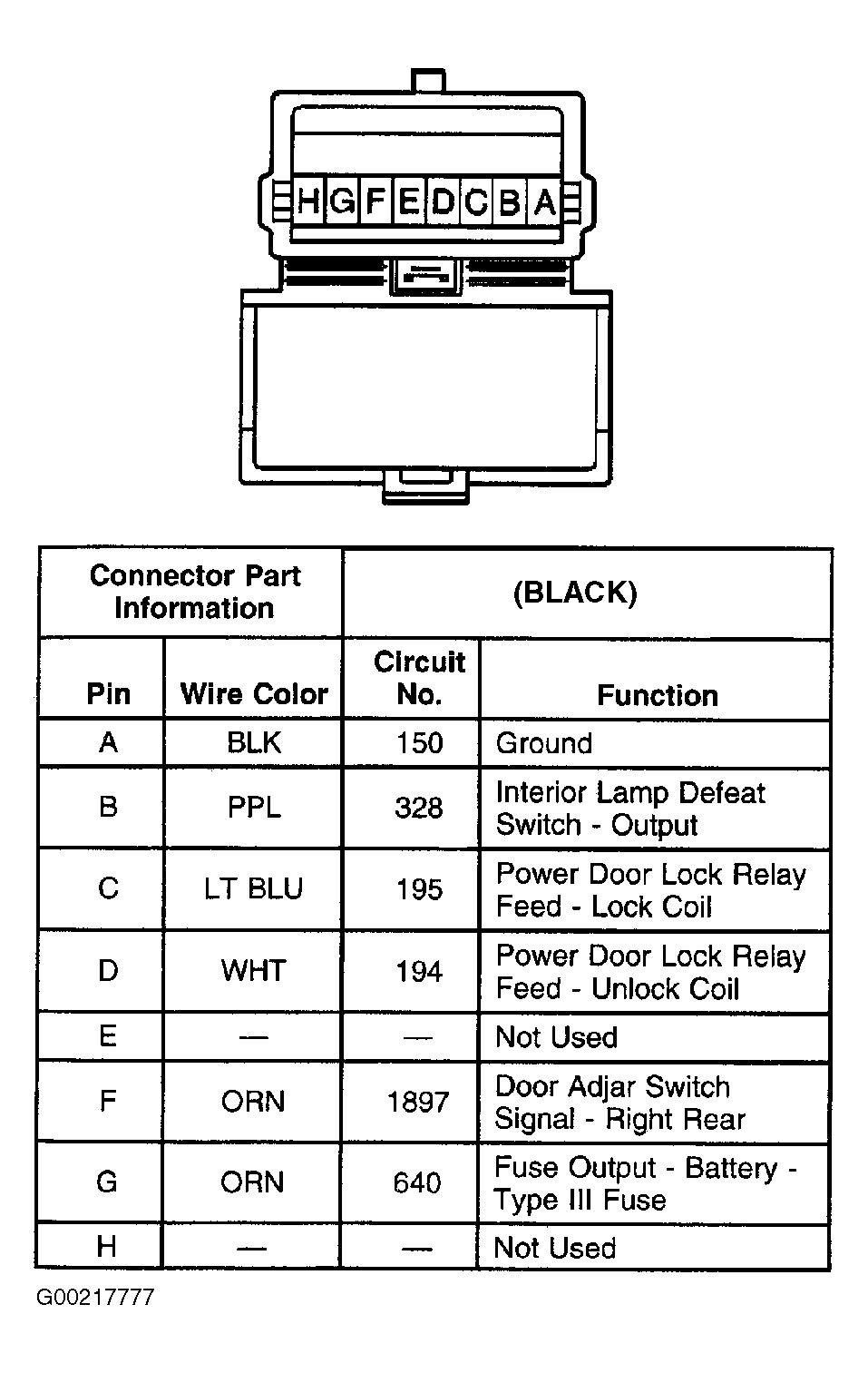

Fig 1: Door Lock Control Module Connector End View

G00217777

Courtesy of GENERAL MOTORS CORP.
