Inflatable Restraint IP Module Switch

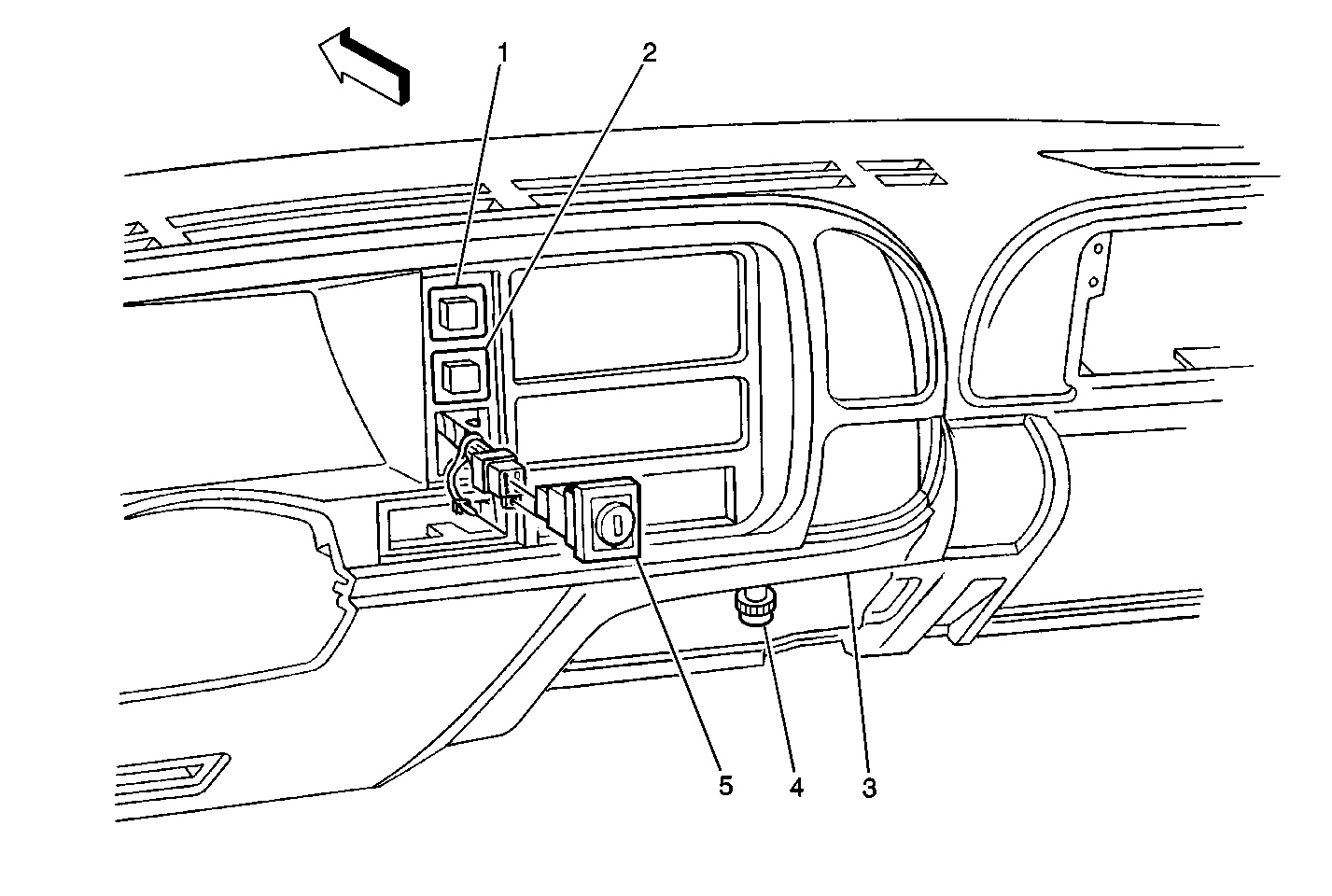

Fig 1: Inflatable Restraint IP Module Switch, DRL And Radio Override Switches, Aux Heater Fan Switch
GM278181Courtesy of GENERAL MOTORS COMPANY
  1. Rear Window Wiper/Washer Switch
  2. Liftgate Release Switch
  3. Ashtray Lamp
  4. Cigar Lighter
  5. Inflatable Restraint IP Module Switch (Pickup)
  6. Daytime Running Lamps (DRL) Radio Override Switch (Z56)
  7. Auxiliary Heater Fan Switch
