Instrument Cluster (W/ Column Shift A/T)

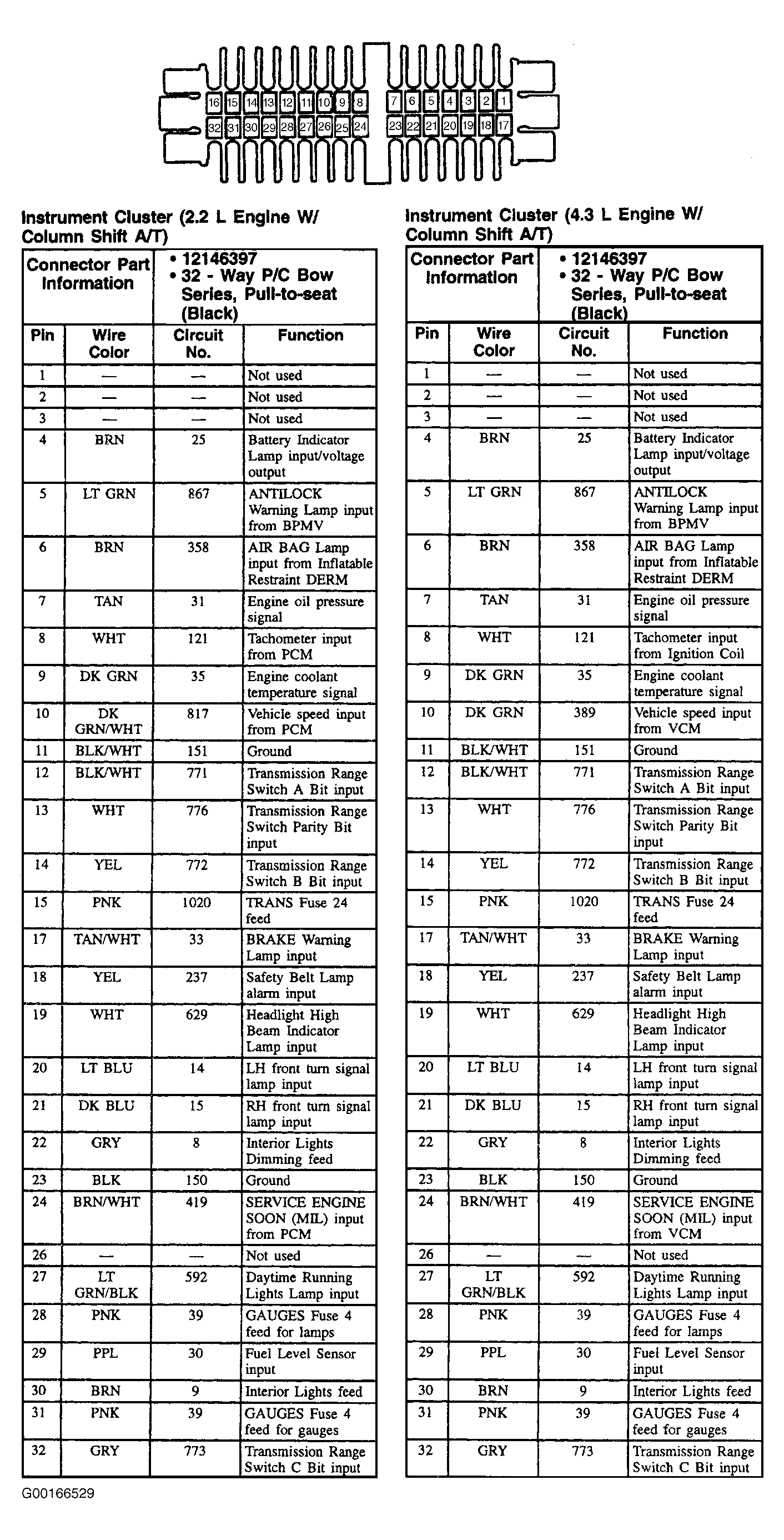

Fig 1: Instrument Cluster (W/ Column Shift A/T) - 32-Pin Connector, Black

G00166529

Courtesy of GENERAL MOTORS CORP.
