Engine Coolant Temperature Sensor W/ Engine Coolant Temperature Gauge Sensor (2.2L)

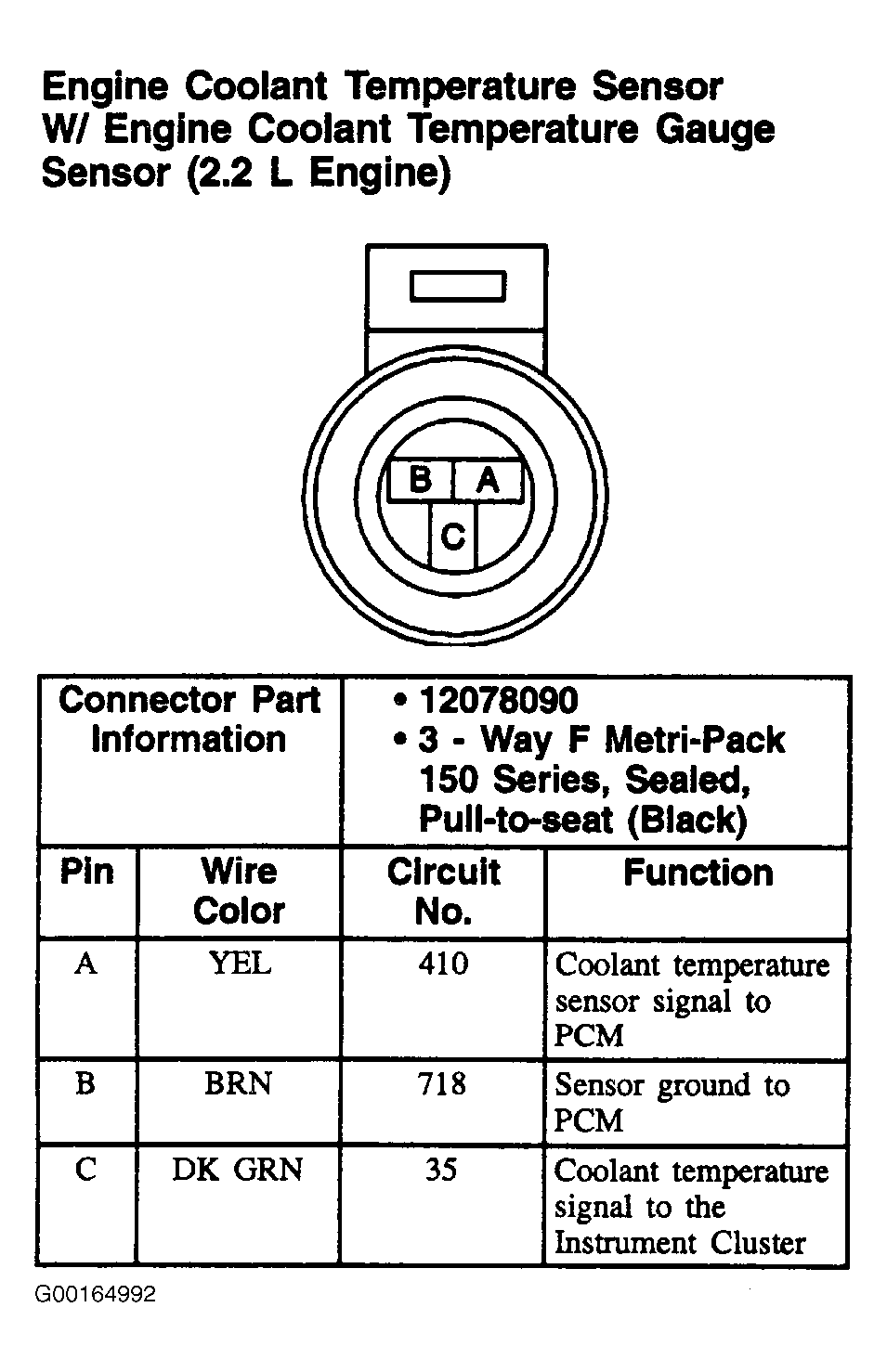

Fig 1: Engine Coolant Temperature Sensor W/ Engine Coolant Temperature Gauge Sensor (2.2L) - 3-Pin Connector, Black
G00164992Courtesy of GENERAL MOTORS CORP.
