Dome & High Mounted Stop Lamp (Pickup)

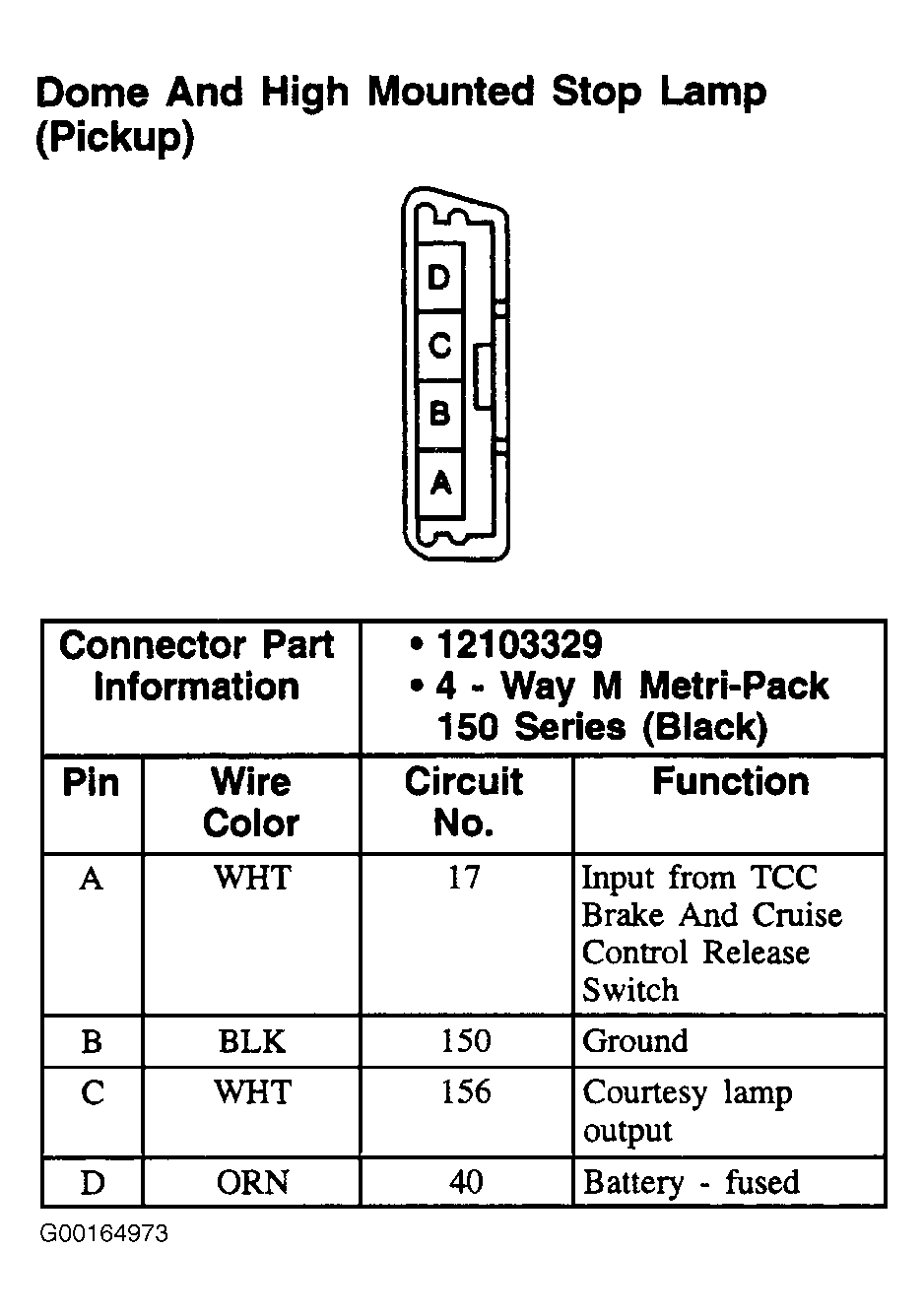

Fig 1: Dome & High Mounted Stop Lamp (Pickup) - 4-Pin Connector, Black

G00164973

Courtesy of GENERAL MOTORS CORP.
