Automatic Transmission Position Indicator Lamp (W/ Floor Shift A/T)

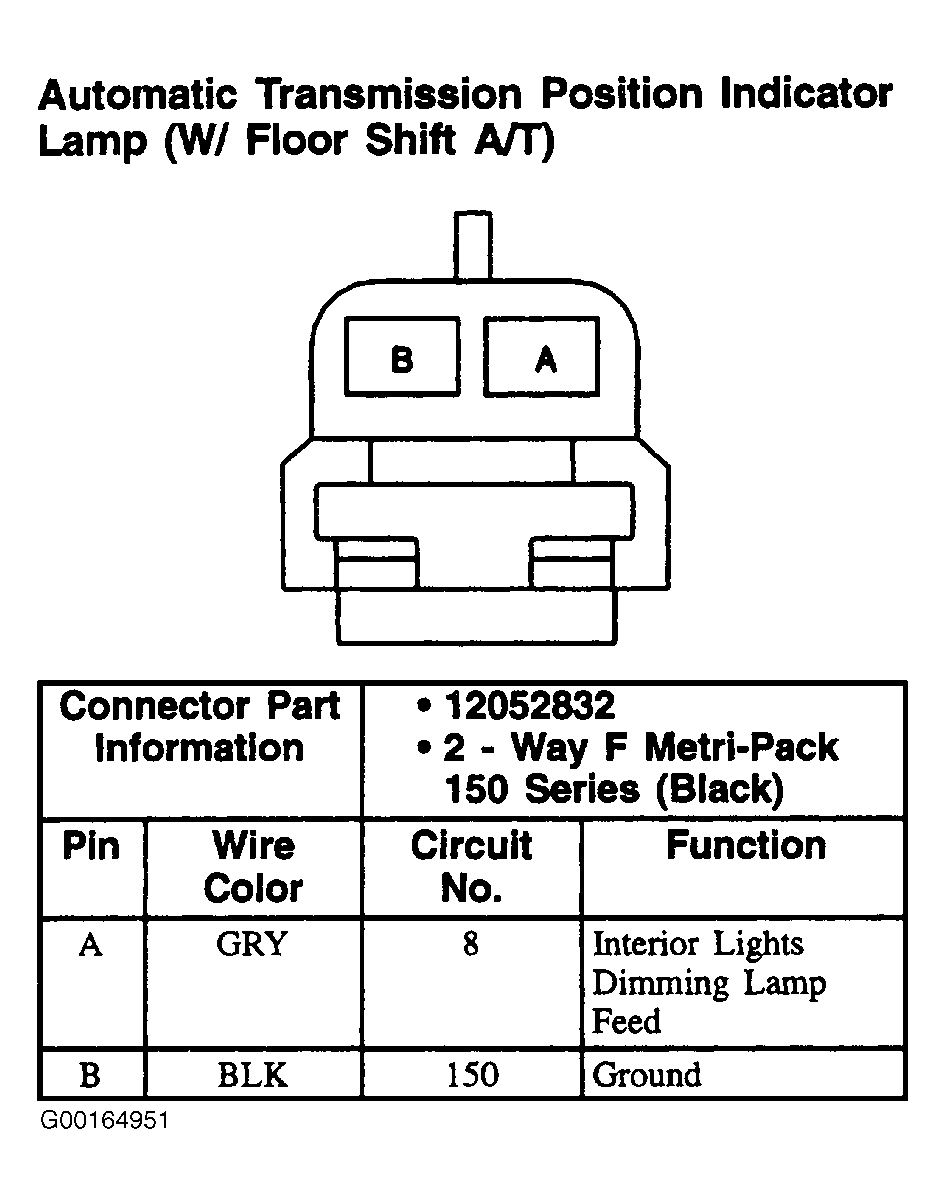

Fig 1: Automatic Transmission Position Indicator Lamp (W/ Floor Shift A/T) - 2-Pin Connector, Black

G00164951

Courtesy of GENERAL MOTORS CORP.
