Data Link (Commercial Chassis - Diesel Automatic)

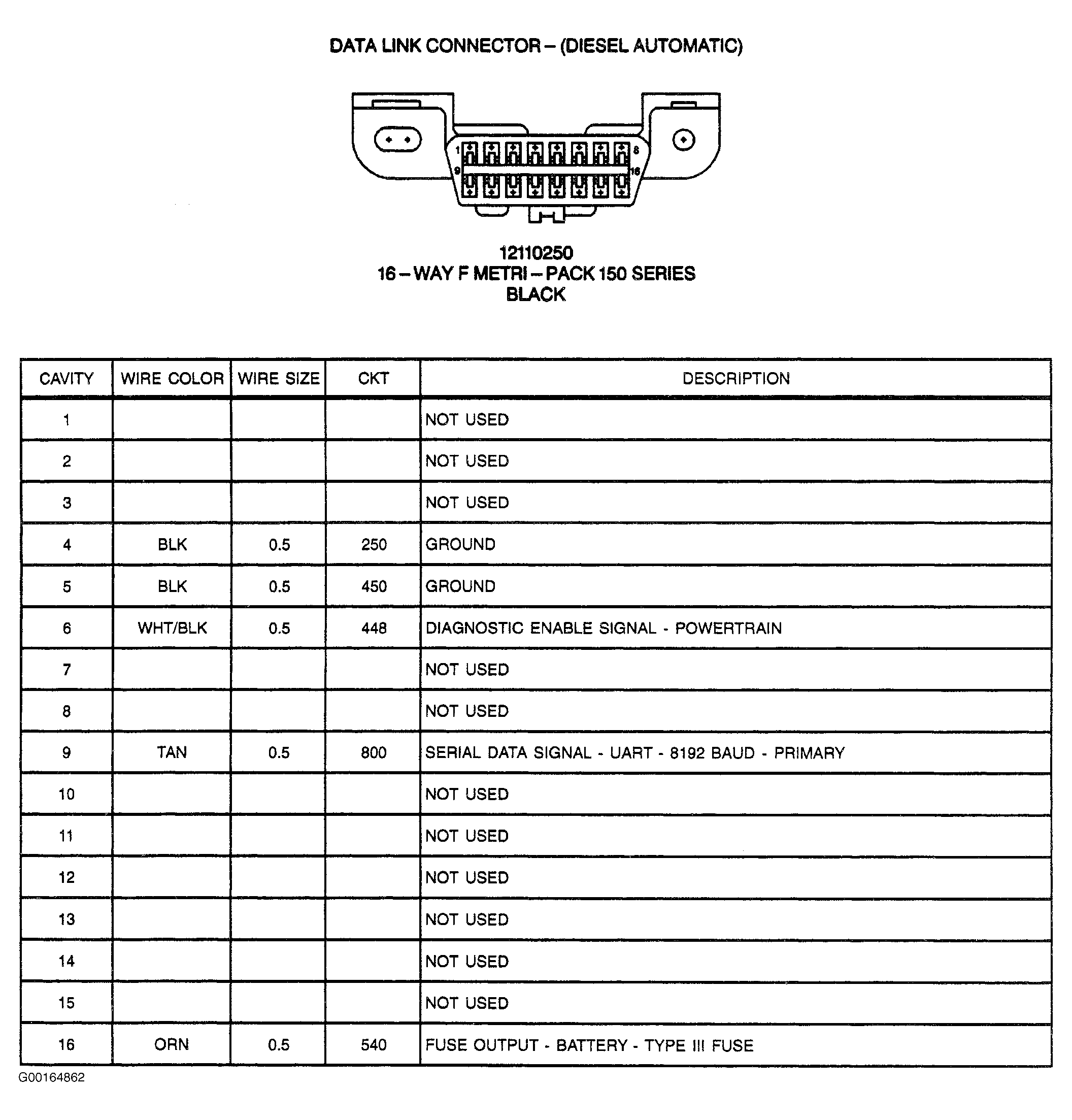

Fig 1: Data Link (Commercial Chassis - Diesel Automatic) - 16-Pin Connector, Black

G00164862

Courtesy of GENERAL MOTORS CORP.
