Component Locations

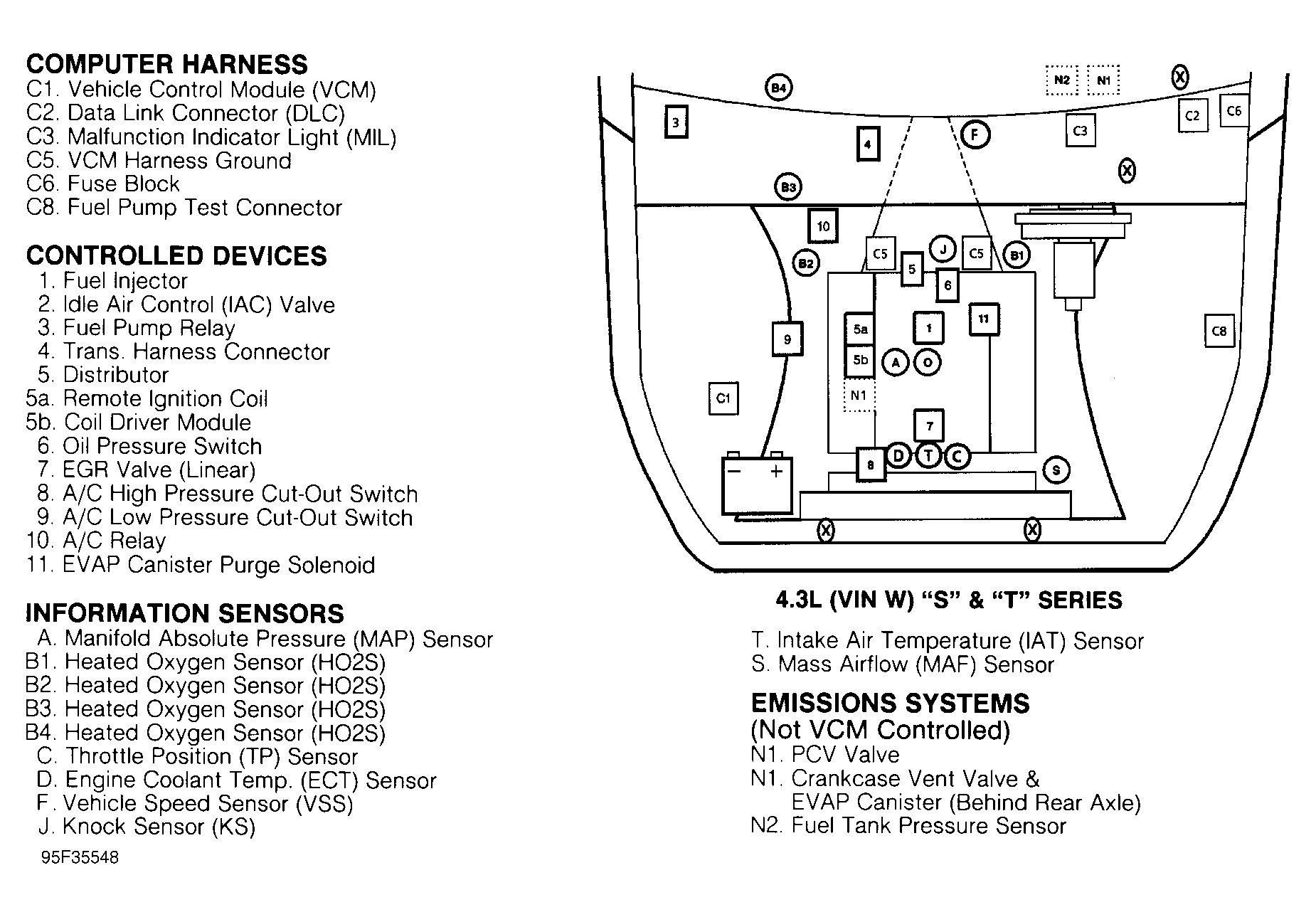

Fig 1: Component Locations - 4.3L (VIN W & X)

G95F35548

Courtesy of GENERAL MOTORS CORP.
