UART Data Line Diagnosis

Refer to flowchart. See Fig 1 .

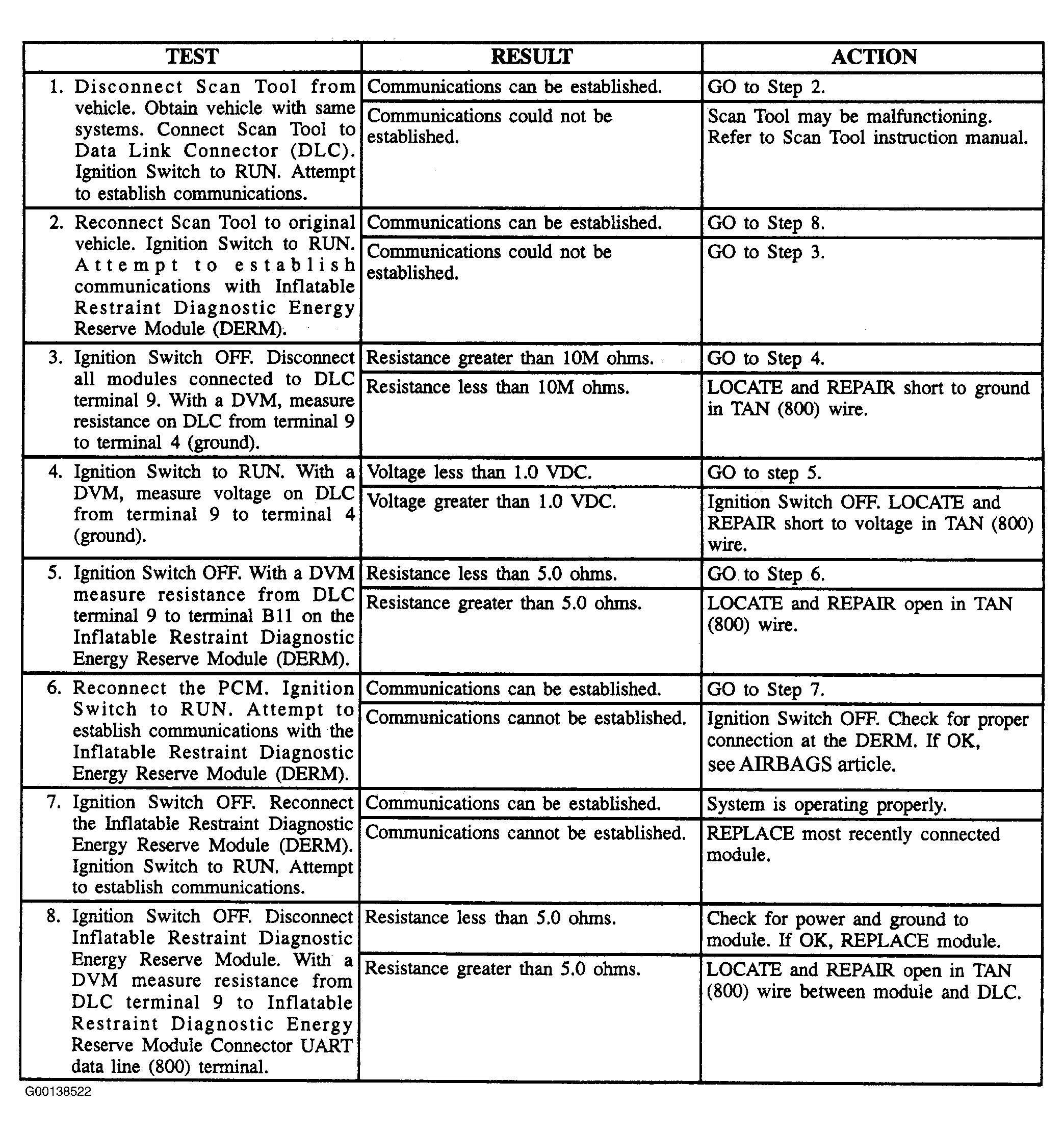

Fig 1: UART Data Line Diagnostic Flowchart

G00138522

Courtesy of GENERAL MOTORS CORP.
