Class 2 Data Line Diagnosis

Refer to flowchart. See Fig 1 .

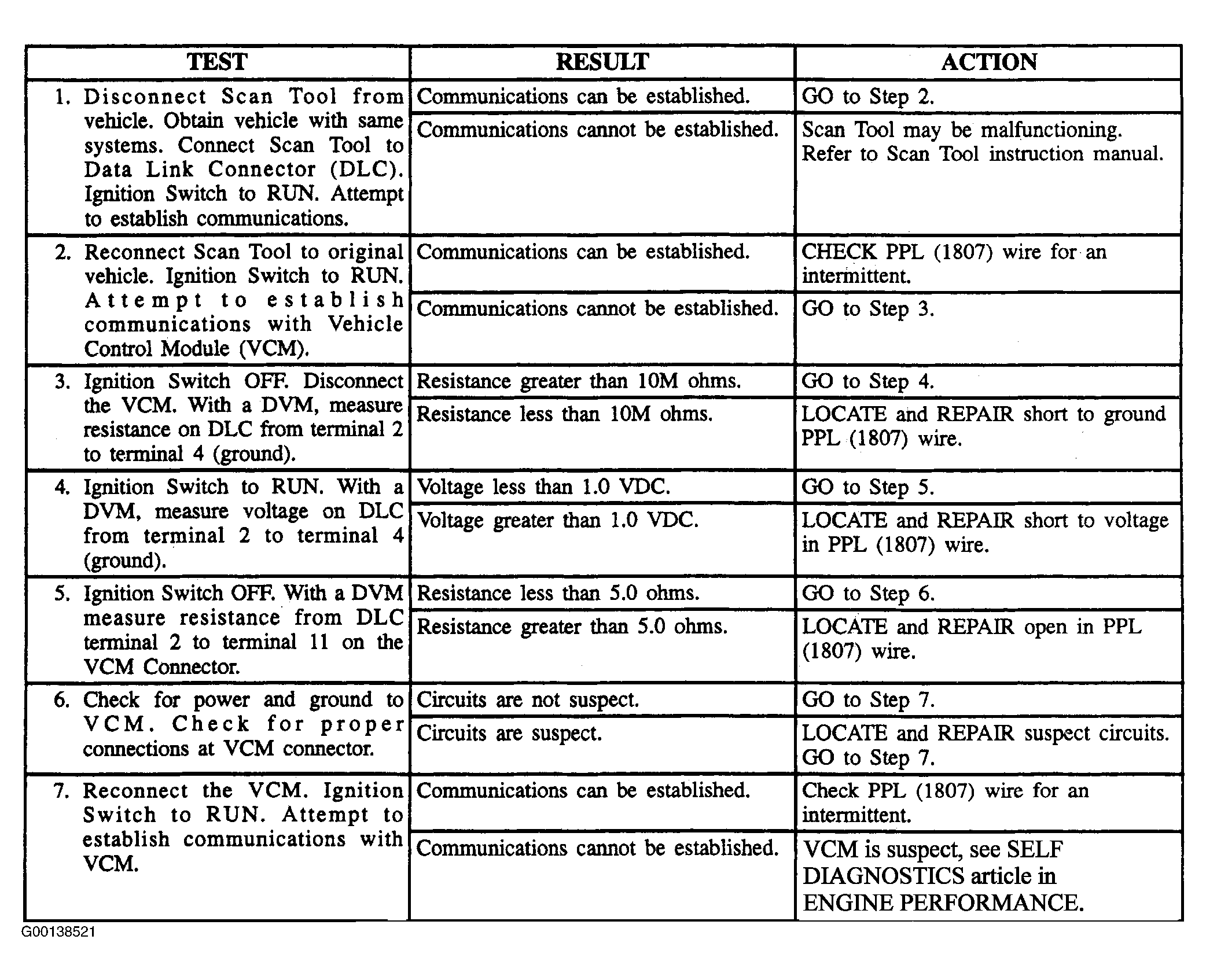

Fig 1: Class 2 Data Line Diagnostic Flowchart

G00138521

Courtesy of GENERAL MOTORS CORP.
