CONNECTOR IDENTIFICATION

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Camshaft Position (CMP) Sensor	Fig 3
CNG Low Pressure Sensor	Fig 4
CNG Temperature Sensor	Fig 5
Crankshaft Position (CKP) Sensor	Fig 6
Data Link Connector (DLC)	Fig 7
Engine Coolant Temperature (ECT) Sensor	Fig 9
Exhaust Gas Recirculation (EGR) Solenoid	Fig 10
Fuel Injector	Fig 11
High Pressure Fuel Shutoff Relay	Fig 12
High Pressure Fuel Shutoff Solenoid	Fig 14
Idle Air Control (IAC) Motor	Fig 15
Ignition Coil	Fig 17
Intake Air Temperature (IAT) Sensor	Fig 18
Low Pressure Fuel Shutoff Solenoid	Fig 19
Manifold Absolute Pressure (MAP) Sensor	Fig 20
Park/Neutral (P/N) Position Switch	Fig 22
Powertrain Control Module (PCM)	Fig 23
Overdrive (OD) Solenoid/Torque Convertor Clutch (TCC) Solenoid	Figure
Oxygen Sensor	Figure
Throttle Position (TP) Sensor	Figure
Vehicle Speed Sensor (VSS)	Figure

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal

Wire Color

⁽¹⁾ Dark Blue

⁽²⁾ Red/Light Green

Dark Blue/Orange

Dark Blue/Black

⁽¹⁾	Light Green/Black wire on BR body.

⁽²⁾	Gray wire on AN body; Violet wire on BR body.

Fig 1: Identifying A/C Clutch Relay Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal

Wire Color

⁽¹⁾ Dark Blue

⁽²⁾ Red

⁽³⁾ Dark Blue/Yellow

Dark Blue/Black

⁽¹⁾	Light Green/Black wire on BR body.

⁽²⁾	Red/White wire on AN body. Gray/White wire on BR body.

⁽³⁾	Dark Blue/Orange wire on BR body.

Fig 2: ASD Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 3: CMP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

CNG LOW PRESSURE SENSOR CONNECTOR TERMINAL ID

Terminal No.

Wire Color

Violet/White

Black/Light Blue

⁽¹⁾ Dark Green/Orange

⁽¹⁾	Dark Green/Light Blue wire on AN and BR bodies.

Fig 4: CNG Low Pressure Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 5: CNG Temperature Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

CKP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color
1	Gray/Black
2	Black/Light Blue
3	Orange

Fig 6: CKP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 7: Data Link Connector (DLC) Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 8: ECT Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 9: EGR Solenoid Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

FUEL INJECTOR CONNECTOR TERMINAL ID

Terminal No.	Function	Wire Color
1	ASD Relay Output	Dark Green/Orange
2	Injector No. 1 Driver	White/Brown
2	Injector No. 2 Driver	White
2	Injector No. 3 Driver	White/Yellow
2	Injector No. 4 Driver	White/Light Blue
2	Injector No. 5 Driver	White/Black
2	Injector No. 6 Driver	White/Red
2	Injector No. 7 Driver	White/Tan
2	Injector No. 8 Driver	White/Gray

Fig 10: Identifying Fuel Injector Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

HIGH PRESSURE FUEL SHUTOFF RELAY CONNECTOR TERMINAL ID

Terminal

Wire Color

⁽¹⁾ Dark Blue

⁽²⁾ Red

Dark Blue/Yellow

Dark Green/Black

⁽¹⁾	Light Green/Black wire on BR body.

⁽²⁾	Red/White wire on AN body; Dark Green/Black wire on BR body.

Fig 11: High Pressure Fuel Shutoff Relay Conn. Term. ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 12: High Pressure Fuel Shutoff Sol. Conn. Term. ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 13: IAC Motor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal No.

Wire Color

Dark Green/Orange

⁽¹⁾ Gray

⁽¹⁾	Black/Gray wire on BR body.

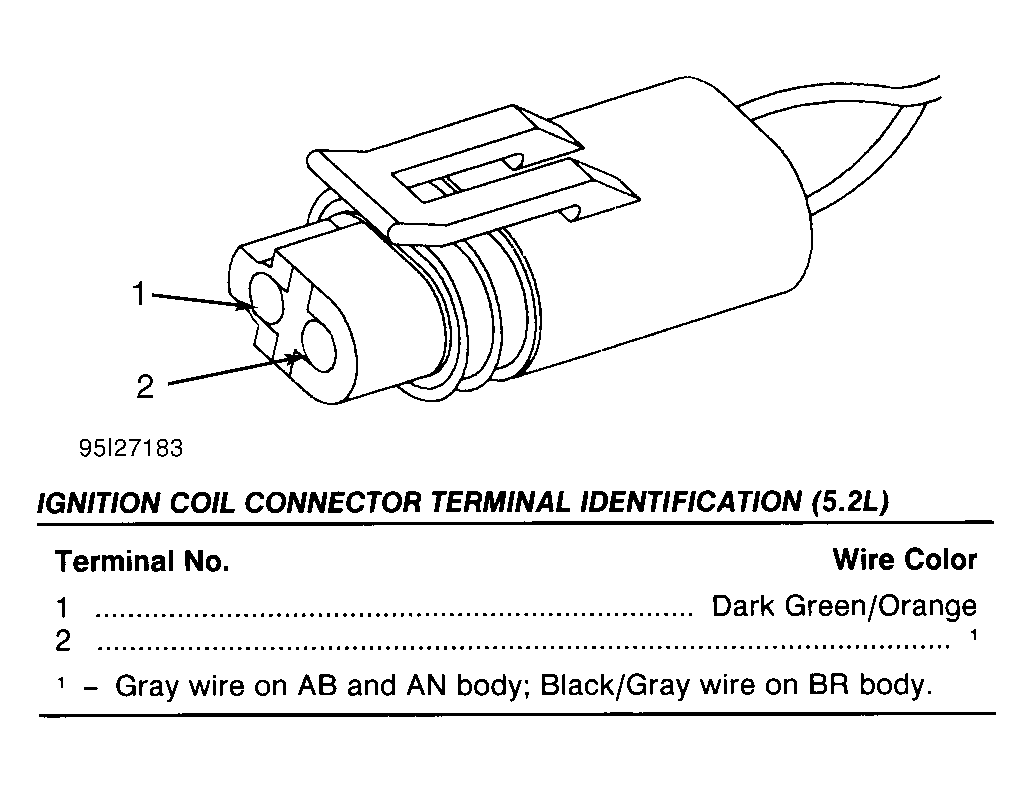

Fig 14: Identifying Ignition Coil Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

Fig 15: IAT Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

LOW PRESSURE FUEL SHUTOFF SOLENOID CONNECTOR TERMINAL ID

Terminal No.	Wire Color
1	Dark Green/Orange
2	Black/Tan

Fig 16: Low Pressure Fuel Shutoff Sol. Conn. Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 17: MAP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 18: P/N Position Switch Conn. Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 19: PCM Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 20: OD Solenoid/TCC Solenoid Conn. Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

O2S CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color
1	Black/Light Blue
2	Black/Light Green
3	Black/Tan
4	Dark Green/Orange

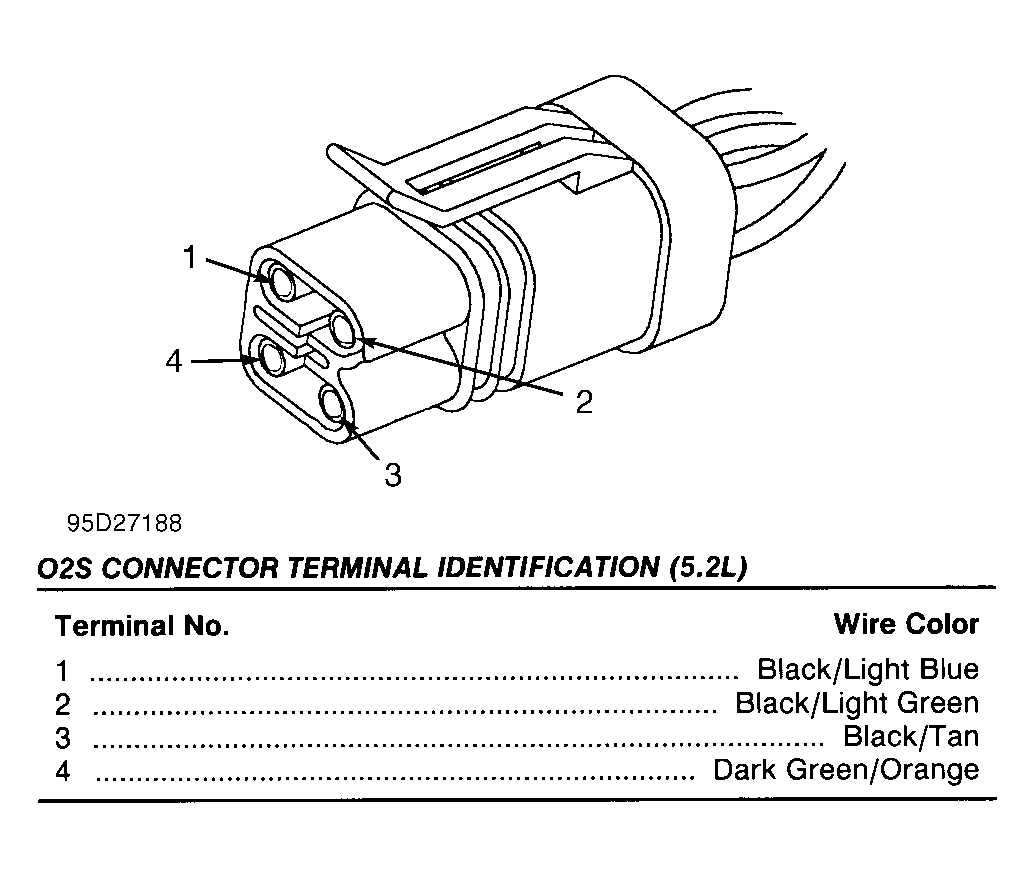

Fig 21: Oxygen Sensor (O2S) Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

TP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color
1	Black/Light Blue
2	Orange/Dark Blue
3	Violet/White

Fig 22: TP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 23: VSS Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
