Diagnostic Aids

Code will set when an unknown gear ratio is detected for any gear but 4th. Check all connections, especially those at the transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in appropriate TESTS W/O CODES article in this section. See below. Compare scan tester gear ratio reading to specifications in GEAR RATIO SPECIFICATIONS .

GEAR RATIO SPECIFICATIONS

Gear Less Than More Than
1st 12.38 22.63
2nd 11.43 21.58
3rd 1.95 21.05
Reverse 11.97 22.17

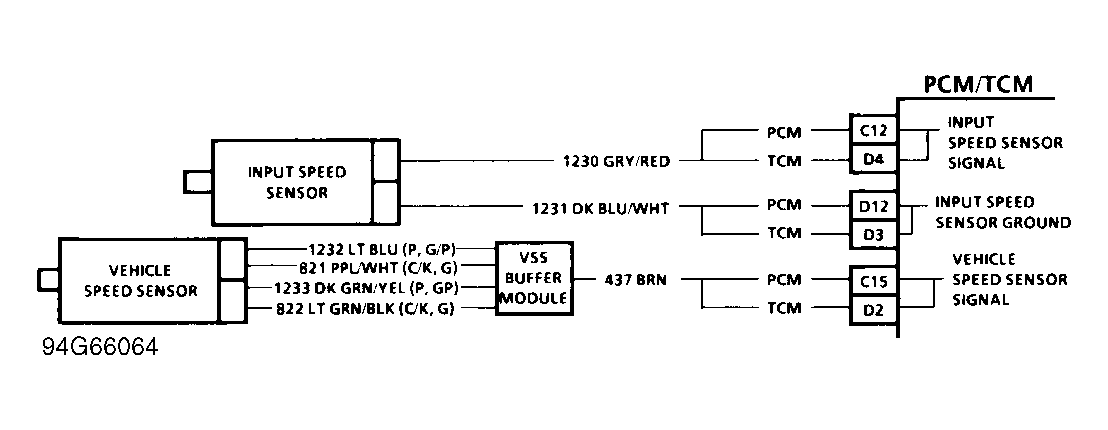

Fig 1: Code 85 Schematic (4L80-E Diesel) Undefined Gear Ratio
G94G66064

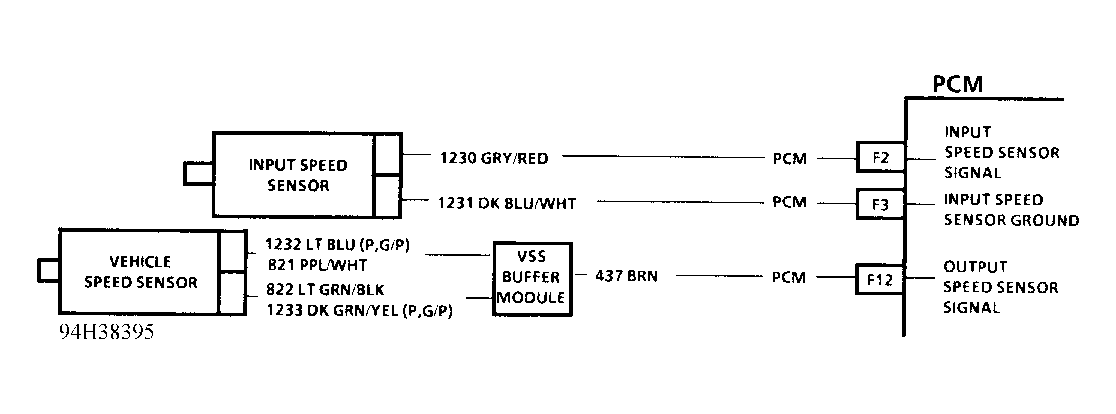

Fig 2: Code 85 Schematic (4L80-E Gasoline) Undefined Gear Ratio
G94H38395
Fig 3: Code 85 Flow Chart (4L80-E Gasoline) Undefined Gear Ratio
G94H66065
