Transmitter Functions Do Not Operate
Transmitter Functions Do Not Operate

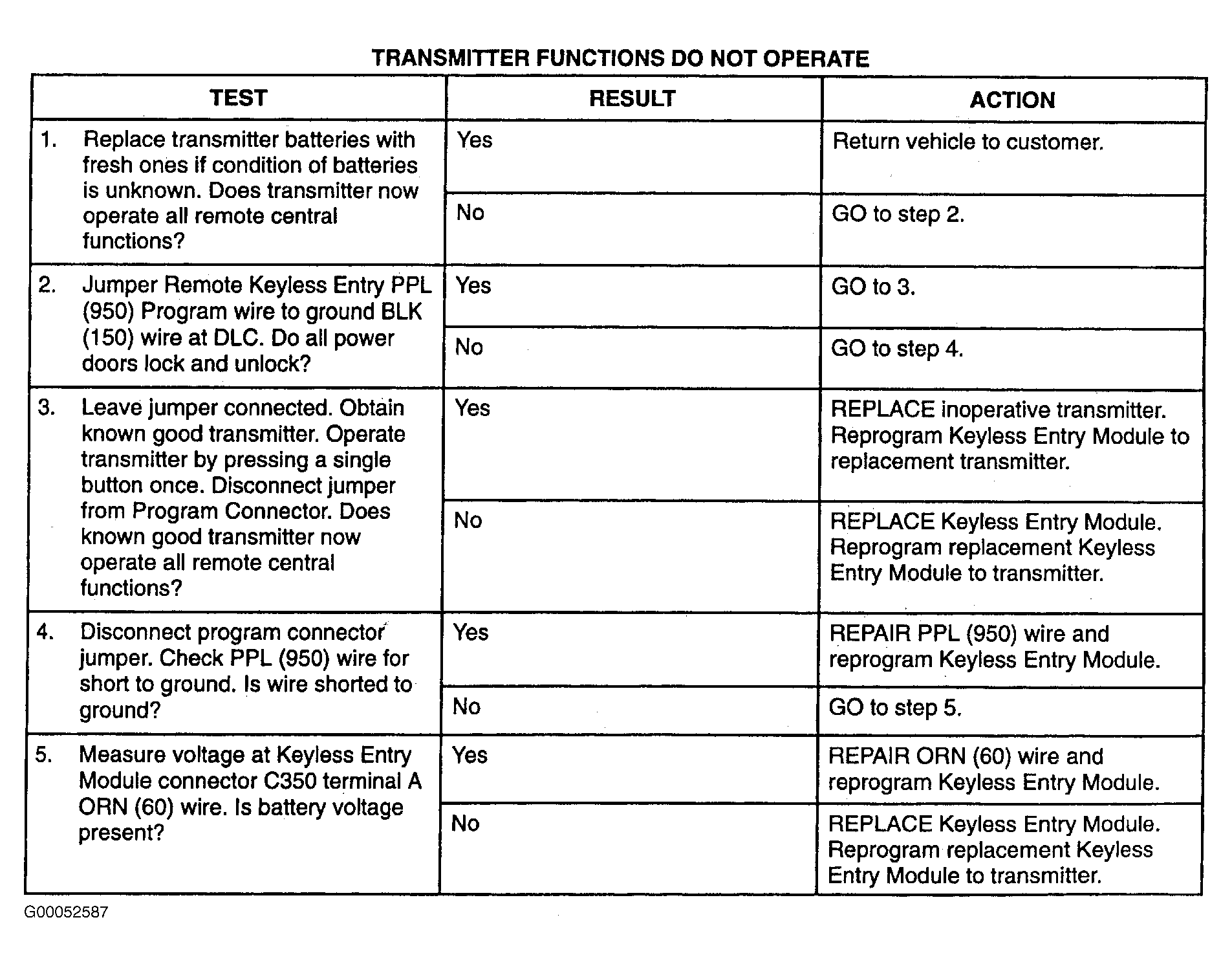

Fig 1: Transmitter Functions Do Not Operate - Steps 1-5
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
