Home >> GMC >> 1993 >> Jimmy Typhoon >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Diagnosis >> Symptom Diagnosis >> Keyless Entry Does Not Operate

Keyless Entry Does Not Operate

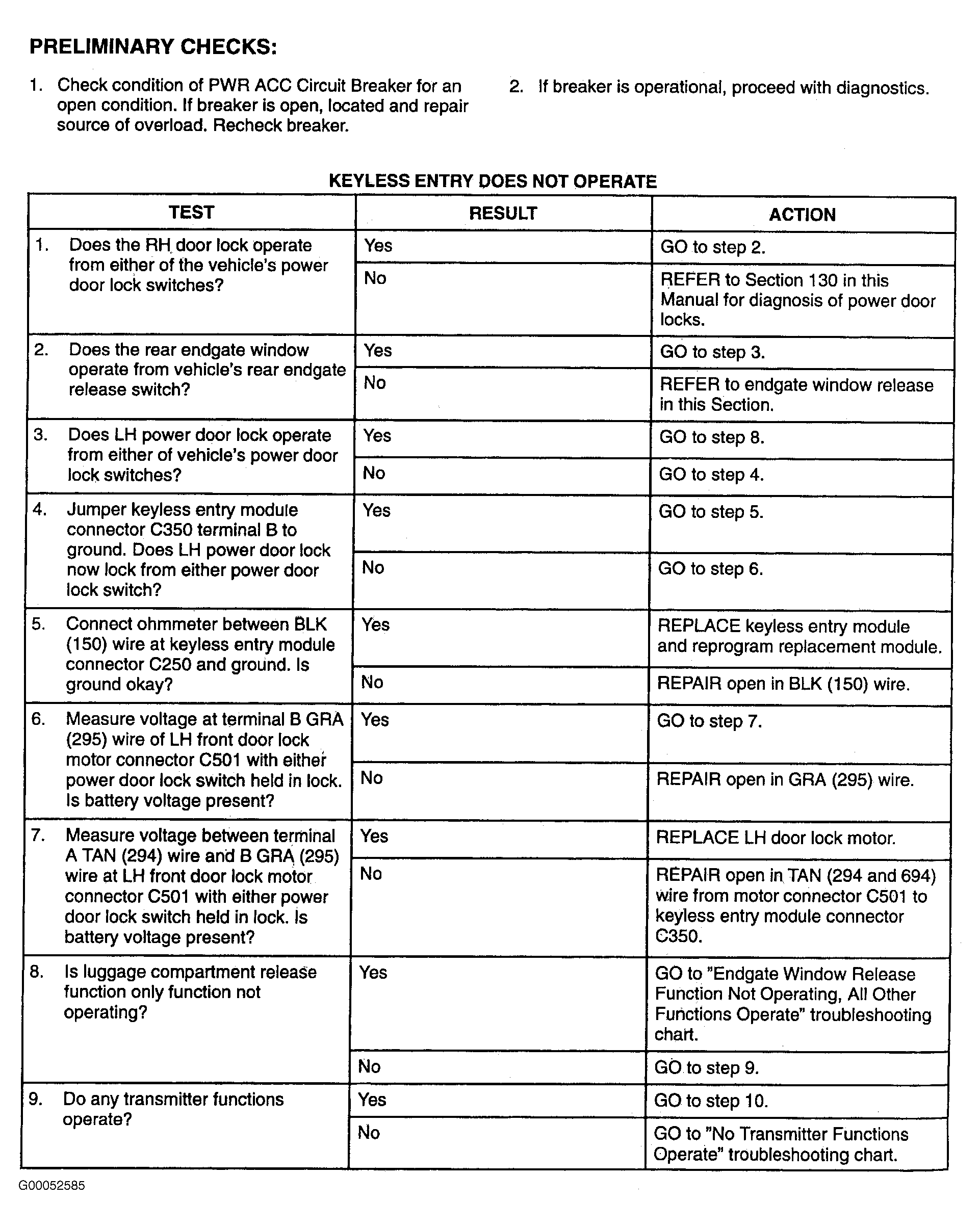

Fig 1: Keyless Entry Does Not Operate - Steps 1-9 (1 Of 2)
G00052585Courtesy of GENERAL MOTORS CORP.

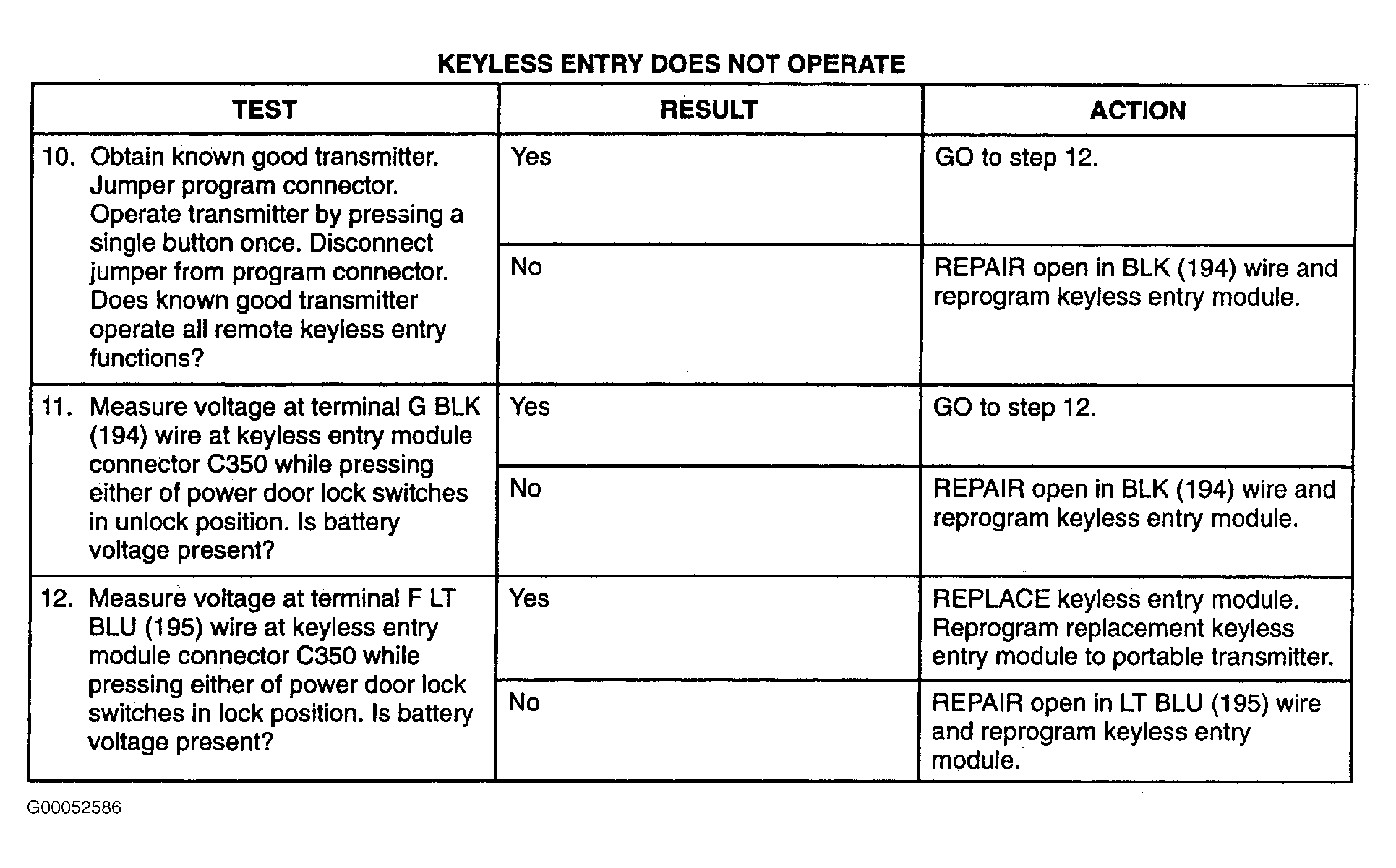

Fig 2: Keyless Entry Does Not Operate - Steps 10-12 (2 Of 2)
G00052586Courtesy of GENERAL MOTORS CORP.
