B: Cruise Control Does Not Operate

For test procedure, see Fig 1 and Fig 2 .

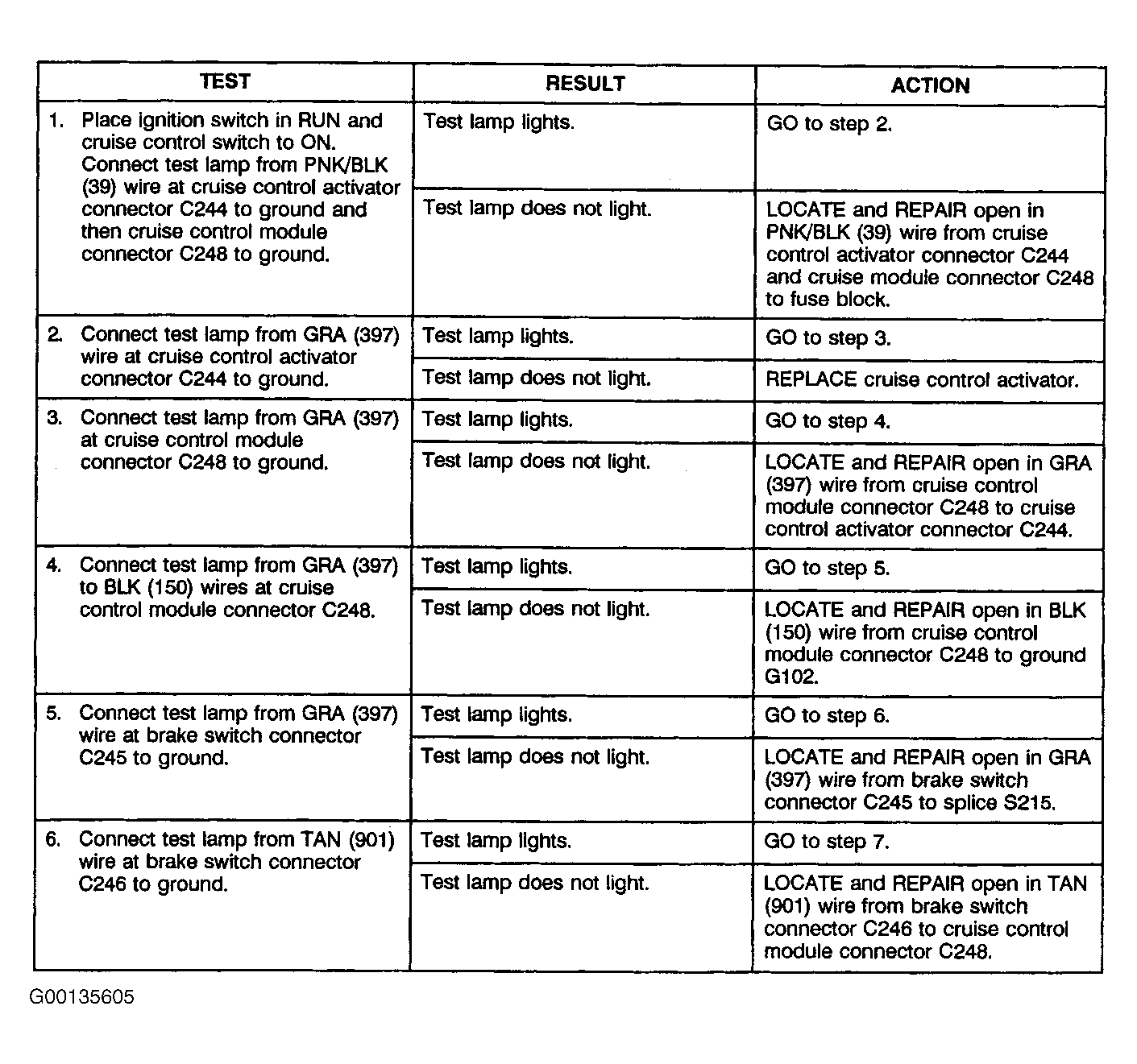

Fig 1: Test B: Cruise Control Does Not Operate (1 Of 2)
G00135605Courtesy of GENERAL MOTORS CORP.

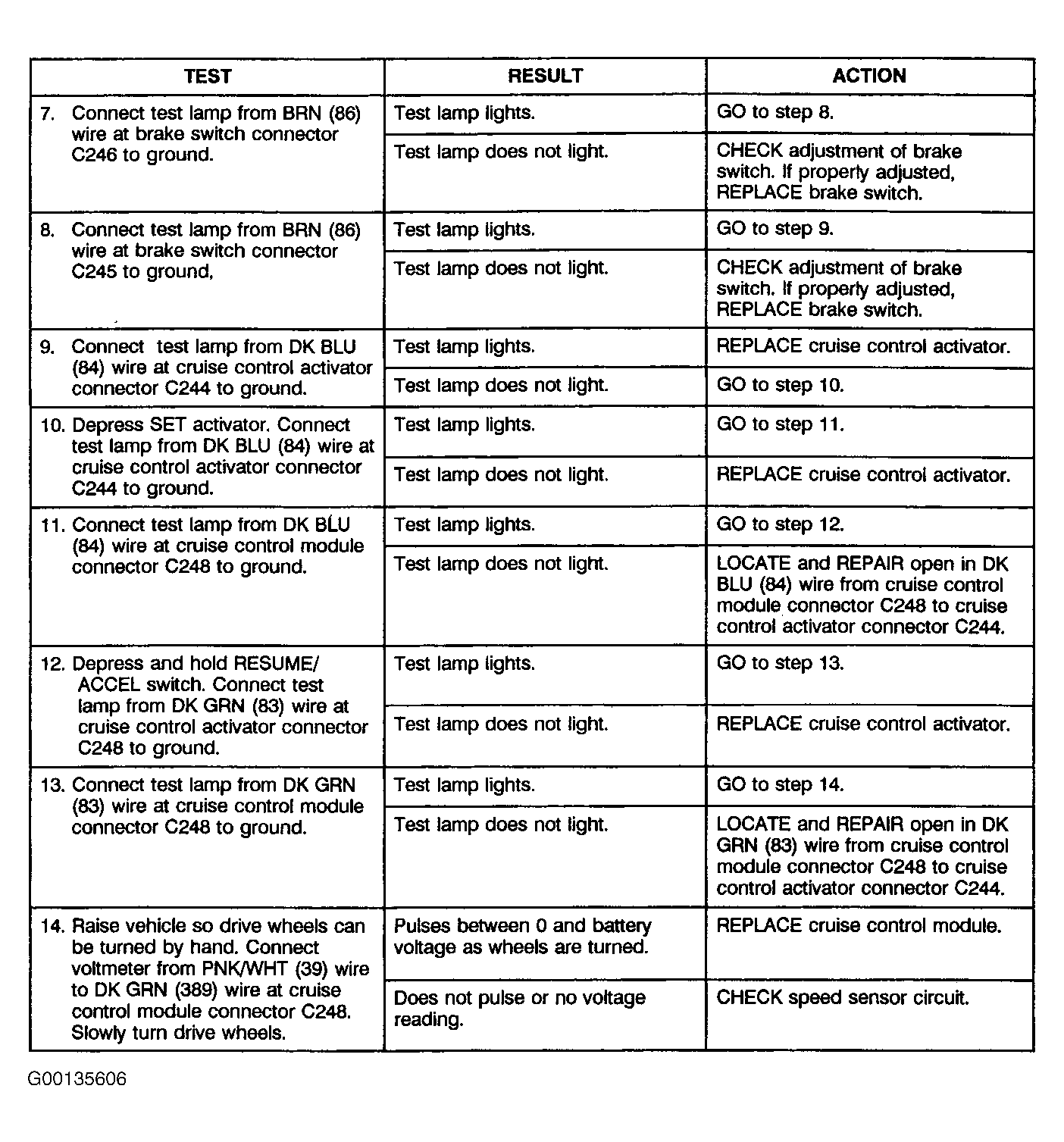

Fig 2: Test B: Cruise Control Does Not Operate (2 Of 2)
G00135606Courtesy of GENERAL MOTORS CORP.
