Home >> GMC >> 1992 >> Magnavan 6.2 J >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test E: Right Power Window Only Operates From Driver's Side Window Switch

Test E: Right Power Window Only Operates From Driver's Side Window Switch

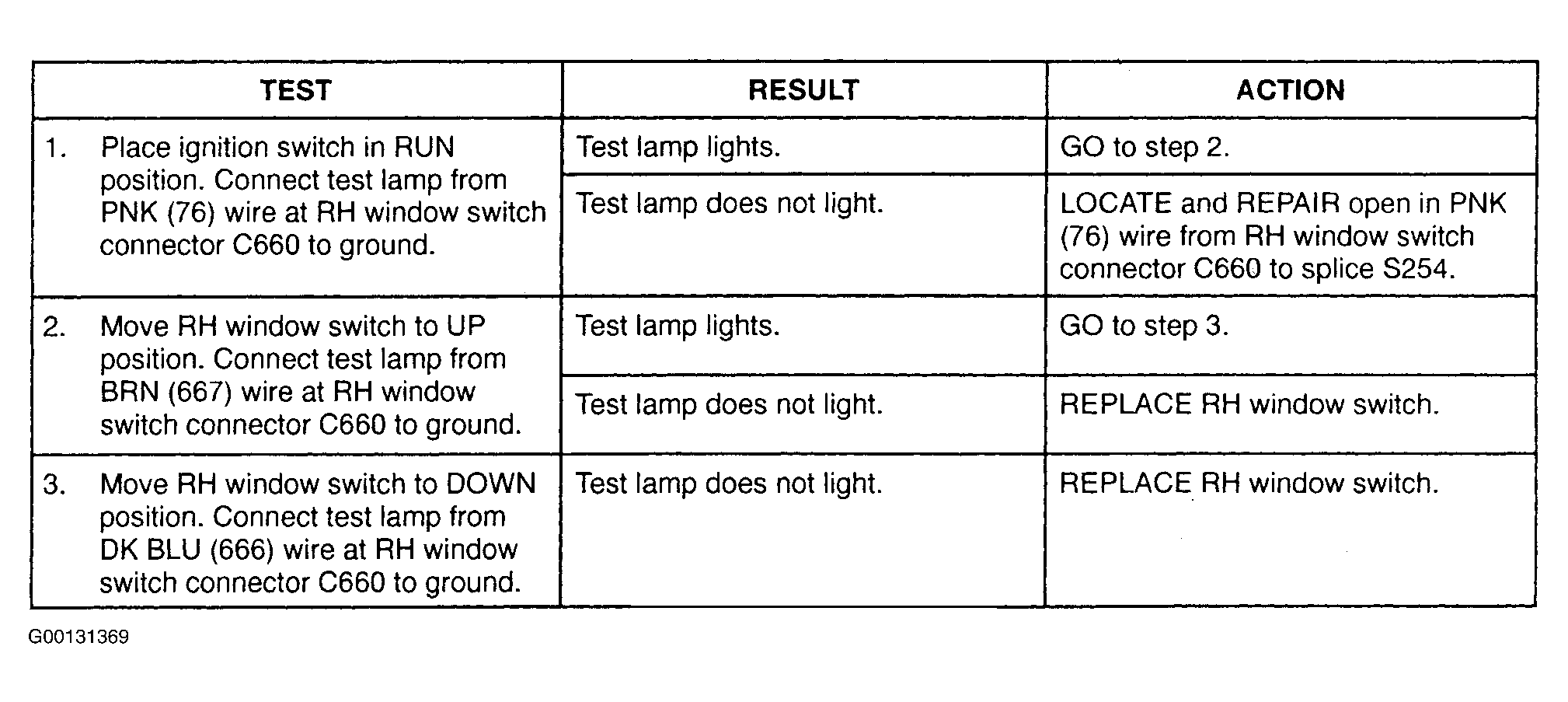

Fig 1: Right Power Window Only Operates From Driver's Side Window Switch

G00131369

Courtesy of GENERAL MOTORS CORP.
