Test C: Left Power Window Does Not Operate Or Only Goes In One Direction

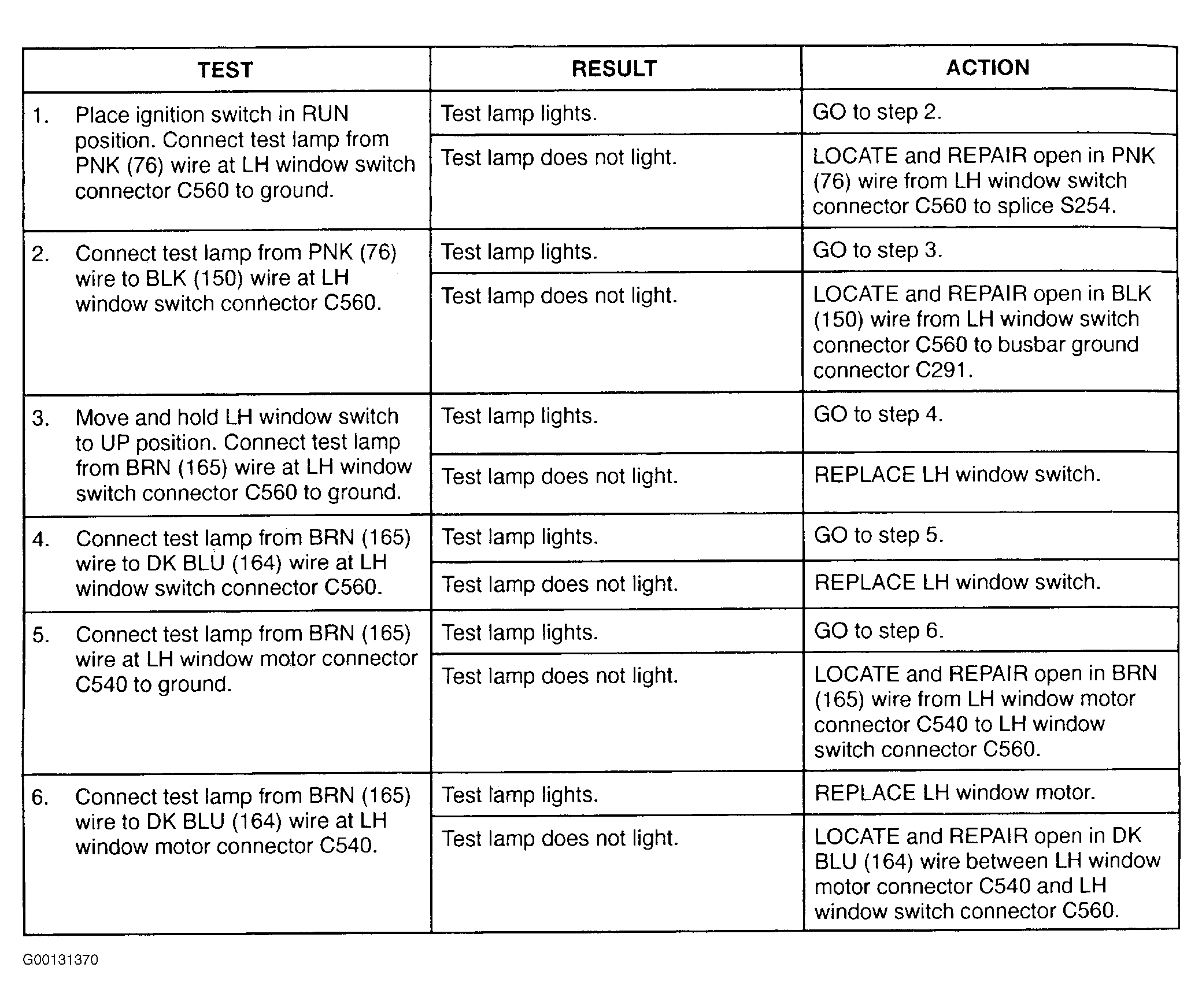

Fig 1: Left Power Window Does Not Operate Or Only Goes In One Direction

G00131370

Courtesy of GENERAL MOTORS CORP.
