Commercial Van

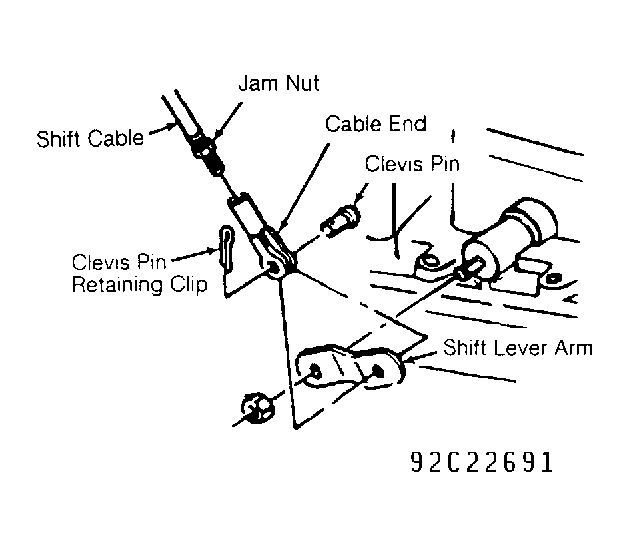

  1. Remove clevis pin retaining clip and clevis pin. See Figure. Move shift lever arm at transmission fully forward and then pull back 2 detents to Neutral position.
  2. Loosen jam nut and adjust cable end to align with shift lever arm at transmission. Reinstall clevis pin and clip. Check adjustment, engine should start in Park and Neutral only.
