Cruise Control System - Electric Motor Servo: Testing: MOTORHOME: Notes

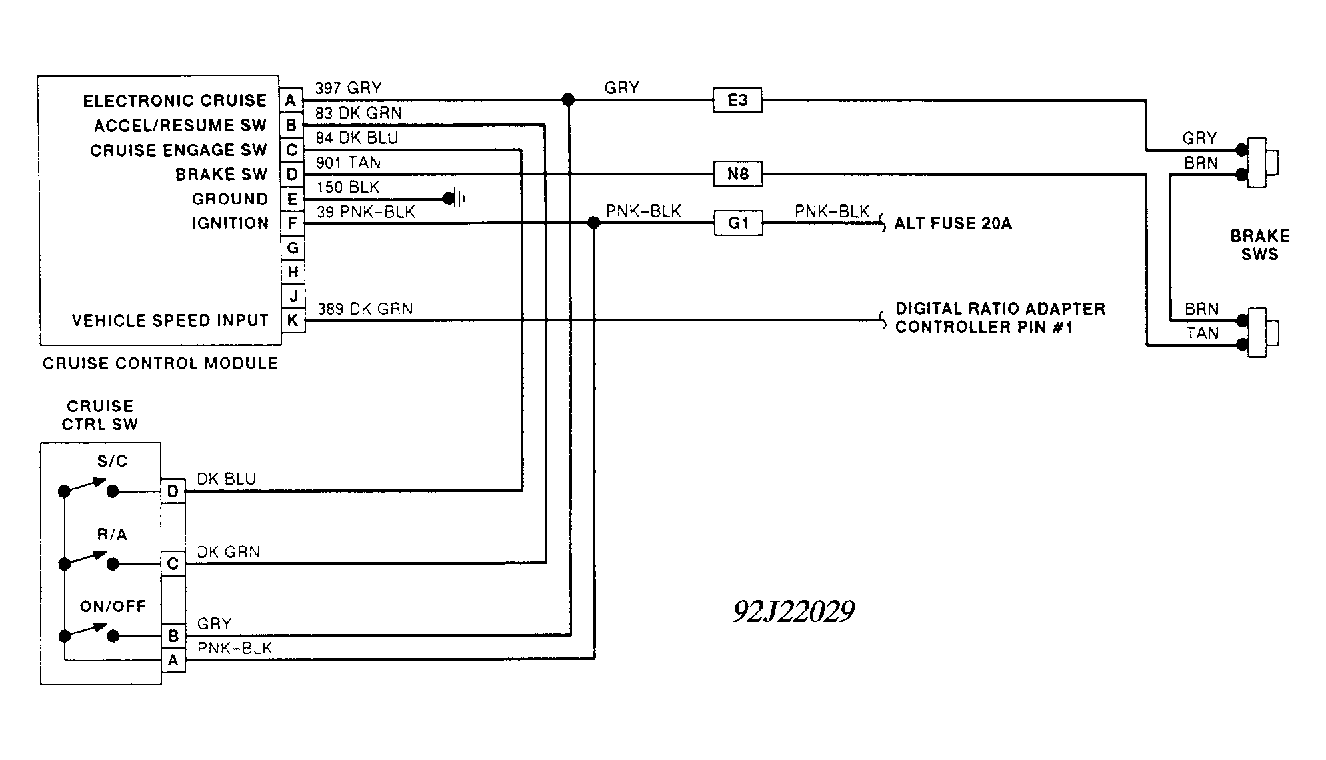

NOTE: For 1991 wiring diagram, see Figure. For 1992 wiring diagram, see appropriate chassis wiring diagram in WIRING DIAGRAMS.

NOTE: To distinguish between brake release switches No. 1 and 2, look at color of wires that terminate at each switch. Gray and Brown wires terminate at switch No. 1. Tan and Brown wires terminate at switch No. 2.
