Diagnostic Aids

Check for poor connections at PCM/TCM, especially at transmission pass-thru connector.

Fig 1: Force Motor Circuit Check Schematic

G91E13684

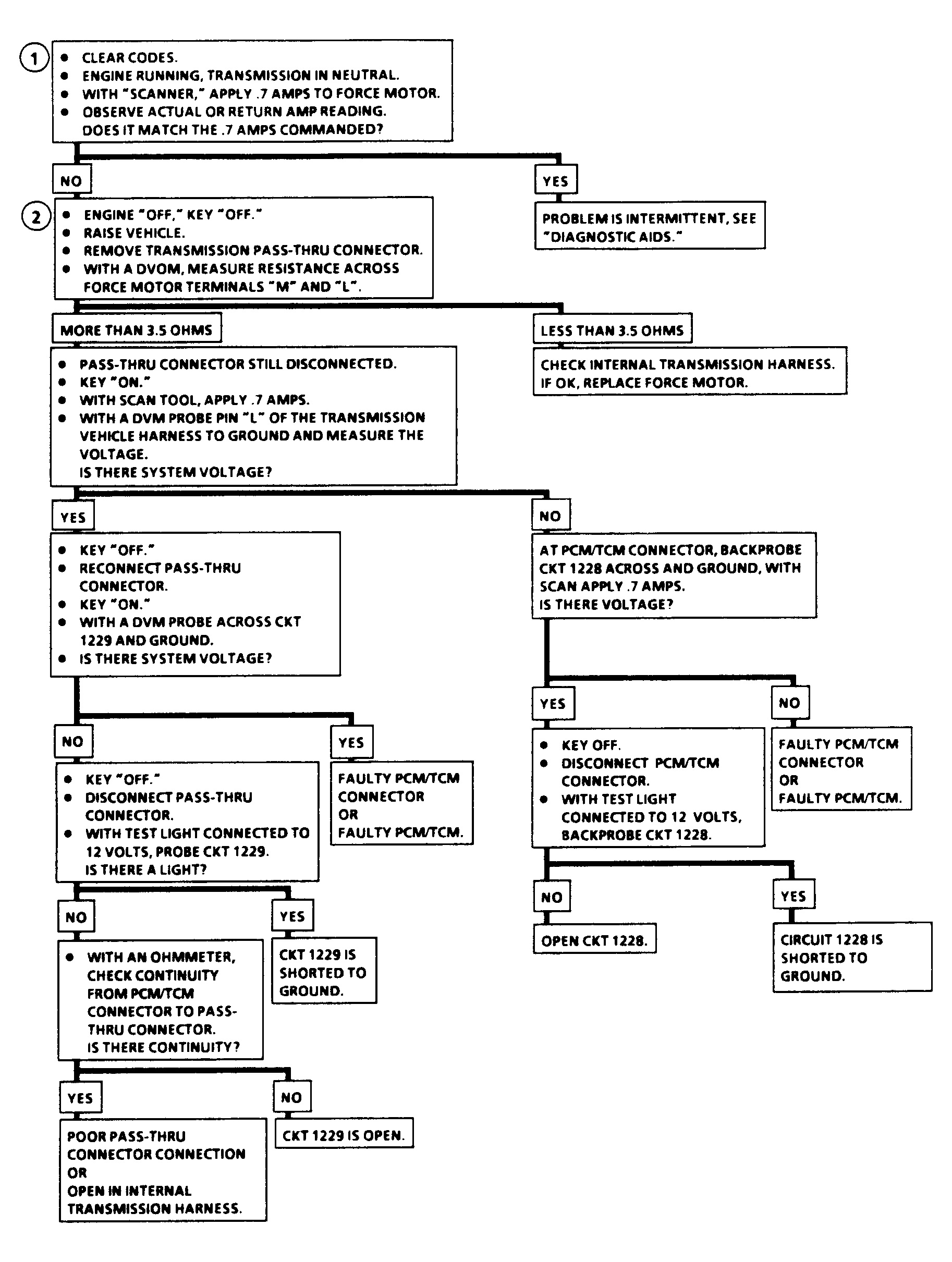

Fig 2: Force Motor Circuit Check Flow Chart

G91D13709
