A/C Compressor Relay Failure

Diagnose A/C system if shorted to ground. If relay is faulty, an idle problem may exist. See ROUGH, UNSTABLE, INCORRECT IDLE, STALLING in the CCC TESTS W/O CODES article in this section.

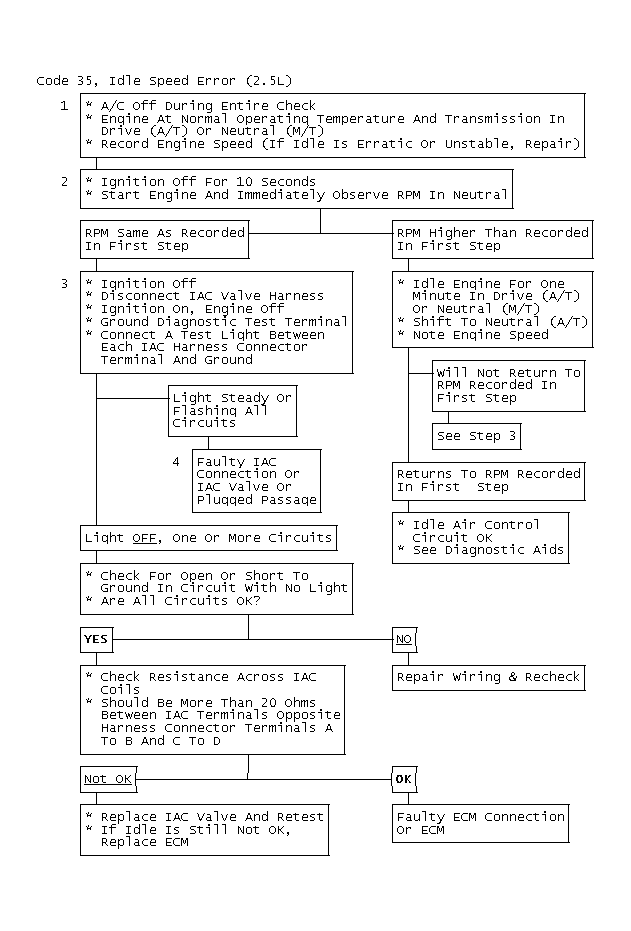

Fig 1: Code 35, Idle Speed Error (2.5L) Flow Chart & Schematic

Fig 2: Code 35, Idle Speed Error (2.5L)
