Diagnostic Aids

"SCAN" tool does not have any ability to help diagnose Code 42 problem.

See INTERMITTENT TROUBLE CODES in TROUBLE SHOOTING section.

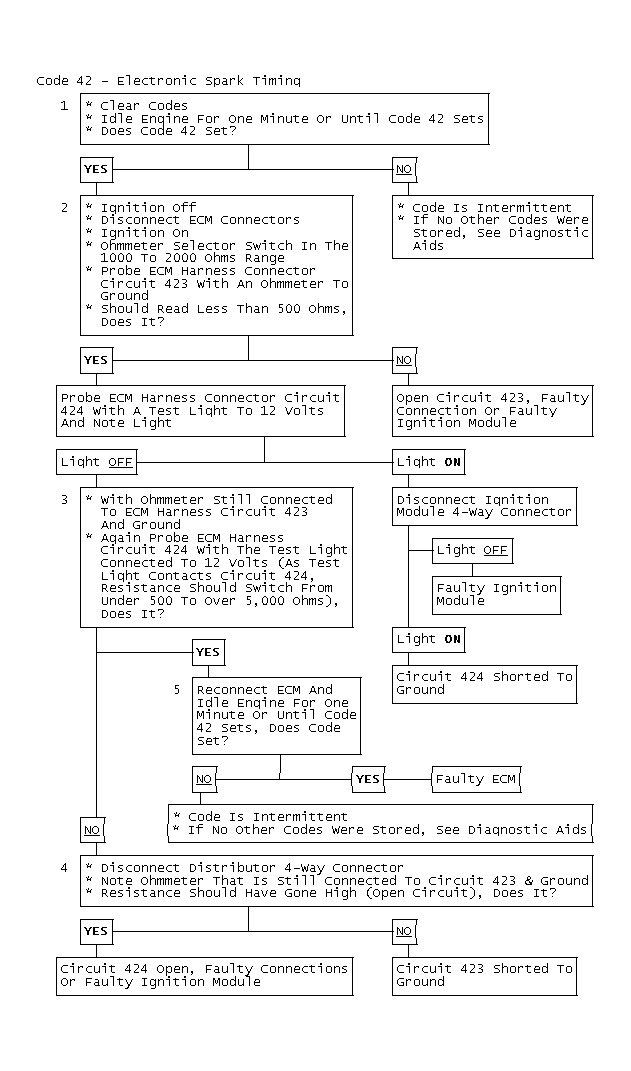

Fig 1: Code 42 - Electronic Spark Timing Flow Chart

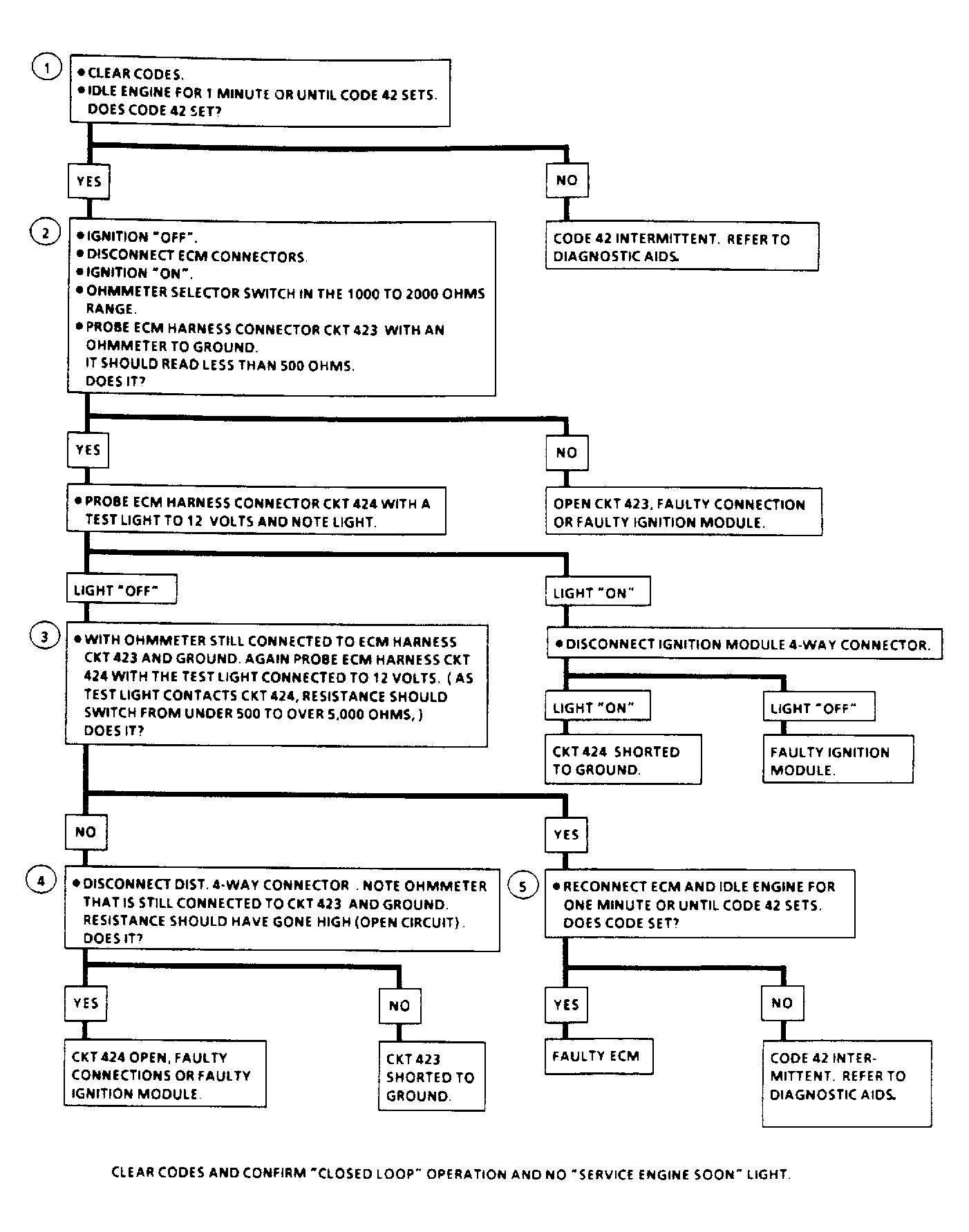

Fig 2: Code 42 - Electronic Spark Timing

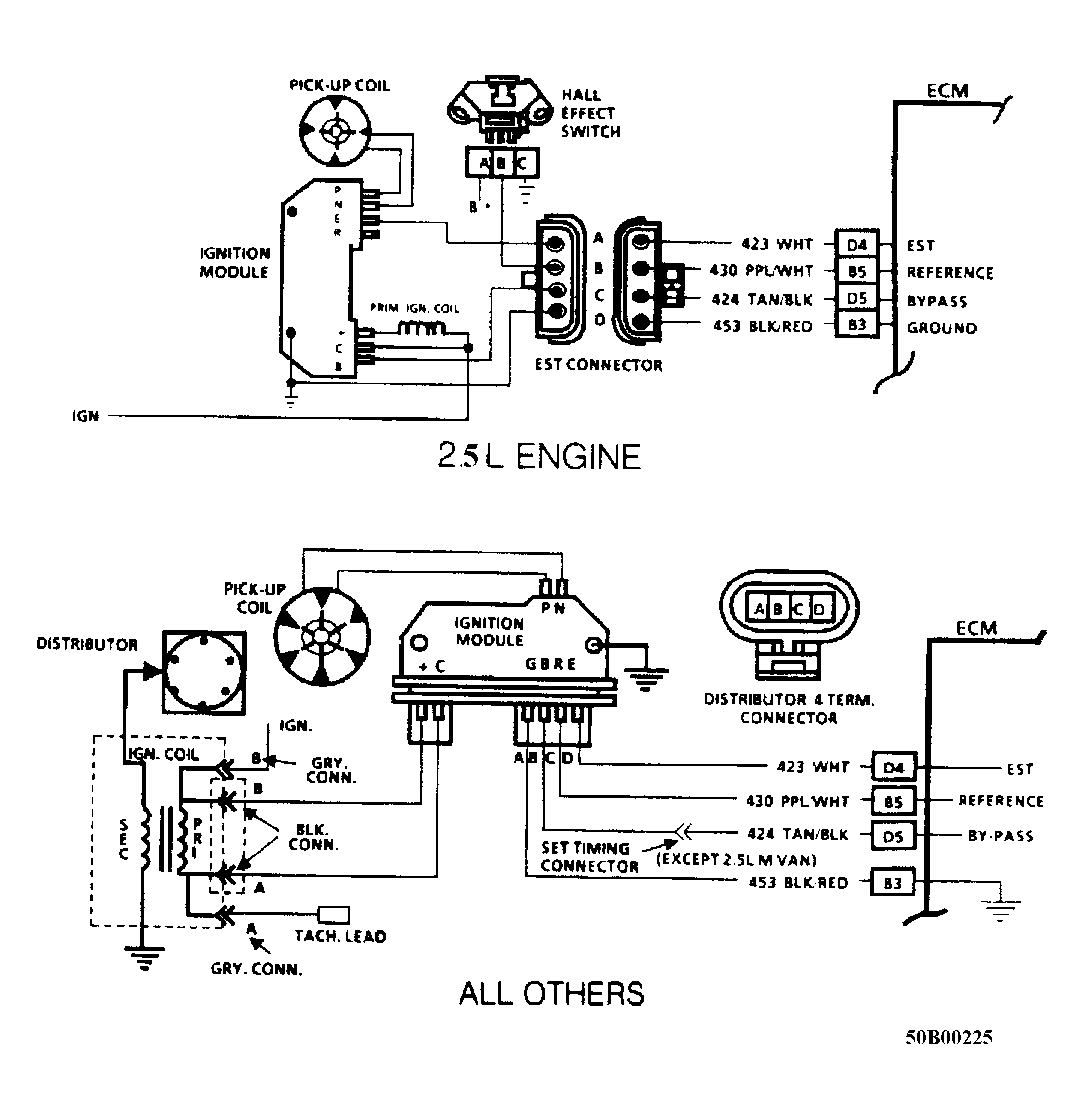

Fig 3: Code 42 - Electronic Spark Timing Schematic
