Front Servo: Inspection

Inspect servo pin, piston and oil seal ring for wear or damage. Check fit of servo pin in piston and in case bore. See Fig 1.

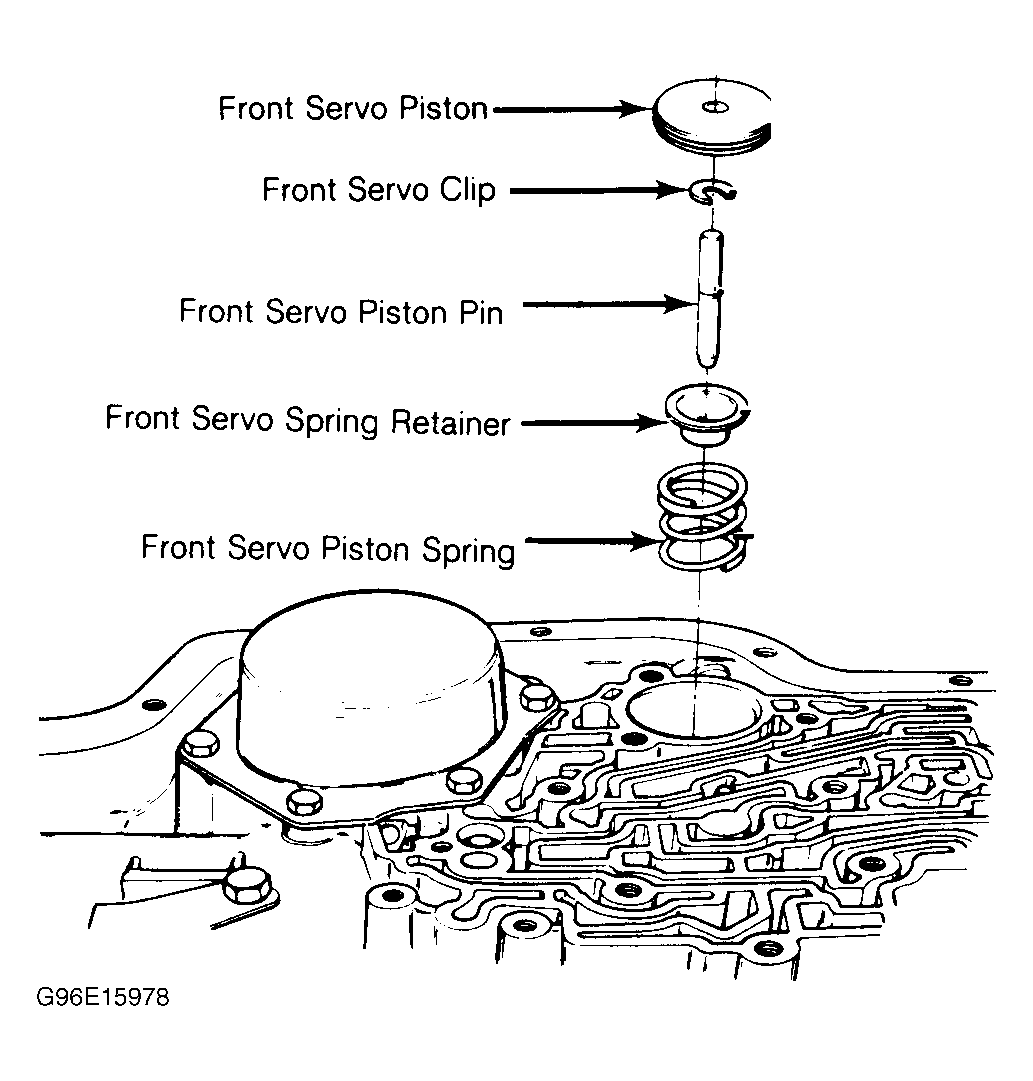

Fig 1: Exploded View of Front Servo Assembly

Courtesy of GENERAL MOTORS CORP.
