Chart C4A - IGN System (All W/ Integral Coil)

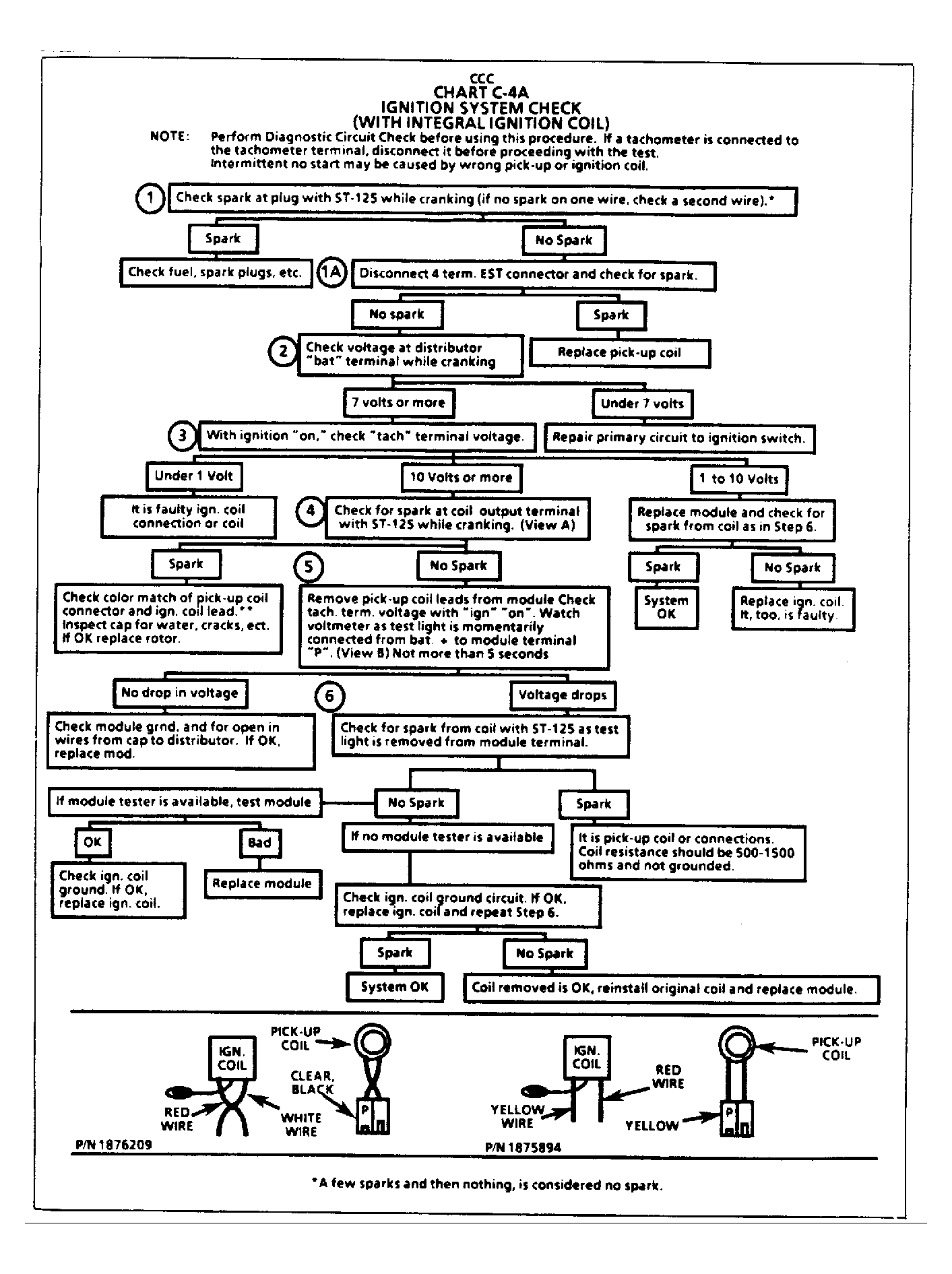

Fig 1: Flow Chart C4A - Ign. System (All W/ Integral Coil)

NOTE: Perform Diagnostic Circuit Check before using this procedure. If a tachometer is connected to the tachometer terminal, disconnect it before proceeding with the test. Intermittent no start may be caused by wrong pick-up or ignition coil.

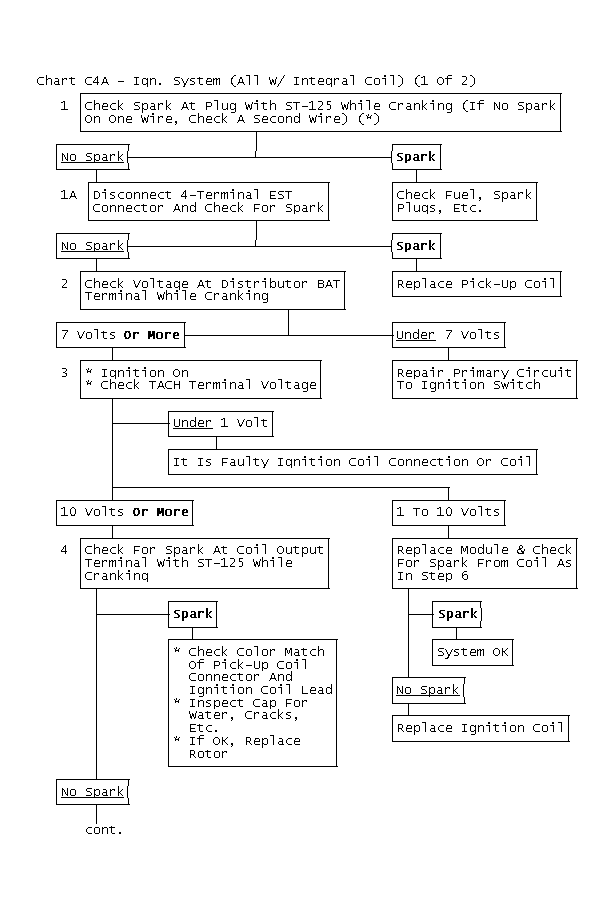

Fig 2: Flow Chart C4A - Ign. System (All W/ Integral Coil) (1 Of 2)

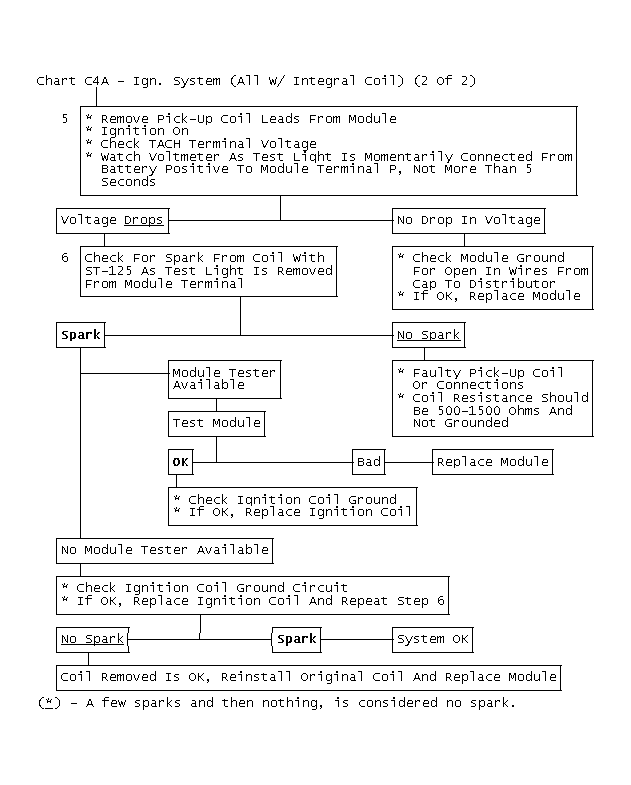

Fig 3: Flow Chart C4A - Ign. System (All W/ Integral Coil) (2 Of 2)
